Home › Chevrolet › 2022 › Corvette 2D Convertible › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Passive and Keyless Start

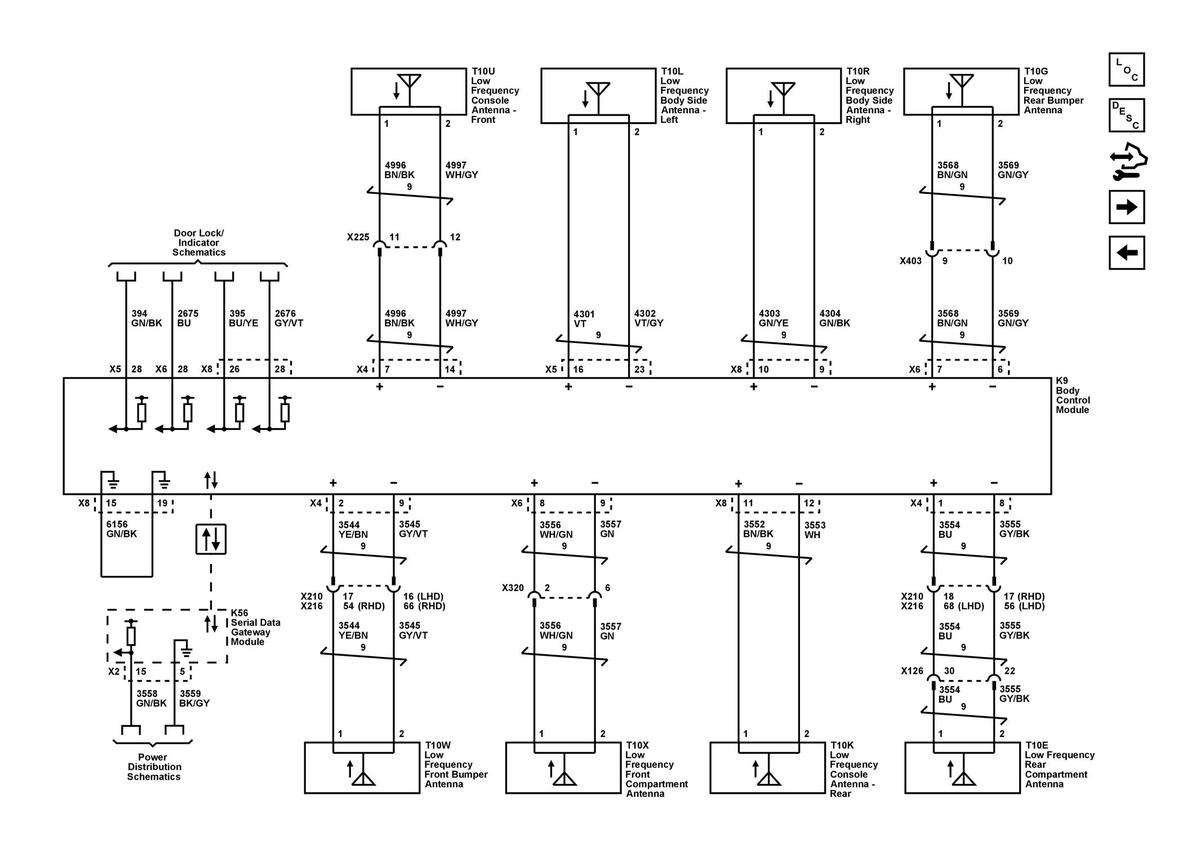

Keyless Entry - Passive and Keyless Start

GM5793150Courtesy of GENERAL MOTORS COMPANY
