Camshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

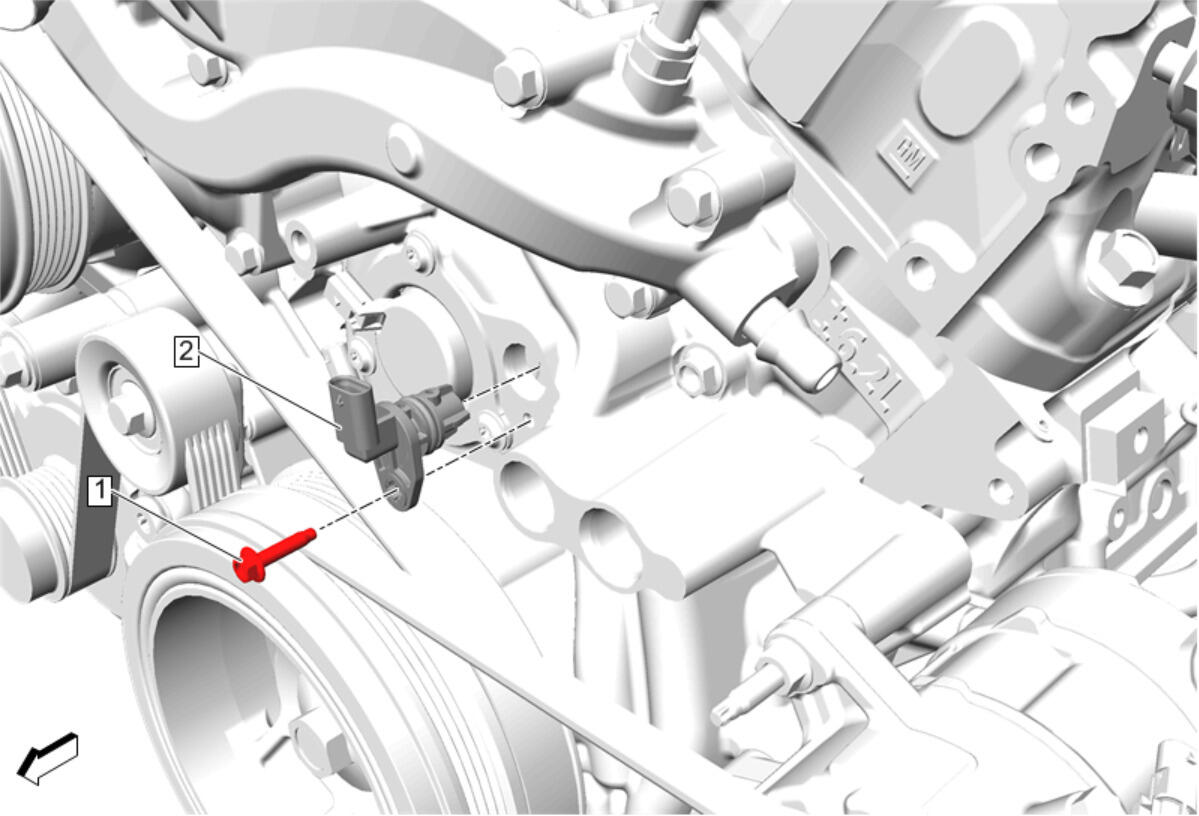

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Engine Oil Tank Replacement
1	Camshaft Position Sensor Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  8.5 N.m (75 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical connector.
