Crankshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

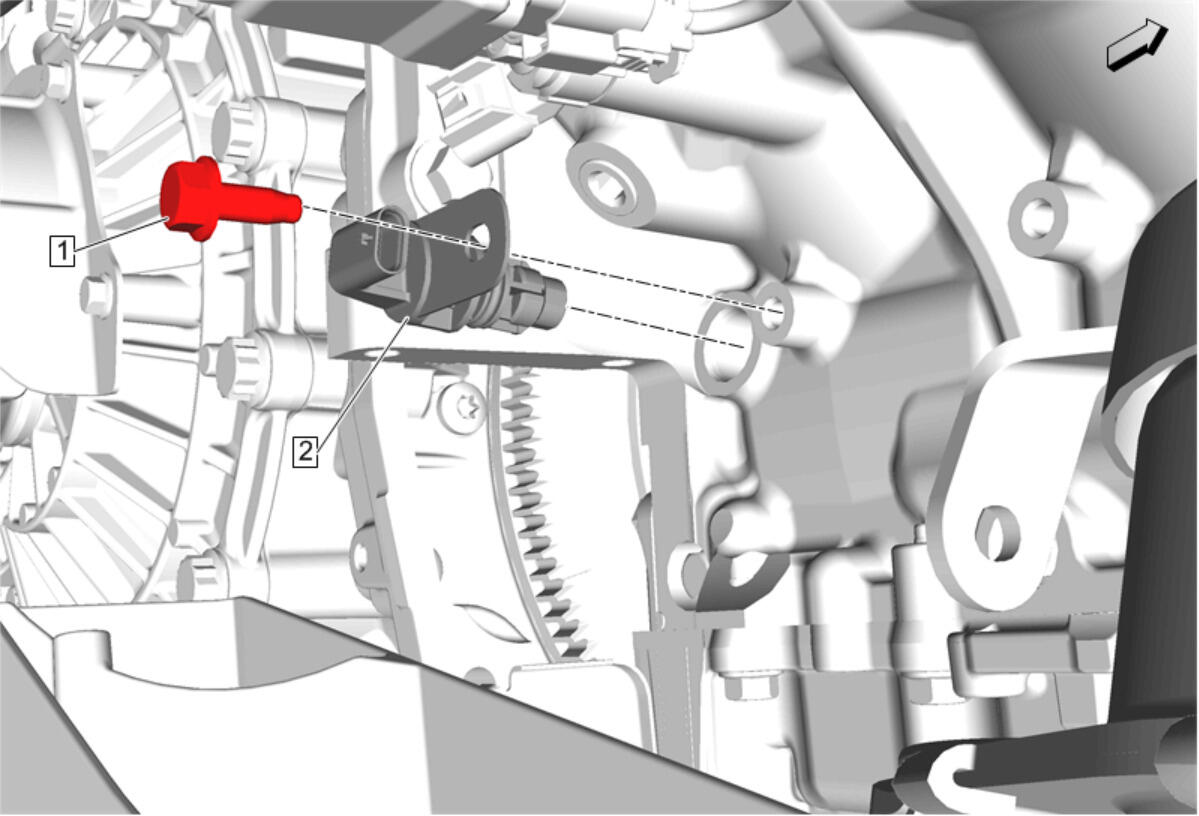

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Starter Replacement
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

Callout

Component Name

Preliminary Procedure
Starter Replacement

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
25 N.m (18 lb ft)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
