Fuel Tank Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

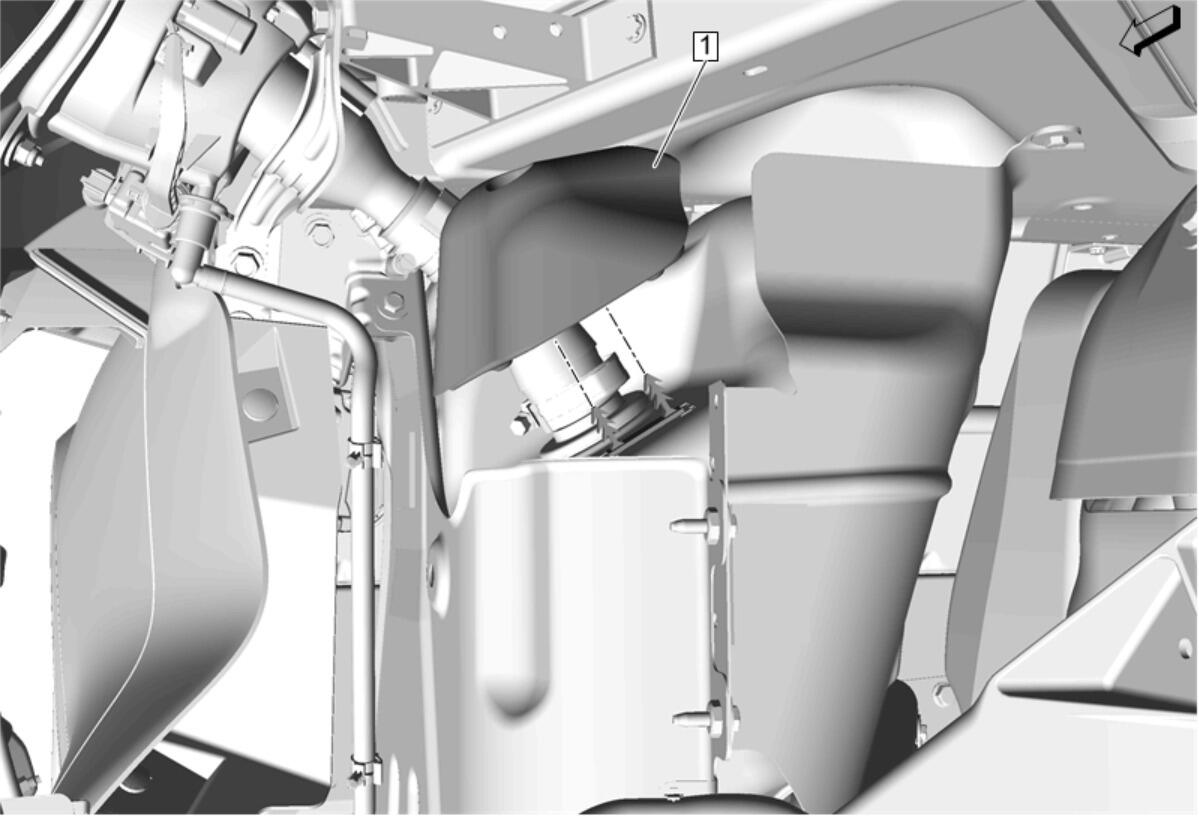

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Engine Cooling Fan Bracket Replacement - Left Side (without V09)
1	Fuel Tank Shield
