Installation Procedure

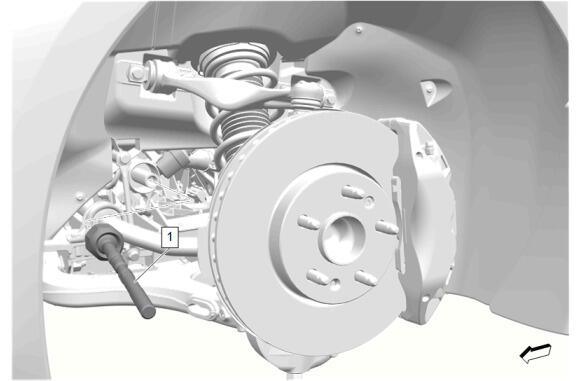

  1. GM5921775Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    There are flats on the electric belt drive rack and pinion steering gear to hold it from rotating.

    Use a suitable wrench to install the steering linkage inner tie rod (1).

    2. CAUTION:

    Refer to Fastener Caution .

  2. Steering Linkage Inner Tie Rod (1) - Tighten to 105 N.m (77 lb ft)
  3. GM5344109Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot (1) - Install - Steering Gear Boot Replacement

  4. GM5344106Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod (2) - Install - Steering Linkage Outer Tie Rod Replacement

  5. Measure and adjust the wheel alignment. Wheel Alignment Measurement
