Fastener Specifications

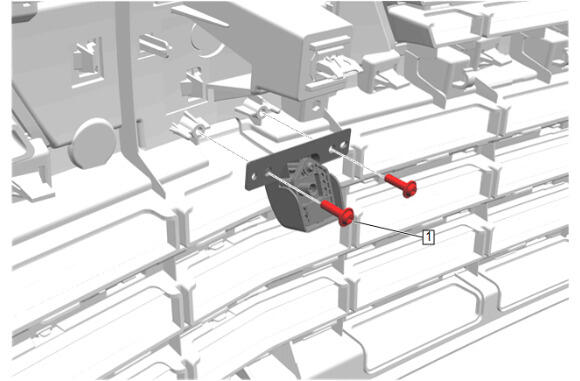

Front Camera
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Grille Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front View Driver Information Camera Replacement (with ZR2) , or Front View Driver Information Camera Replacement (without ZR2) |
Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Video Processing Module Nut [2x] | - | - | 9 N.m (80 lb in) | Video Processing Module Replacement (Crew Cab, Double Cab) |

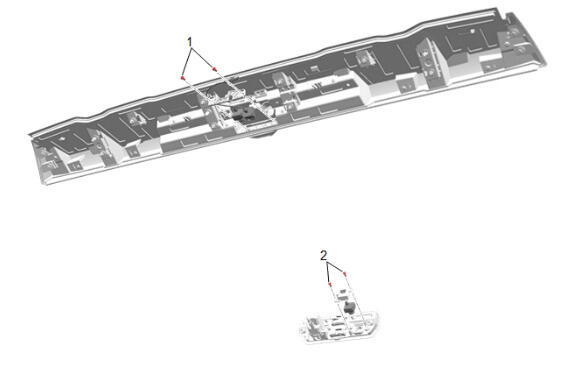

Rearview Cameras
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Mount Stop Lamp Camera Bracket Bolt [2x] | - | - | 2 N.m (18 lb in) | Auxiliary Rearview Camera Replacement |
| Video Display Inside Rearview Mirror Camera Replacement | |||||
| 2 | Rearview Driver Information Camera Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rearview Driver Information Camera Replacement (Without Step) , or Rearview Driver Information Camera Replacement (With step) |

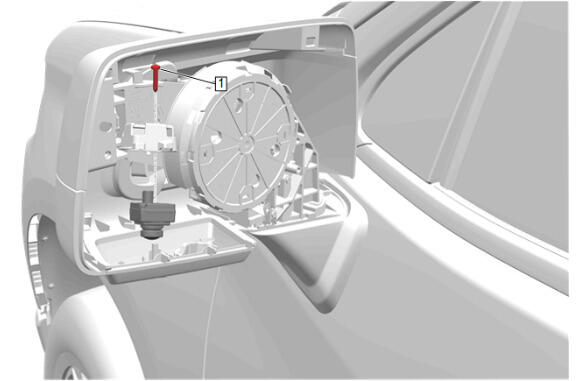

Side View Camera with DEZ and UVS
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side View Driver Information Camera Bracket Bolt | - | - | 1.7 N.m (15 lb in) | Side View Driver Information Camera Replacement |
Side View Camera with DPO
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Side View Driver Information Camera Bracket Bolt [2x] | - | - | 1.7 N.m (15 lb in) | Side View Driver Information Camera Replacement |
