Installation Procedure

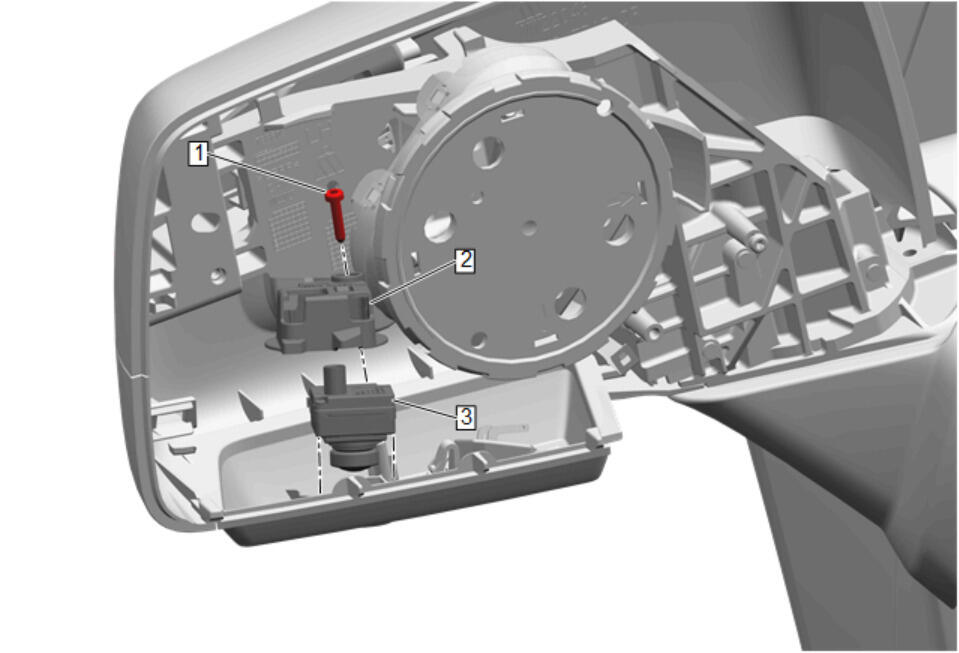

Side View Driver Information Camera (2) - Install
- Side View Driver Information Camera Bracket (2) - Install
- Side View Driver Information Camera Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector.

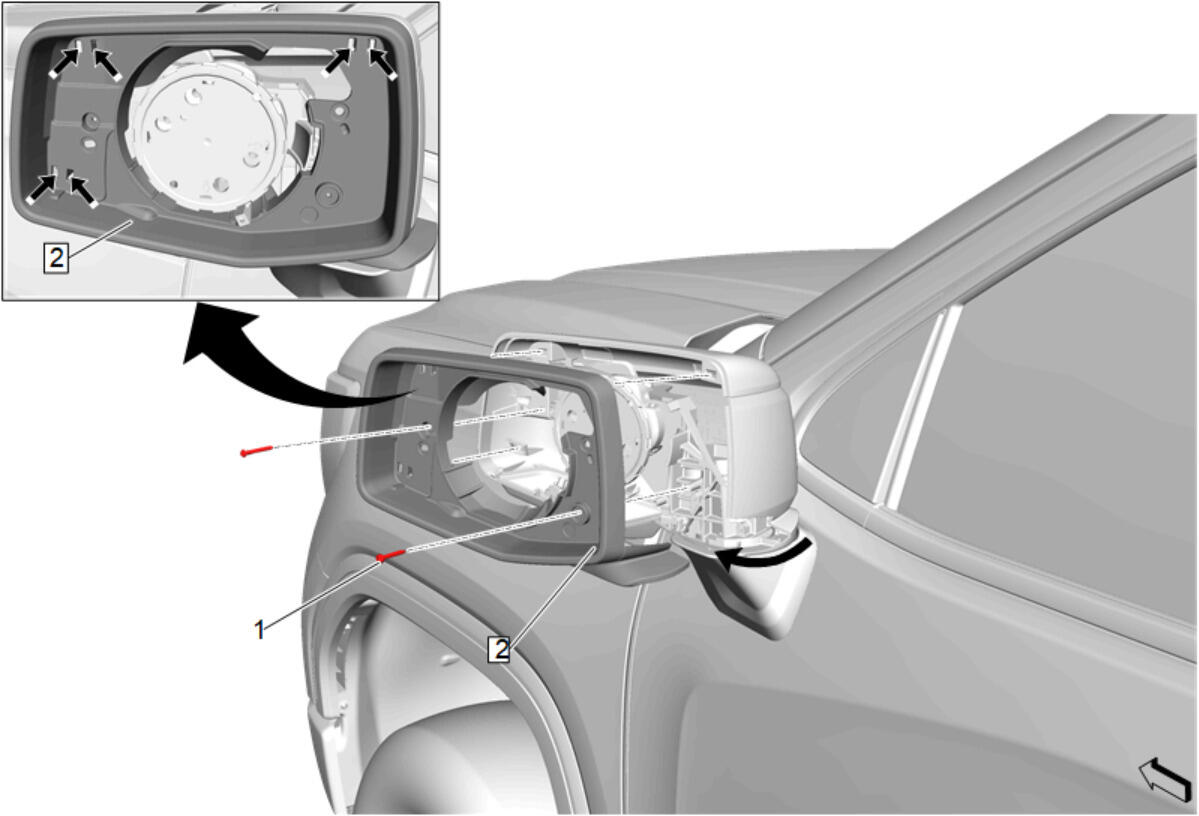

Outside Rearview Mirror Housing Bezel (2) - Install
- Secure the retaining tabs.
- Outside Rearview Mirror Housing Bezel Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Rotate the outside rearview mirror to the normal operating position.
Connect the electrical connectors, if equipped.

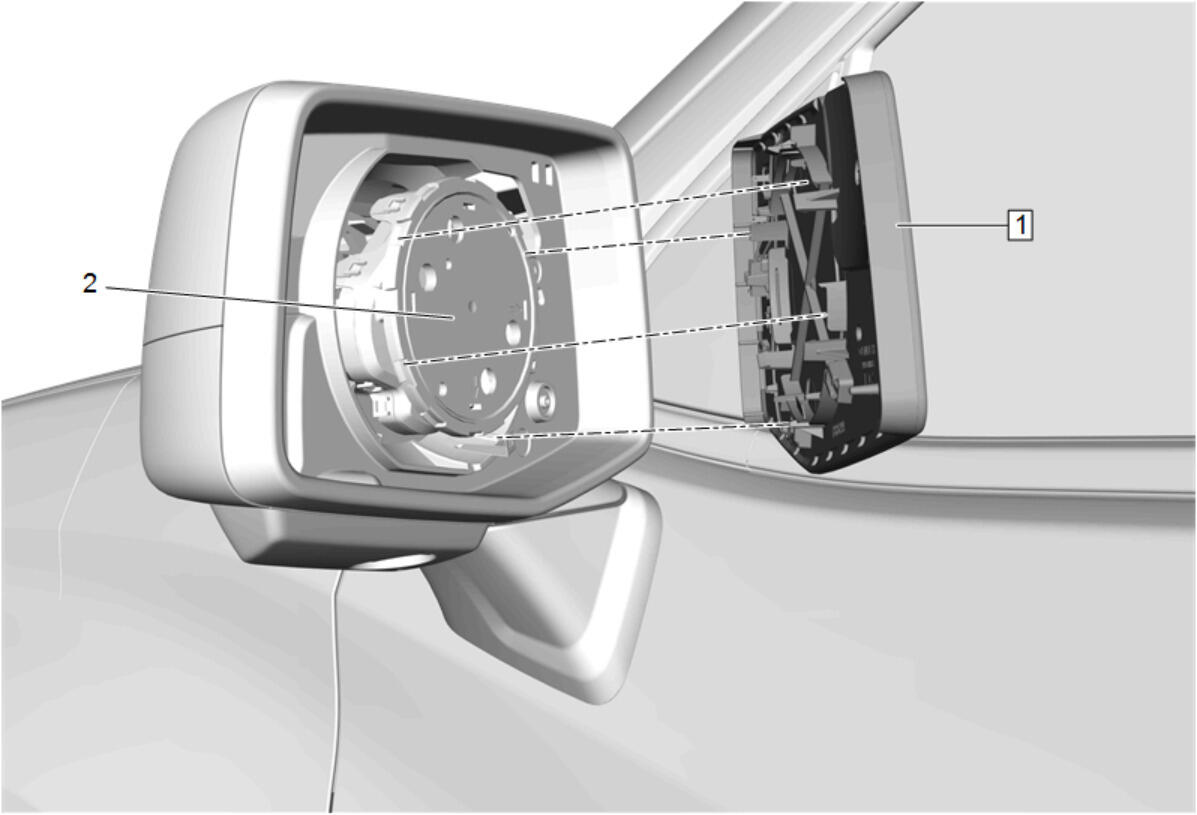

- Place the outside rearview mirror glass (1) retainers in line with the outside rearview mirror inner actuator (2).
- Place one hand on the back of the mirror housing, using the flat palm of the other hand press inward locking the outside rearview mirror glass (1) retainers to the outside rearview mirror inner actuator (2).

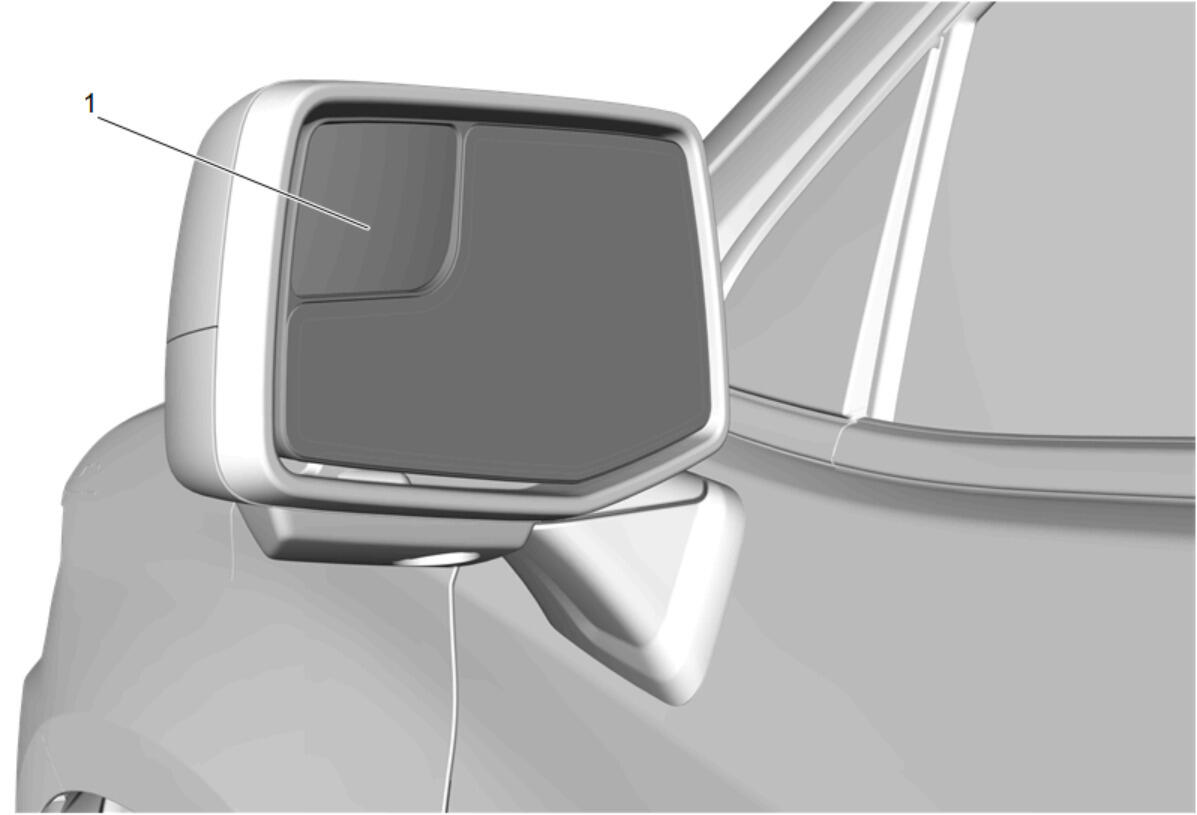

Remove the masking tape from the outside rearview mirror glass (1).
- Inspect the outside rearview mirror for proper operation.
- Perform the camera calibration procedure. Video Processing Control Module Calibration
CAUTION:
Refer to Fastener Caution .
