Installation Procedure
Rear Gate Module (2) - Install
- Latch Control Module Bracket Bolt (1) - Remove [3x] - Fastener Specifications
- Connect the electrical connector.

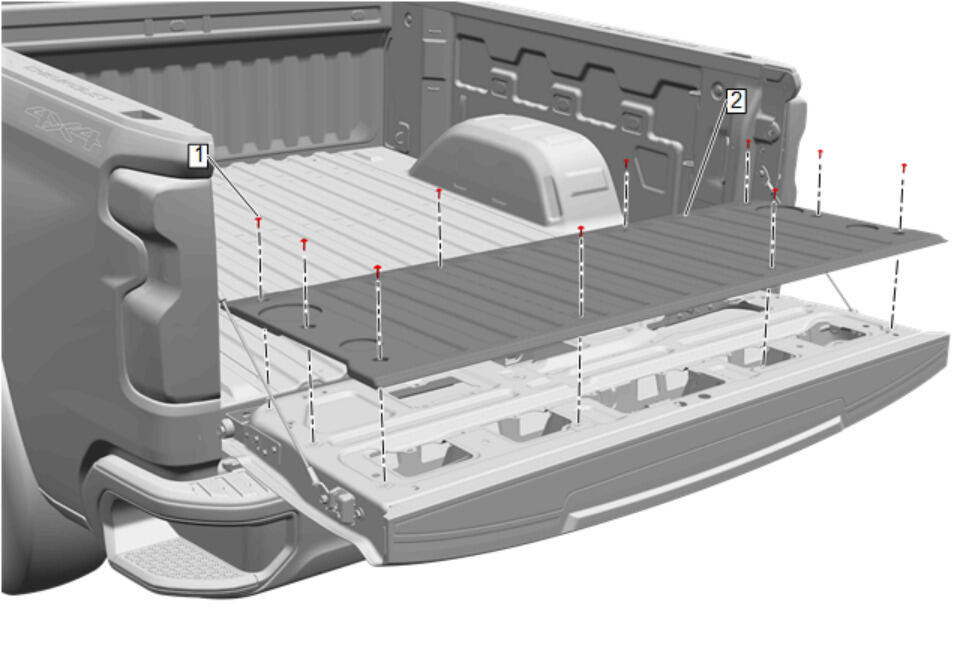

Pickup Box Endgate Access Hole Cover Panel (2) - Install
- Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Install and tighten [10x] - Fastener Specifications
- Close The Endgate
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
