Installation Procedure

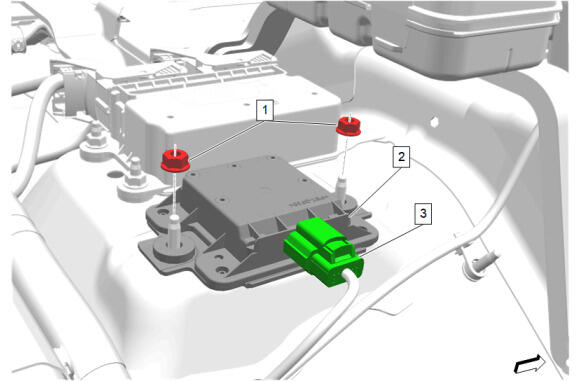

  1. GM5999653Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamic Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connectors. (3)

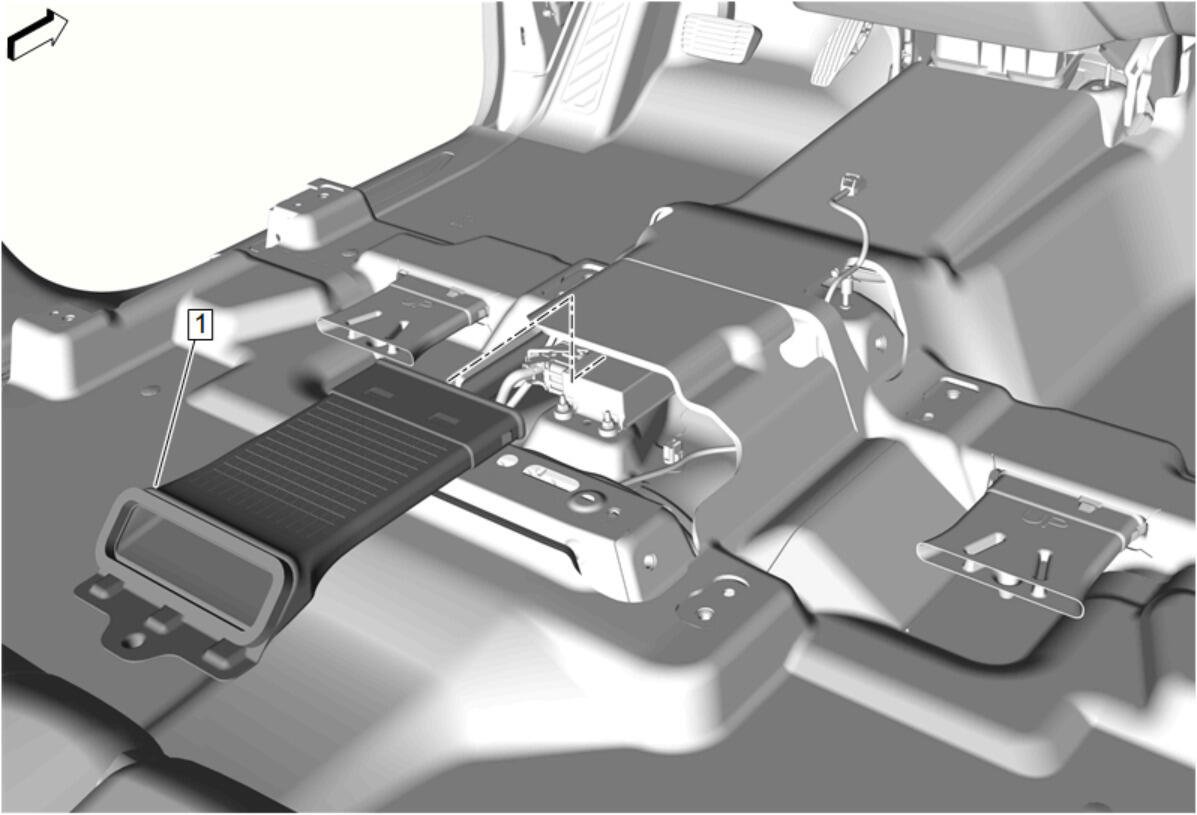

  4. GM5021505Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Duct Adapter (1) - Install

  5. Front Floor Console - Install - Front Floor Console Removal and Installation
  6. Enable the SIR System. SIR Disabling and Enabling .
  7. Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
