Installation Procedure

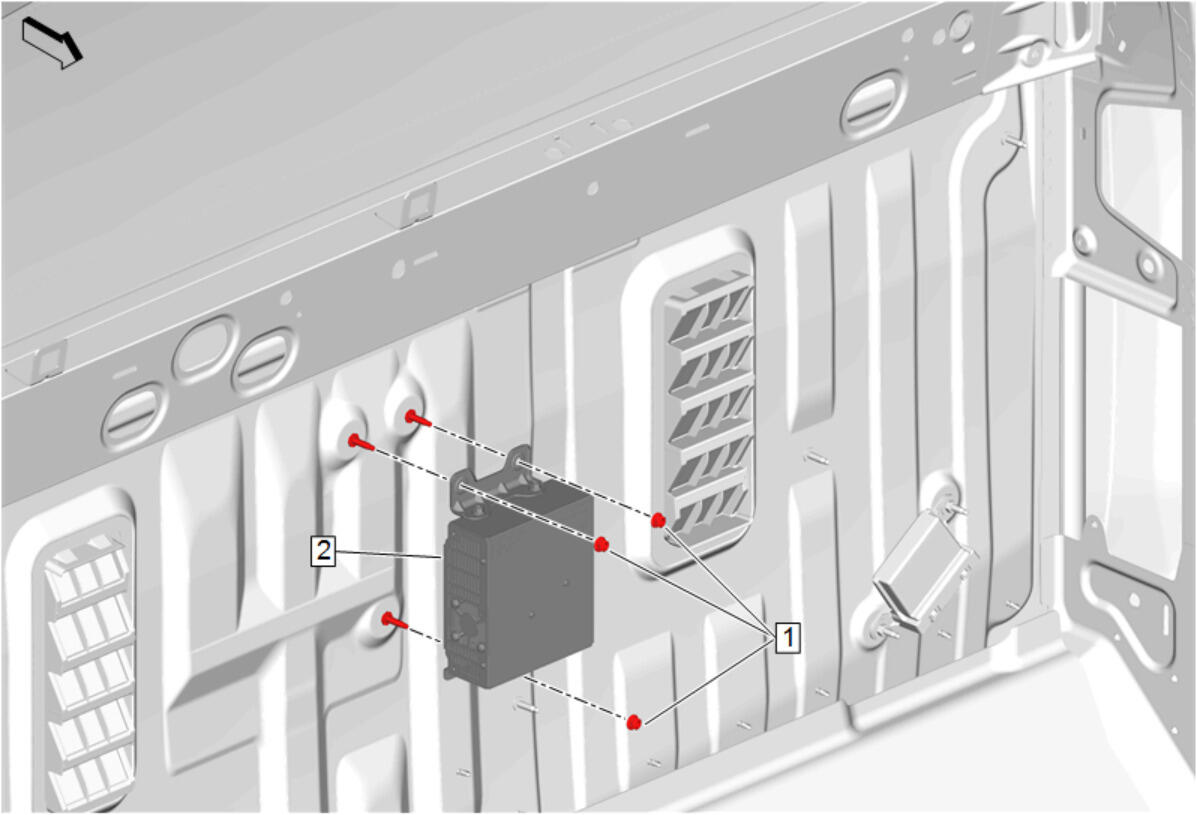

  1. GM5161791Courtesy of GENERAL MOTORS COMPANY

    Accessory AC and DC Power Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Accessory AC and DC Power Control Module Nut (1) - Install and tighten [3x] - Fastener Specifications
  3. Connect the electrical connectors.

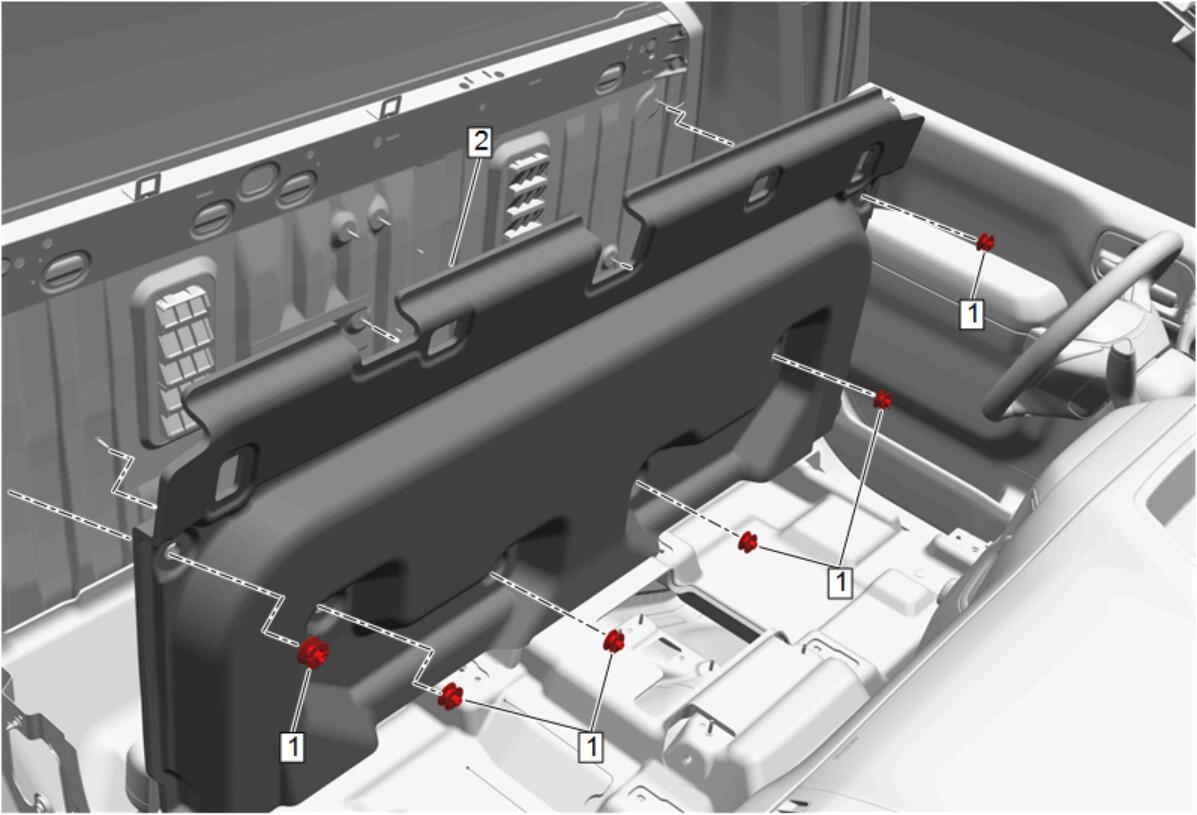

  4. GM5160364Courtesy of GENERAL MOTORS COMPANY

    Body Rear Panel Insulator (2) - Install

  5. Body Rear Panel Insulator Retainer (1) - Install [6x]
  6. GM5163264Courtesy of GENERAL MOTORS COMPANY

    Body Lock Pillar Garnish Molding (3) - Install [2x]

    7. CAUTION:

    Refer to Fastener Caution .

  7. Body Lock Pillar Garnish Molding Bolt (2) - Install and tighten [2x] - Fastener Specifications
  8. Center Pillar Upper Trim Panel Bolt Cap (1) - Install [2x]
  9. GM5158756Courtesy of GENERAL MOTORS COMPANY

    Rear Window Lower Garnish Molding (1) - Install

  10. Return the rear seat to its original position.
  11. Enable the SIR System. SIR Disabling and Enabling
  12. Perform the necessary programming and setup procedure:Control Module References
