Fastener Specifications
Automatic Transmission Control Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

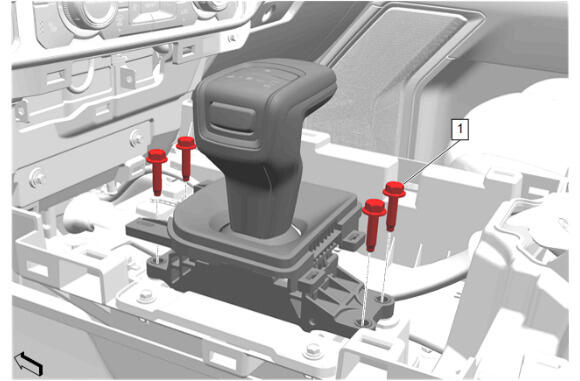

| 1 | Automatic Transmission Control Bolt [4x] | - | - | 10.5 N.m (93 lb in) | Gear Shift Control Module Replacement |
