Shift Lock Control Wiring Schematics (M5X/MHT/MQB/MQE)
›

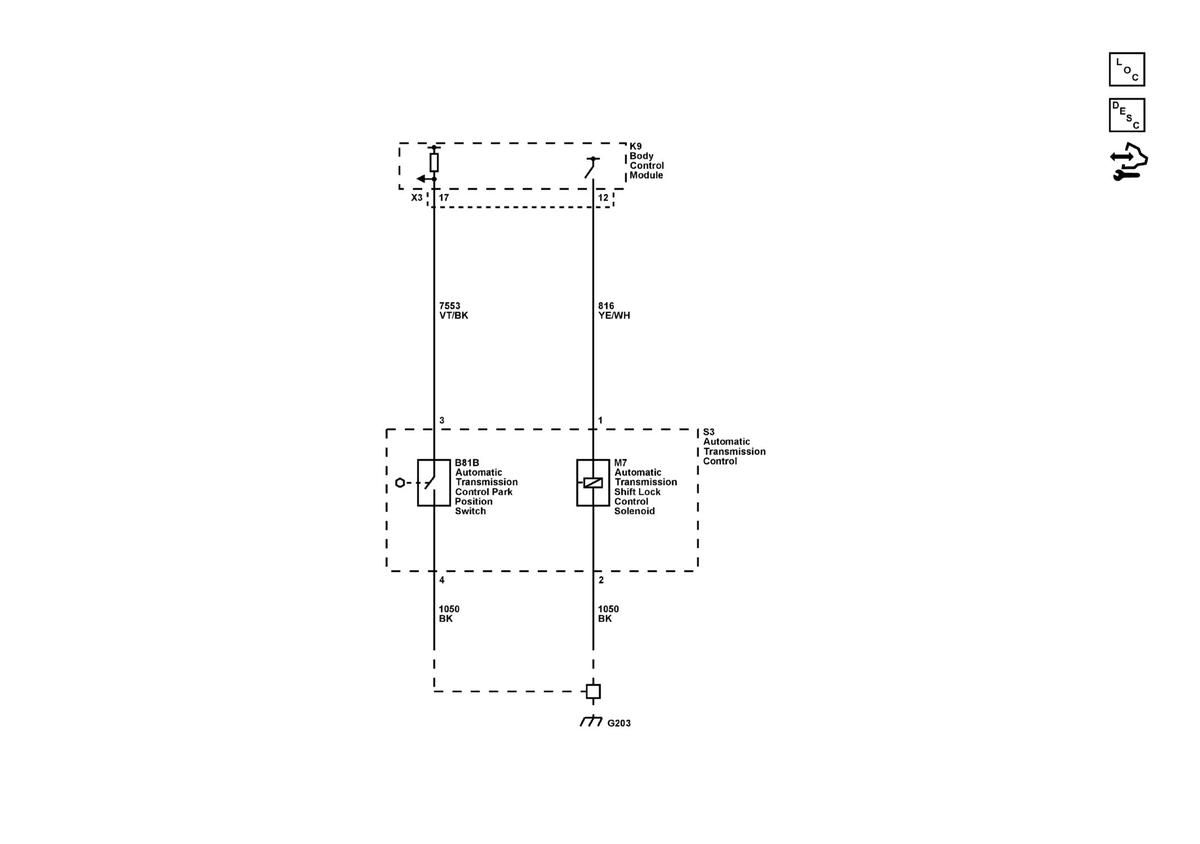

Shift Lock Control (M5X/MHT/MQB/MQE)
Shift Lock Control (M5X/MHT/MQB/MQE)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
