Home › Chevrolet › 2022 › Spark ACTIV, Standard Trans › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Virtual Key (BOP)

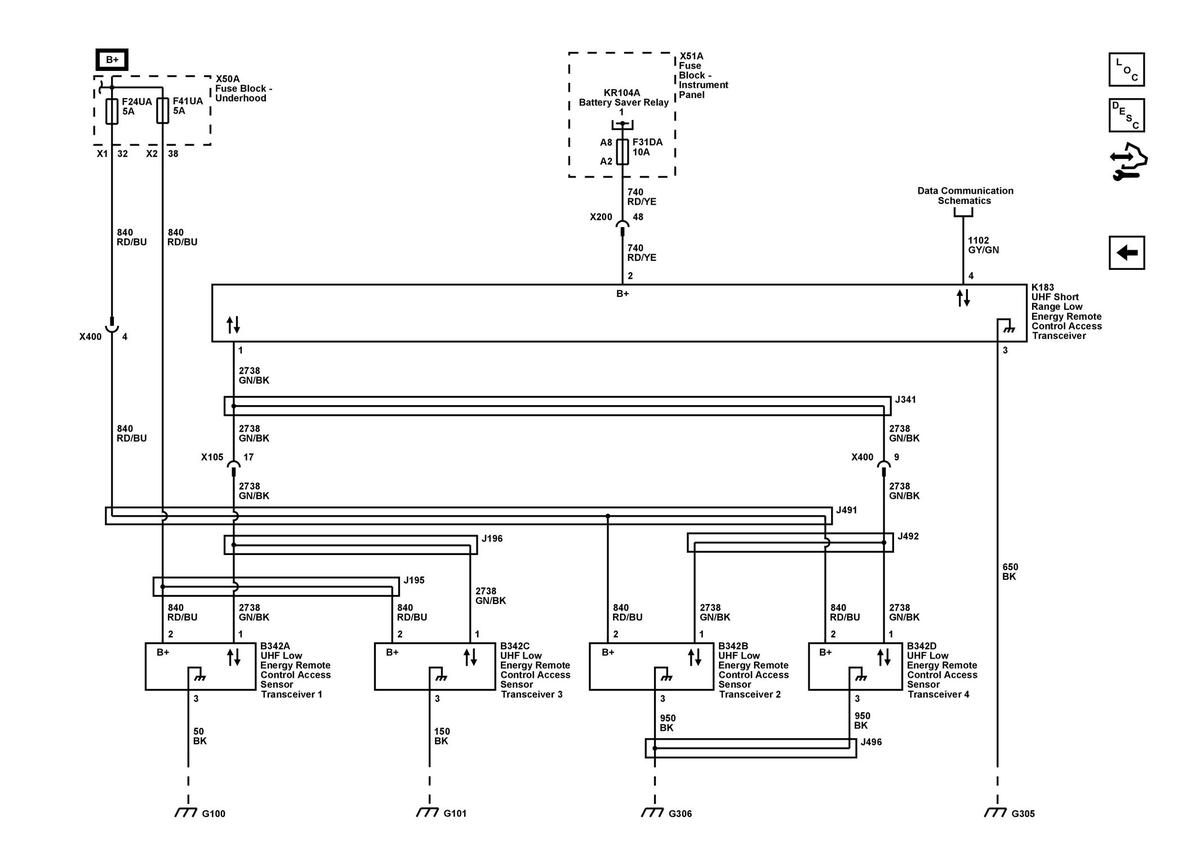

Keyless Entry - Virtual Key (BOP)

GM5714768Courtesy of GENERAL MOTORS COMPANY
