Liftgate Latch Replacement

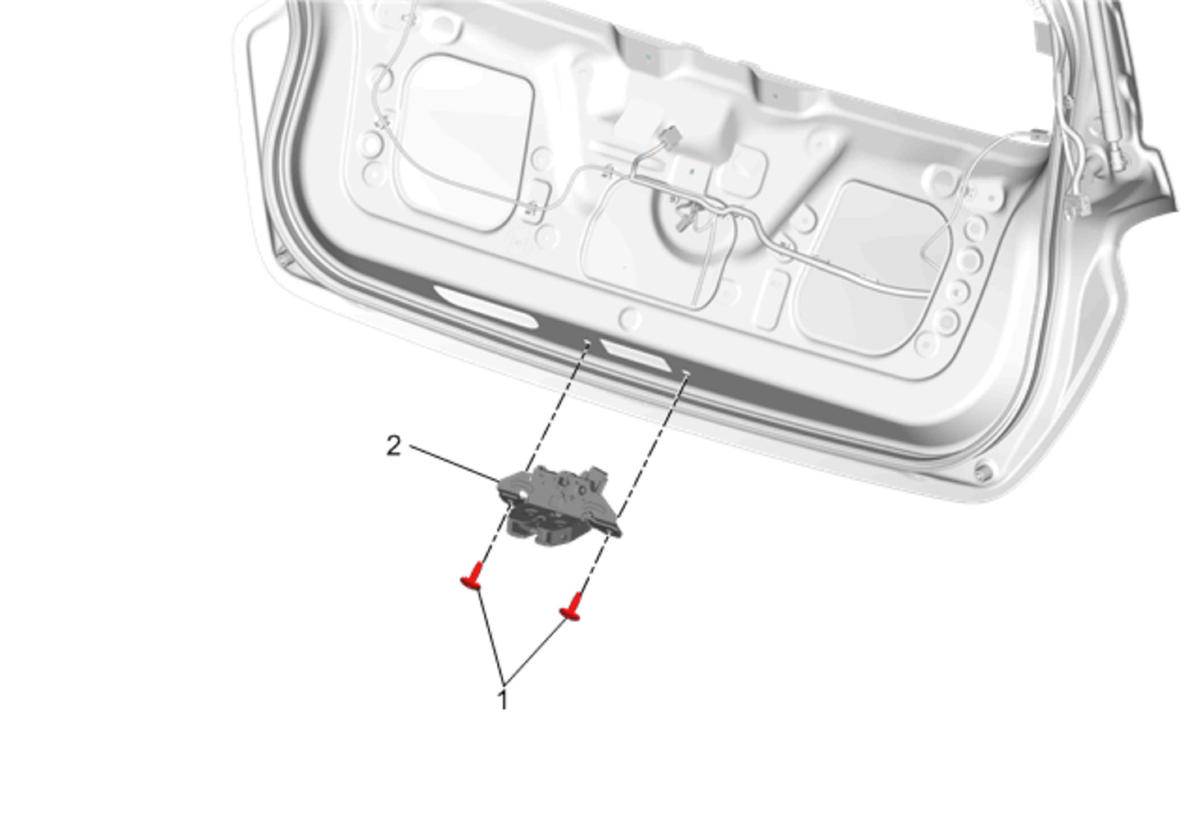

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement . |
|
| 1 | Liftgate Latch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 2 | Liftgate Latch Assembly Procedure Disconnect electrical connector. |
