M30 Liftgate Latch
 Courtesy of GENERAL MOTORS COMPANY
|

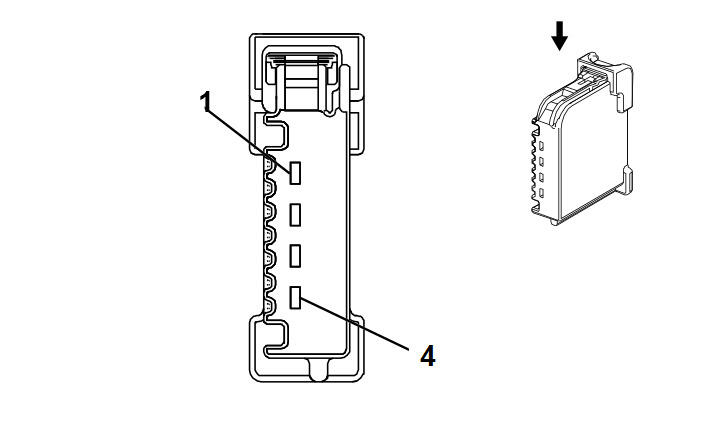

Connector Part Information
- Harness Type: Liftgate Wiring Harness
- OEM Connector: 6098-5516
- Service Connector: Service by Harness
- Description: 4-Way F 1.5 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
1150 |
Ground |
I |
- |
| 2 |
0.5 |
VT / GY |
1303 |
Liftgate Ajar Switch Signal 1 |
I |
- |
| 3 |
0.5 |
BU / WH |
6128 |
Rear Closure Unlatch Actuator Unlatch Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
