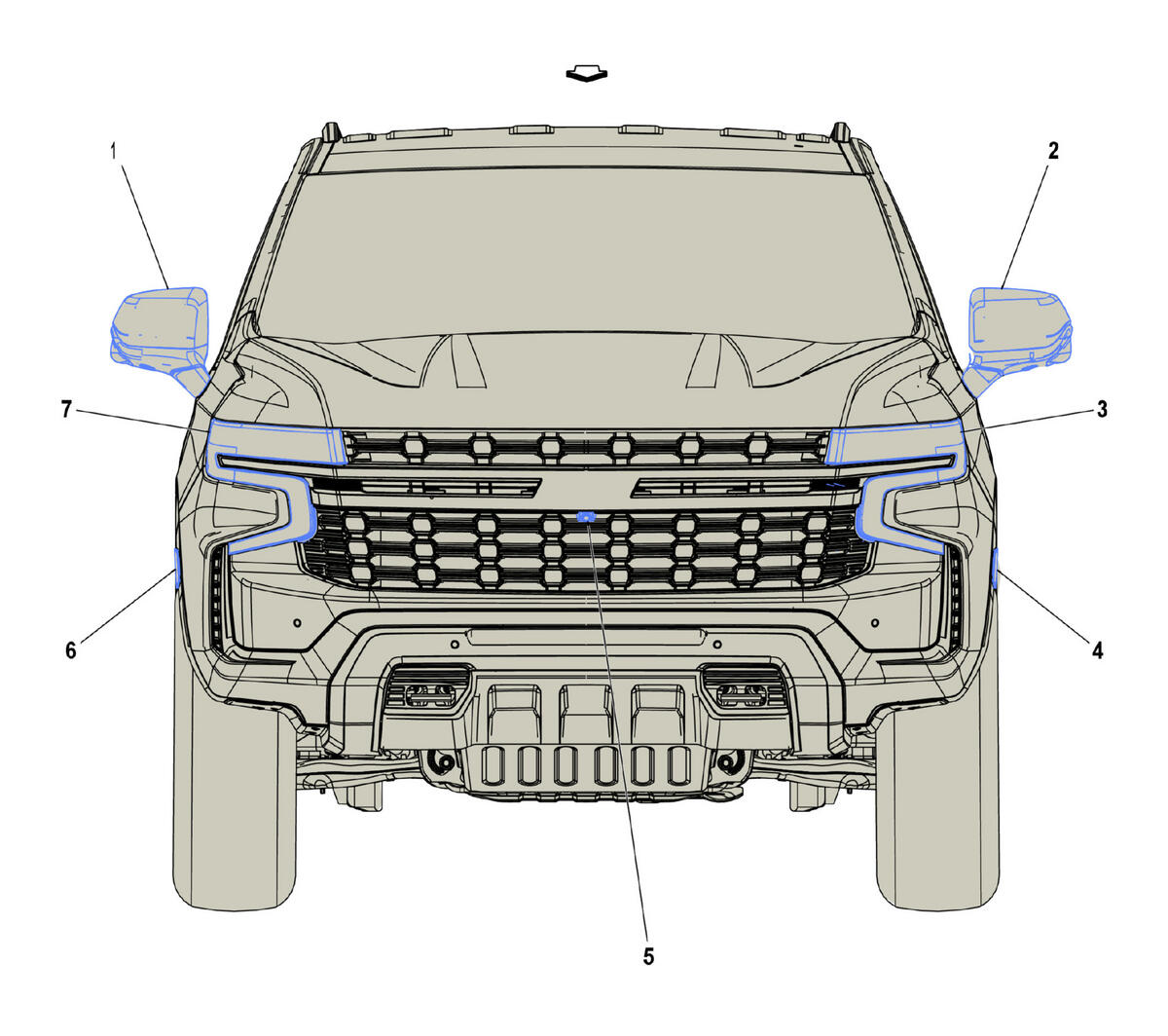

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| A9B Outside Rearview Mirror - Passenger | 1 |
| A9A Outside Rearview Mirror - Driver | 2 |
| E13LA Front Headlamp - Left E13LA Front Headlamp - Left | 3 |
| E2LF Front Side Marker Lamp - Left E2LF Front Side Marker Lamp - Left | 4 |
| B174G Front View Driver Information Camera - Grille (UV2) B174G Front View Driver Information Camera - Grille (UV2/UVS) | 5 |
| E2RF Front Side Marker Lamp - Right E2RF Front Side Marker Lamp - Right | 6 |
| E13RA Front Headlamp - Right E13RA Front Headlamp - Right | 7 |
