Fastener Specifications
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

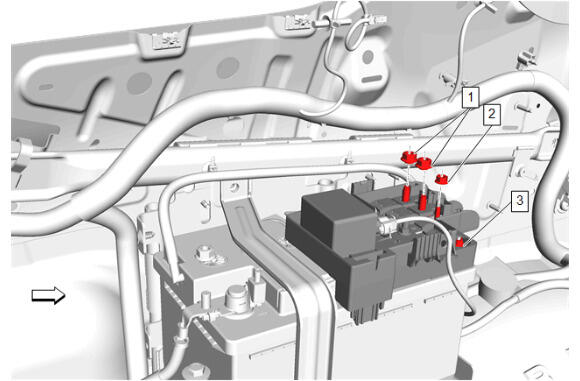

Callouts in the following chart represent components shown in graphic above.
Battery Distribution Engine Compartment Fuse Block (L84, L87)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Battery Positive Cable Nut | - | - | 6 N.m (53 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) |
| 2 | Battery Positive Cable Nut [3x] | - | - | 15 N.m (11 lb ft) | Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) |
| 3 | Battery Positive Post Clamp Nut | - | - | 5 N.m (44 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement (L84, L87) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Battery Distribution Engine Compartment Fuse Block (LM2)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Battery Positive Cable Nut [3x] | - | - | 6 N.m (53 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement (LM2) |
| 2 | Battery Positive Cable Nut [3x] | - | - | 15 N.m (11 lb ft) | Battery Distribution Engine Compartment Fuse Block Replacement (LM2) |
| 3 | Battery Positive Post Clamp Nut | - | - | 4.5 N.m (40 lb in) | Battery Distribution Engine Compartment Fuse Block Replacement (LM2) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Battery Distribution Fuse Block (9C1, 5W4)
| Callout | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link | |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Battery Positive Cable Nut [2x] | - | - | 15 N.m (11 lb ft) | Battery Distribution Fuse Block Replacement (9C1, 5W4) |
| 2 | Battery Positive Cable Nut | - | - | 6 N.m (53 lb in) | Battery Distribution Fuse Block Replacement (9C1, 5W4) |
| 3 | Battery Positive Post Clamp Nut | - | - | 9 N.m (80 lb in) | Battery Distribution Fuse Block Replacement (9C1, 5W4) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Body Fuse Block Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Fuse Block Bolt | - | - | 9 N.m (80 lb in) | Rear Body Fuse Block Bracket Replacement |
| 2 | Body Wiring Harness Junction Block Bracket Nut | - | - | 9 N.m (80 lb in) | Rear Body Fuse Block Bracket Replacement |
