Fastener Specifications
WARNING: This page is about a different car, the 2021 Chevrolet Tahoe and 2021 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

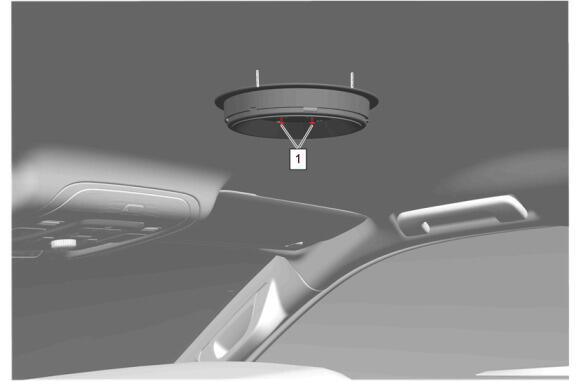

Emergency Vehicle Reading Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Emergency Vehicle Reading Lamp Bolt [2x] | - | - | 1.3 N.m (12 lb in) | Emergency Vehicle Reading Lamp Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

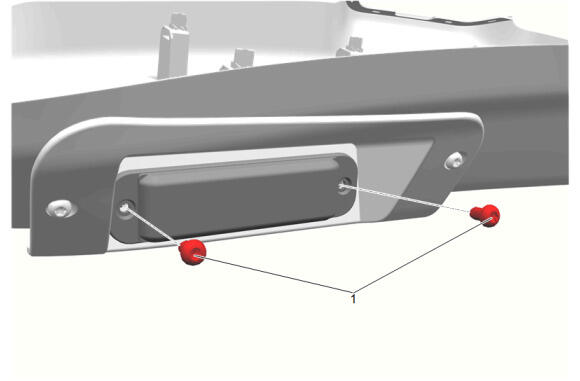

Emergency Vehicle Warning Rear Lamp
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Emergency Vehicle Warning Rear Lamp Bolt [2x] | - | - | 2.6 N.m (23 lb in) | Emergency Vehicle Warning Rear Lamp Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

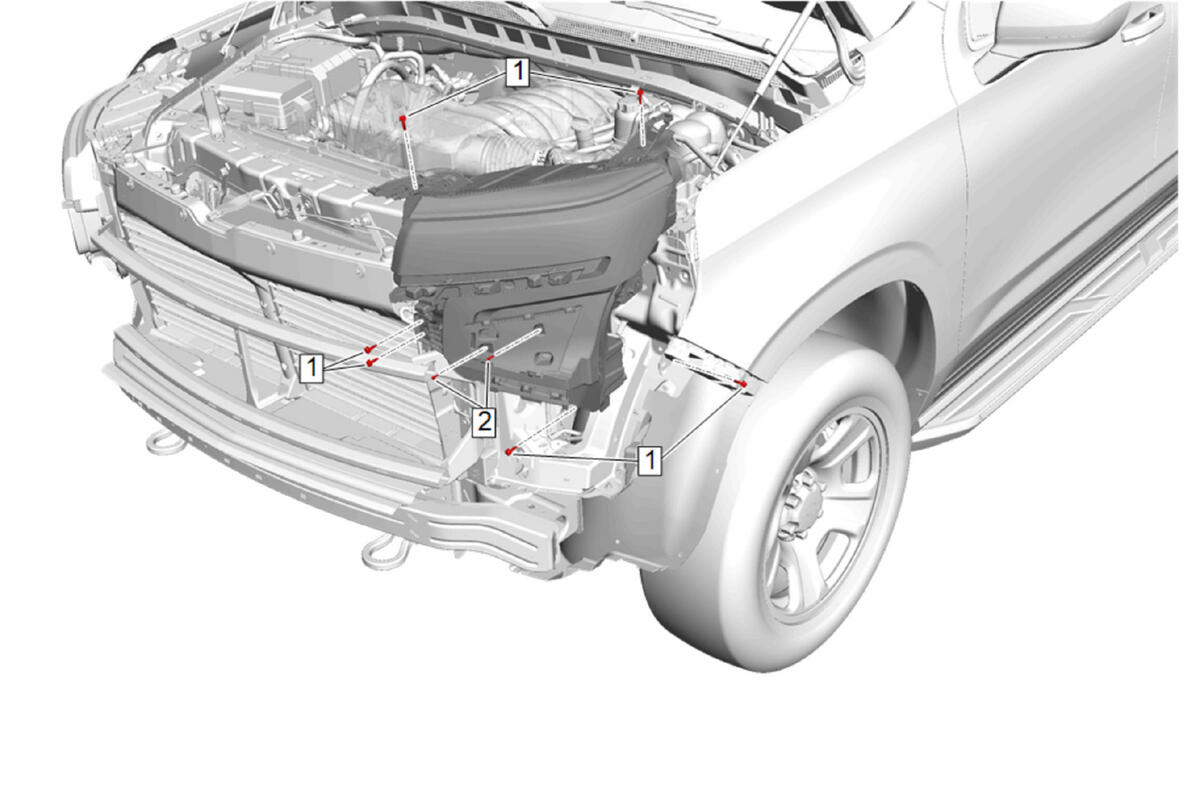

Front Lighting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [6x] | - | - | 6 N.m (53 lb in) | Front Headlamp Replacement |
| 2 | Headlamp Bracket Bolt [2x] | - | - | 2.3 N.m (20 lb in) | Headlamp Bracket Replacement (Headlamp) , or Headlamp Bracket Replacement (Radiator Support) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

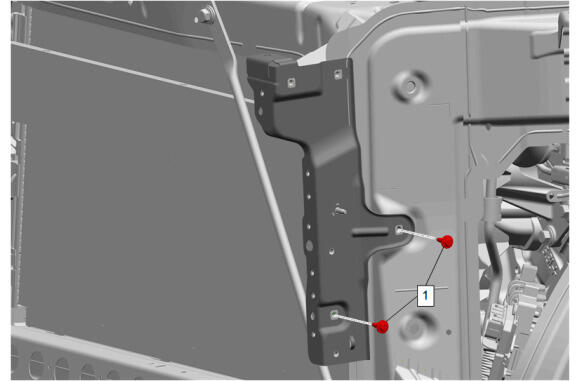

Headlamp Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [2x] | - | - | 9 N.m (80 lb in) | Headlamp Bracket Replacement (Headlamp) , or Headlamp Bracket Replacement (Radiator Support) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

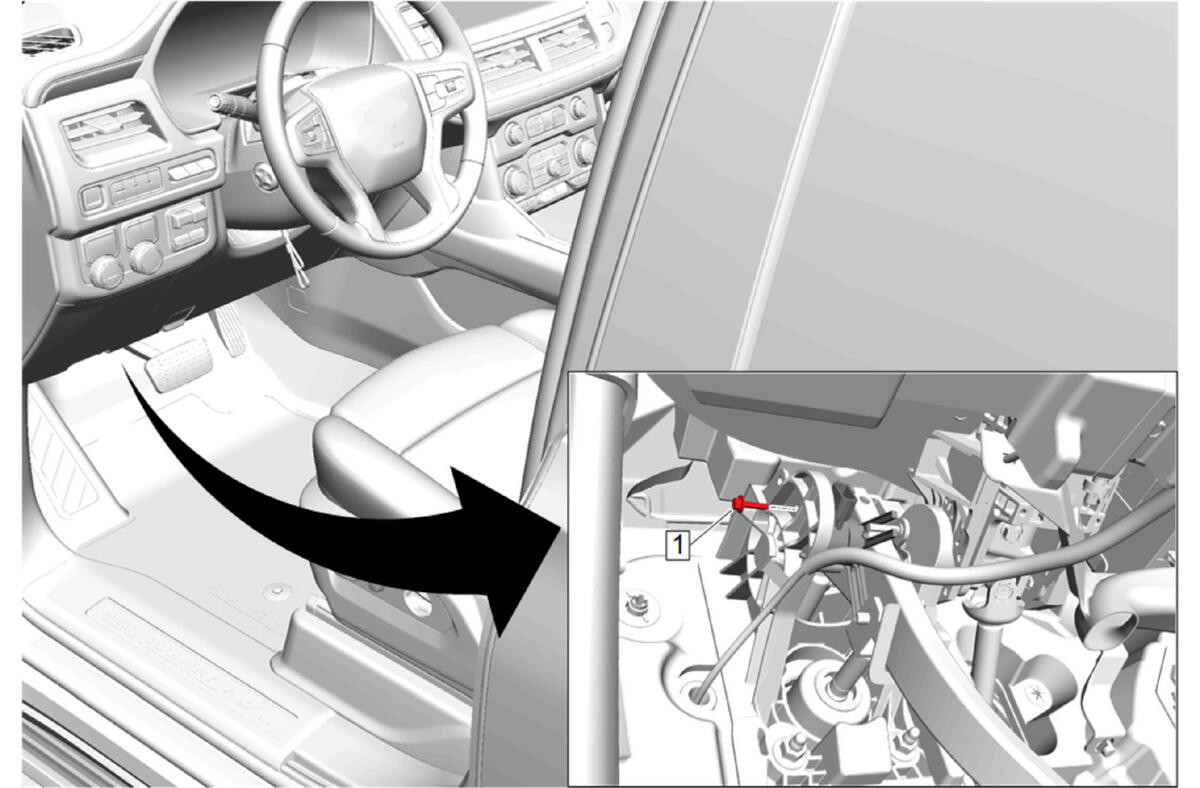

Interior Lighting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Brake Pedal Position Sensor Bolt | - | - | 3 N.m (27 lb in) | Brake Pedal Position Sensor Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

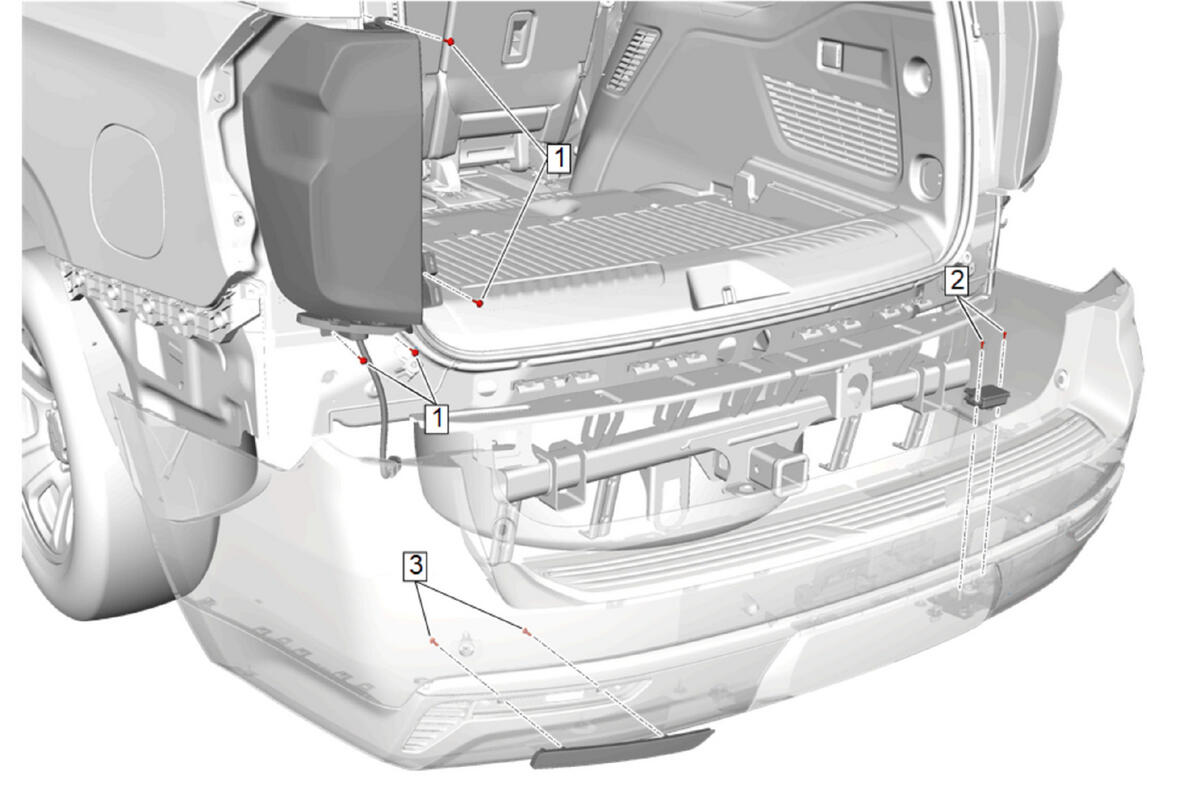

Rear Bumper Fascia and Body Lighting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Body Structure Stop Lamp Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Rear Body Structure Stop Lamp Replacement |
| 2 | Rear Closure Hands Free Module Bolt [2x] | - | - | 1 N.m (9 lb in) | Rear Closure Hands Free Lamp Replacement |
| 3 | Rear Fascia Signal Lamp Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Fascia Lower Signal Lamp Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

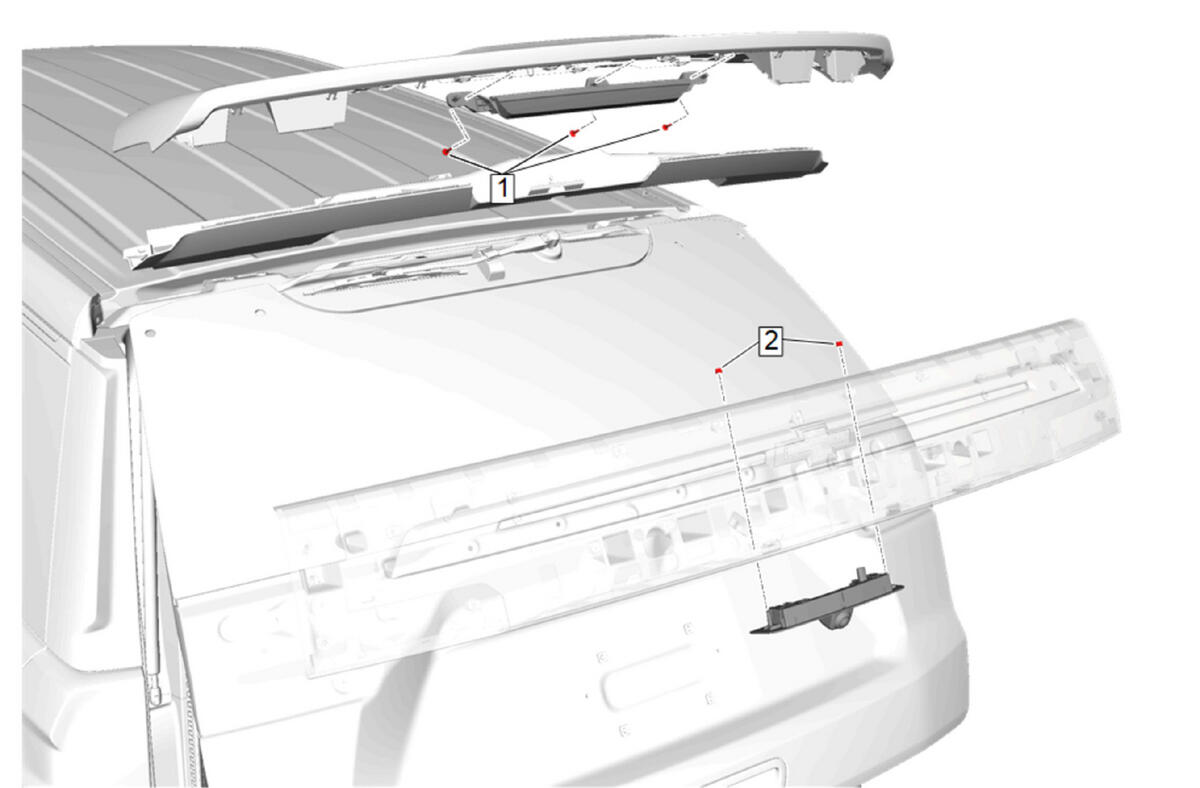

Rear Liftgate Lighting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Mount Stop Lamp Bolt [3x] | - | - | 2.5 N.m (22 lb in) | High Mount Stop Lamp Replacement |
| 2 | Rear Closure Center Applique Nut [2x] | - | - | 2 N.m (18 lb in) | Rear License Plate Lamp Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

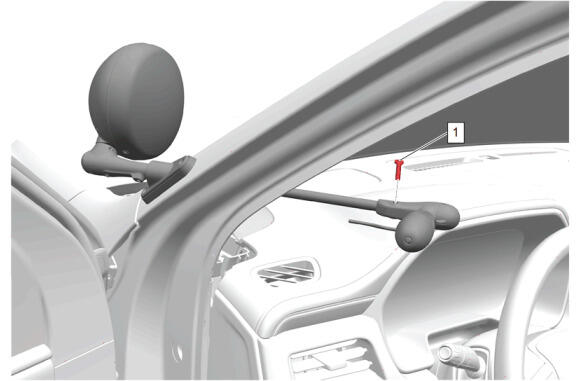

Spot Lamp Handle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Handle Key Bolt | - | - | 5.1 N.m (45 lb in) | Spot Lamp Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

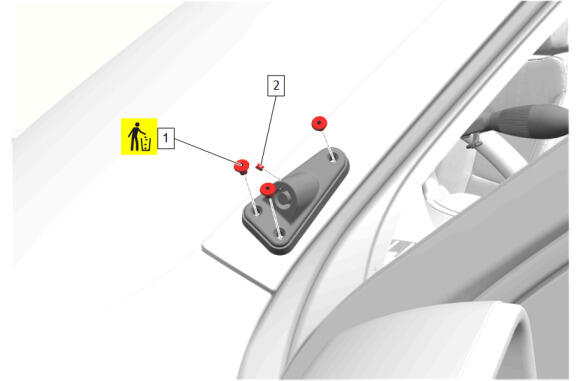

Spot Lamp Mounting
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Spot Lamp Bracket Rivet [3x] | Yes | - | - | Spot Lamp Replacement |
| 2 | Spot Lamp Bracket Set Screw | - | - | 5.65 N.m (50 lb in) | Spot Lamp Replacement |
