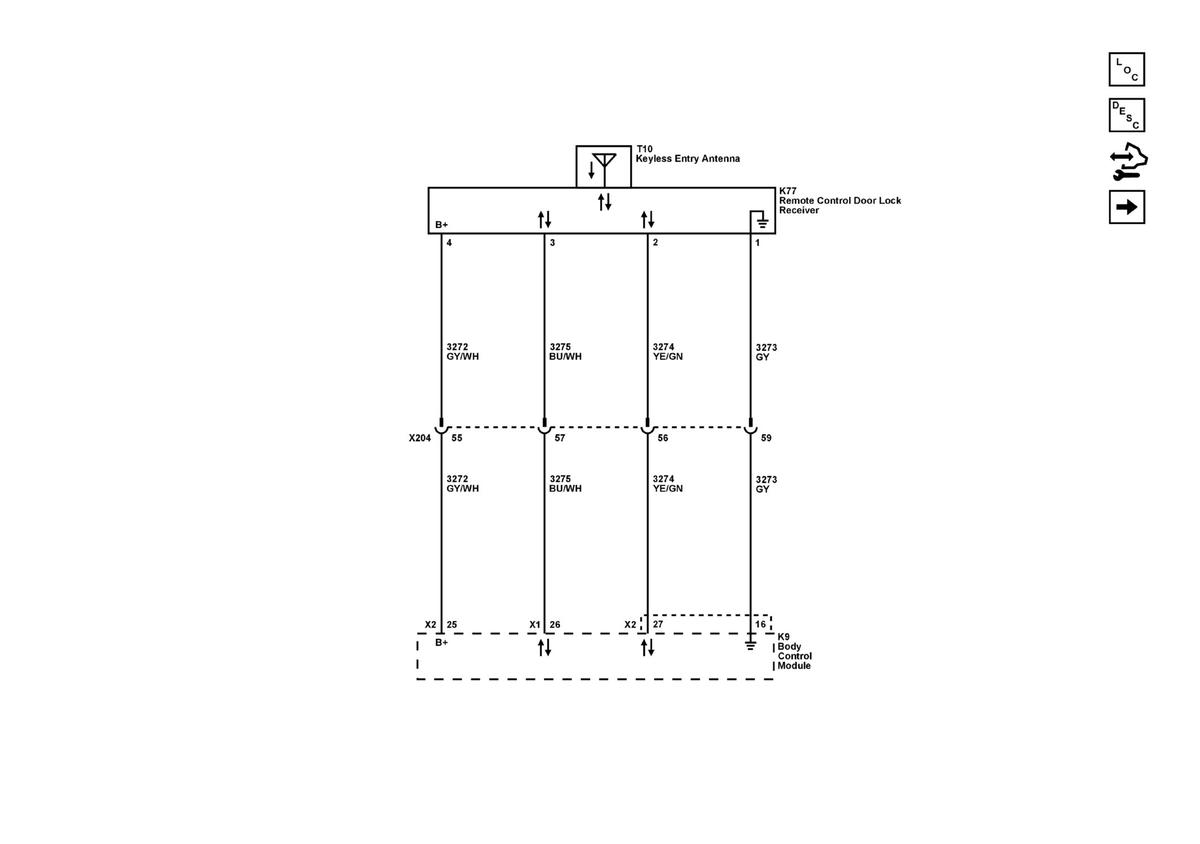

Home › Chevrolet › 2022 › Trailblazer L › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry
