Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

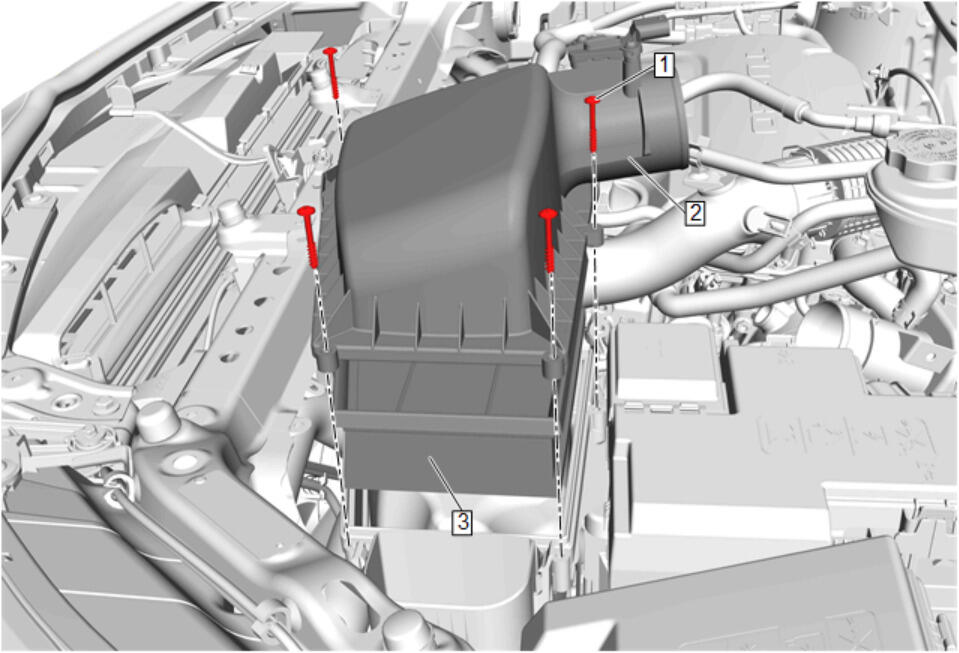

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Front Duct @ Air Cleaner Assembly - Disconnect - Air Cleaner Outlet Front Duct Replacement Intake Air Duct Replacement Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose @ Air Cleaner Housing Cover - Disconnect - Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose Replacement Disconnect the electrical connector.
1	Air Cleaner Housing Cover Bolt [4x] CAUTION: Fastener Caution Tighten 1.6 N.m (14 lb in)
2	Air Cleaner Housing Cover Procedure Unclip the mass airflow sensor wiring harness retainer from the air cleaner housing cover.
3	Air Cleaner Element
