Crankshaft Position Sensor Replacement

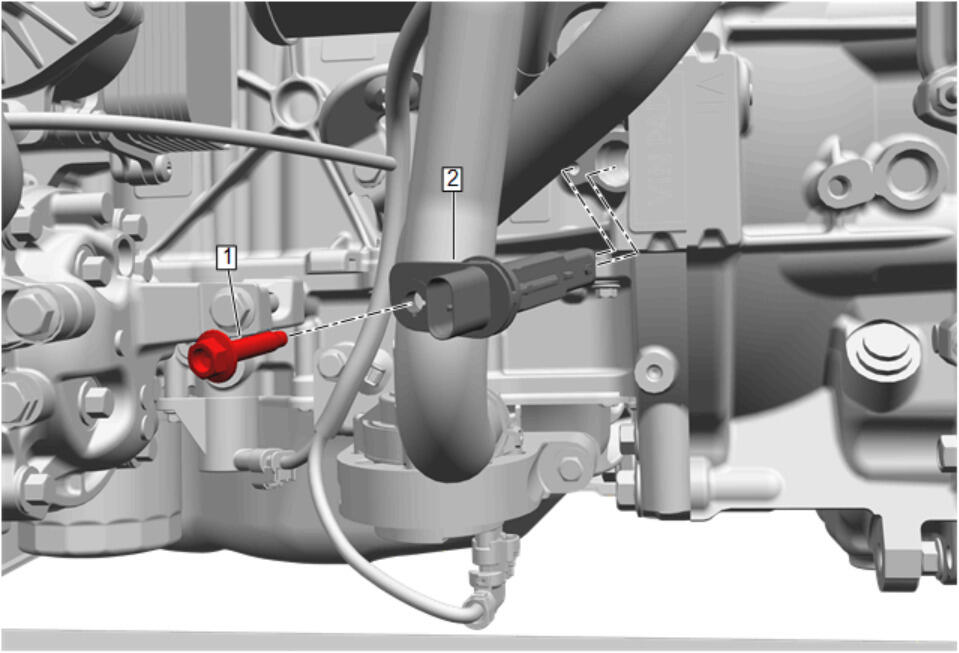

GM5392480

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Compartment Insulator Replacement (Base) , or Front Compartment Insulator Replacement (Service Cover for Engine Oil Filter) , or Front Compartment Insulator Replacement (Service Cover for Engine Oil Drain)

1

Crankshaft Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

2

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
