Installation Procedure

  1. GM5390620Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) @ Vehicle - Install

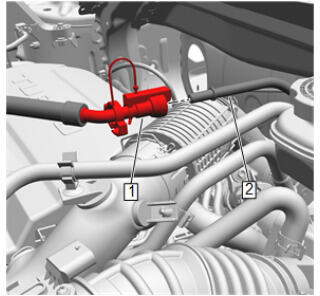

  2. GM5442646Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) @ Fuel Feed Pipe (2) - Connect - Metal Collar Quick Connect Fitting Service

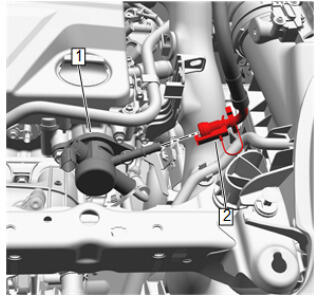

  3. GM5442645Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) @ Fuel Pump (2) - Connect - Metal Collar Quick Connect Fitting Service

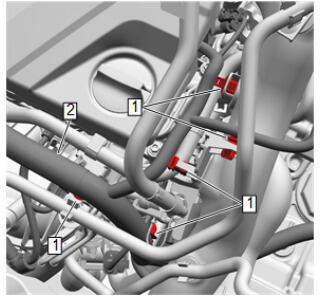

  4. GM5442644Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (2) - Install

  5. Wiring Harness Retainer (1) - Secure [5x]
