Fuel Level Sensor Replacement

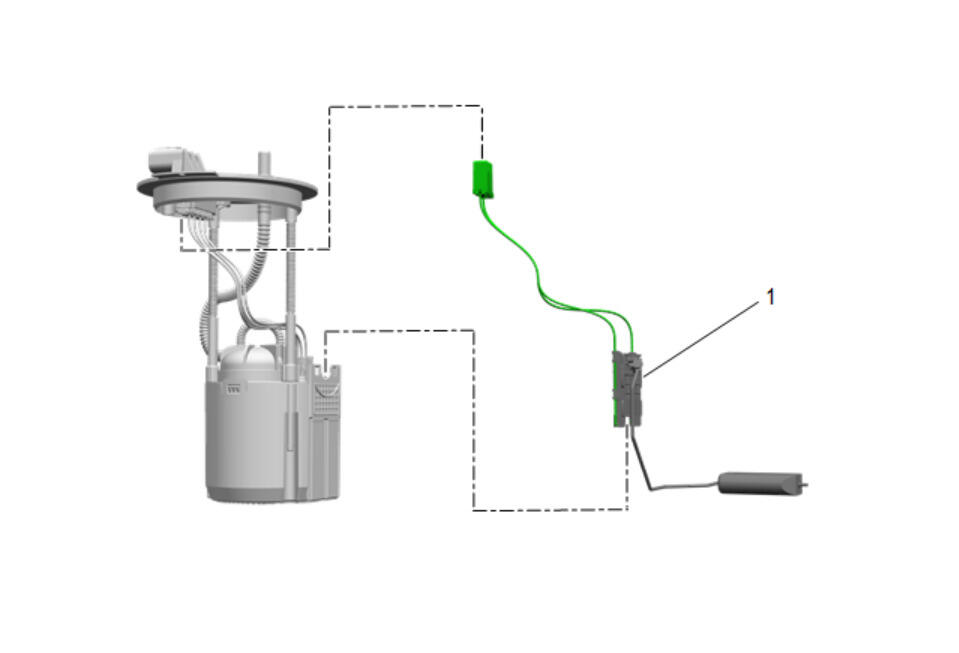

GM5315519Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Diesel/Gasoline Vapors Warning

WARNING:

Safety Glasses Warning

Preliminary Procedure Fuel Tank Fuel Pump Module Replacement
1 Fuel Level Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release tabs and slide fuel level sensor up to remove.
