Installation Procedure

  1. GM5278859Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) @ Fuel Tank Fuel Pump Module - Install NEW

  2. Fuel Tank Fuel Pump Module (1) @ Fuel Tank - Install

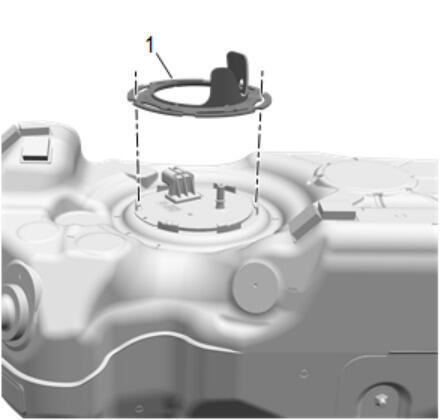

  3. GM5278858Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retainer (1) @ Fuel Tank - Install

    Use the CH-45747  fuel sender lock ring wrench to install the fuel sender retainer.

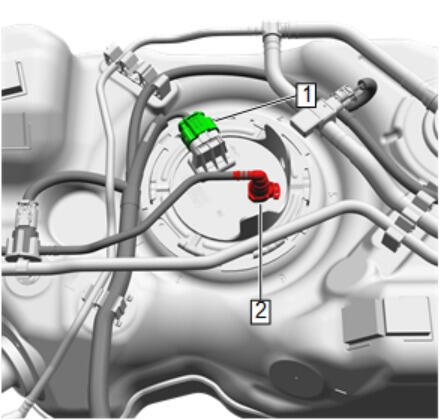

  4. GM5278857Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe-Fuel Tank (2) @ Fuel Tank Fuel Pump Module - Connect - Plastic Collar Quick Connect Fitting Service

  5. Electrical Connector (1) @ Fuel Tank Fuel Pump Module - Connect
  6. Fuel Tank - Install - Fuel Tank Replacement
