Fuel Tank Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

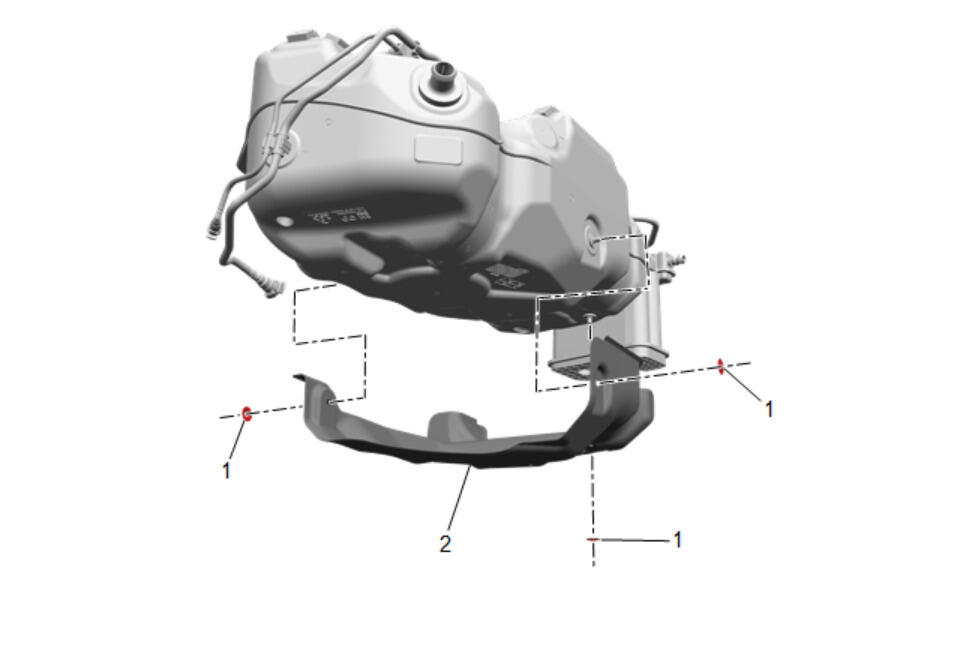

Callout	Component Name
Preliminary Procedures Exhaust Rear Muffler Replacement (FWD with L3T) , or Exhaust Rear Muffler Replacement (AWD with L3T) , or Exhaust Rear Muffler Replacement (FWD with LIH) Fuel Tank Strap- Right Side - Remove - Fuel Tank Replacement
1	Fuel Tank Shield Nut [3x]
2	Fuel Tank Shield Procedure Support the fuel tank with a suitable jack.

Callout

Component Name

Preliminary Procedures

Fuel Tank Shield Nut [3x]

Fuel Tank Shield
Procedure
Support the fuel tank with a suitable jack.
