Intake Air Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

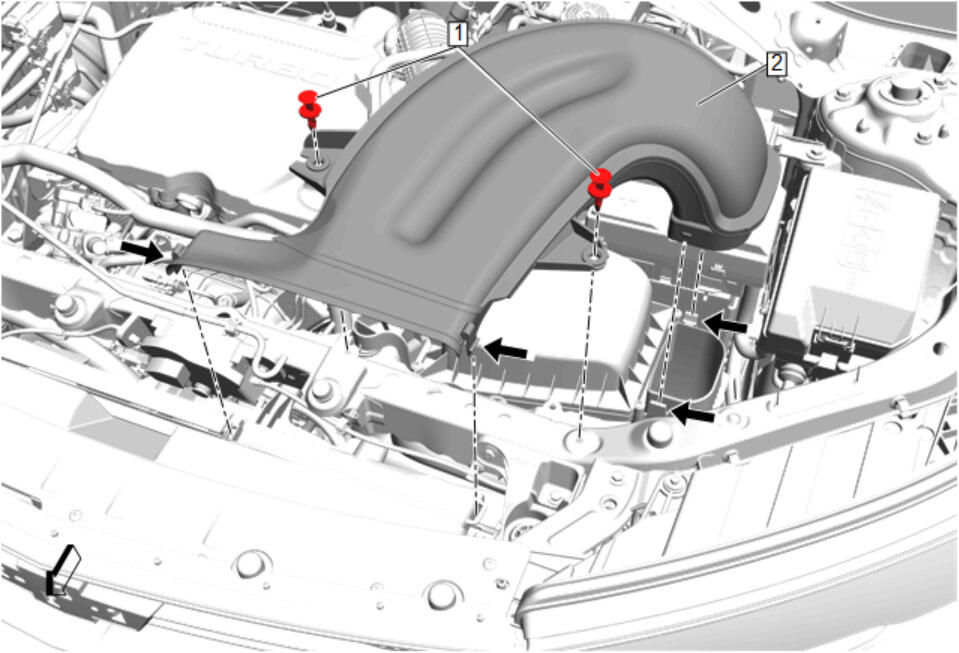

Callout	Component Name
1	Intake Air Duct Retainer [2x]
2	Intake Air Duct Procedure  Release the 4 retainer tabs (arrows) and pull upward the intake air duct.
