Installation Procedure

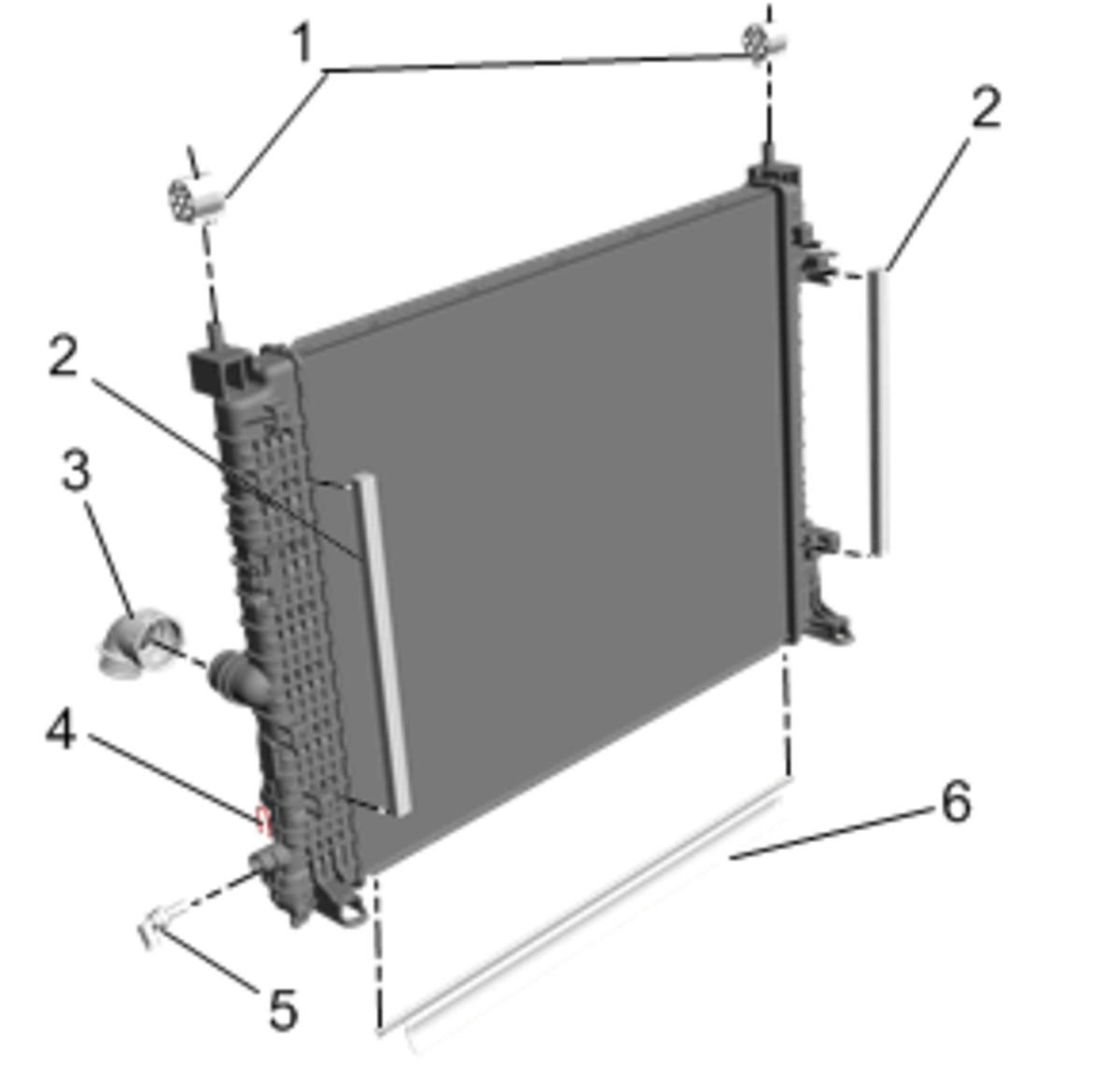

  1. Fig 1: Identifying Radiator Components
    GM4122648Courtesy of GENERAL MOTORS COMPANY

    Lower Radiator Frame (6) - Install

  2. Engine Coolant Temperature Sensor (5) - Install
  3. Engine Coolant Temperature Sensor Retainer (4) - Install
  4. Radiator Outlet Hose Connector (3) - Install - Radiator Outlet Hose Connector Replacement - Radiator Side
  5. Air Conditioning Condenser Seal (2) [2x] - Install
  6. Radiator Upper Insulator (1) [2x] - Install

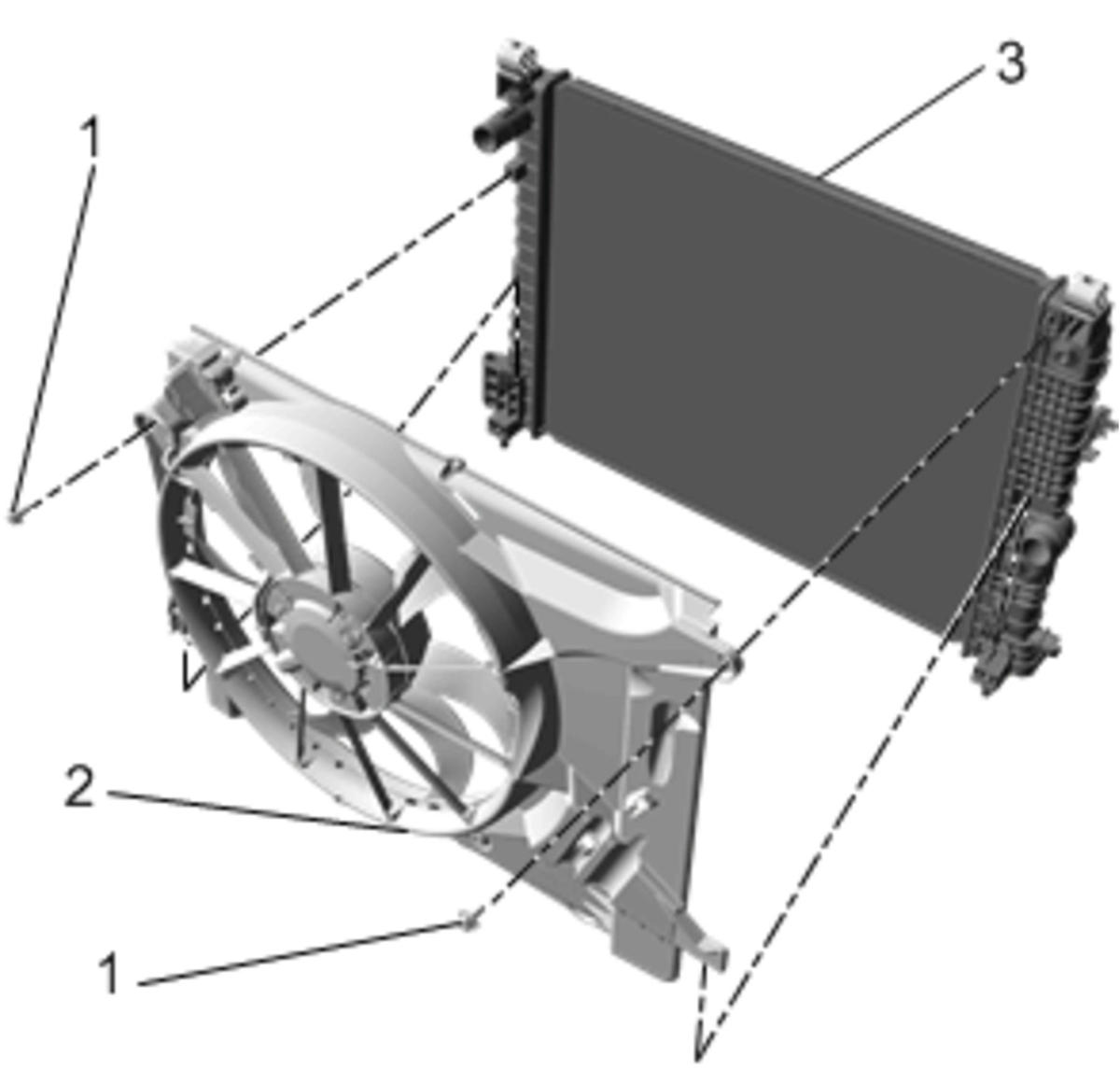

  7. GM4122323Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Radiator (3) - Install

  8. Engine Coolant Fan Shroud (2) - Install
  9. Radiator Bolt (1) [2x] - Install and tighten to 6 N.m (53 lb in)

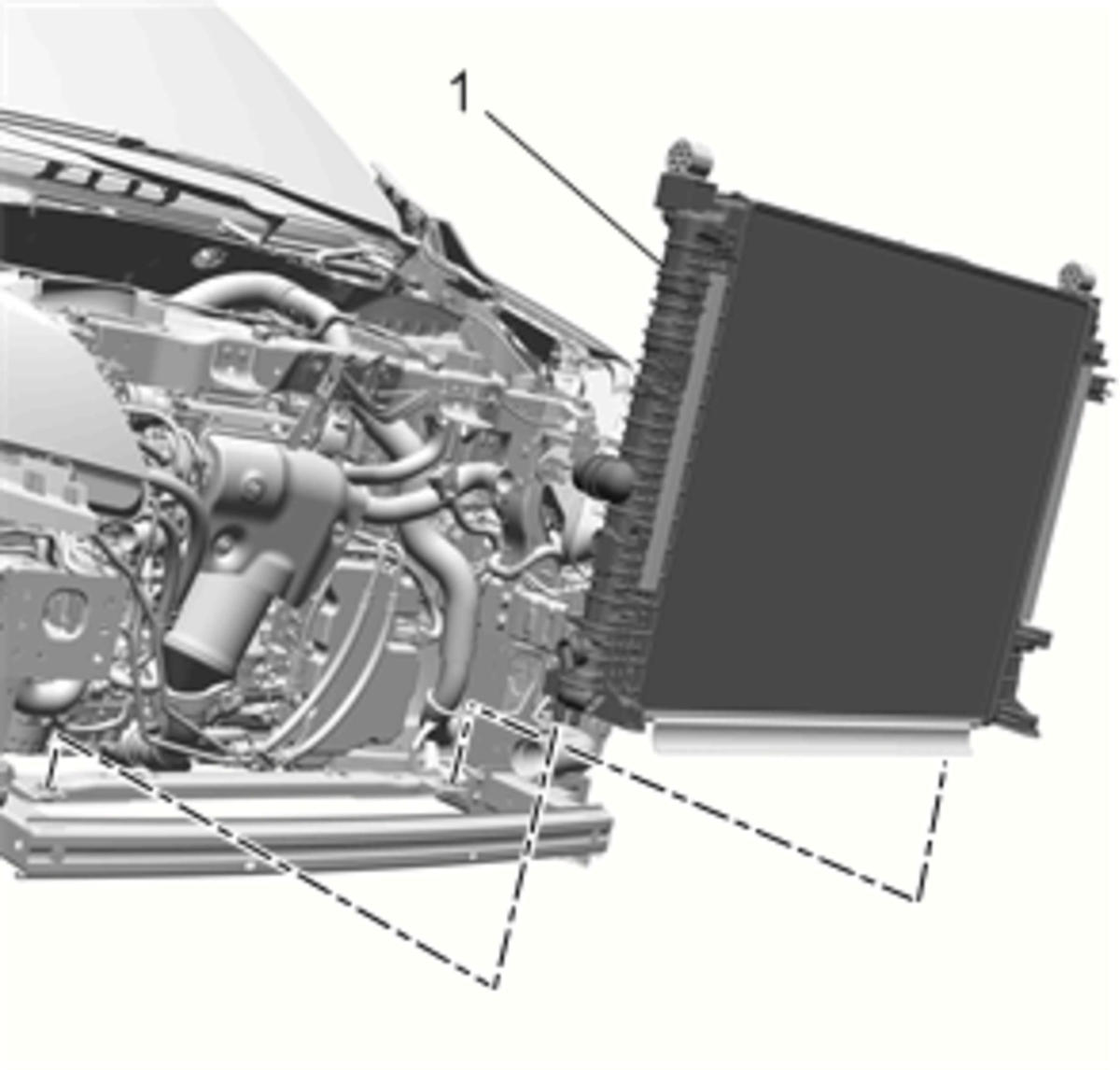

  10. GM4122326Courtesy of GENERAL MOTORS COMPANY

    Radiator Assembly (1) - Install

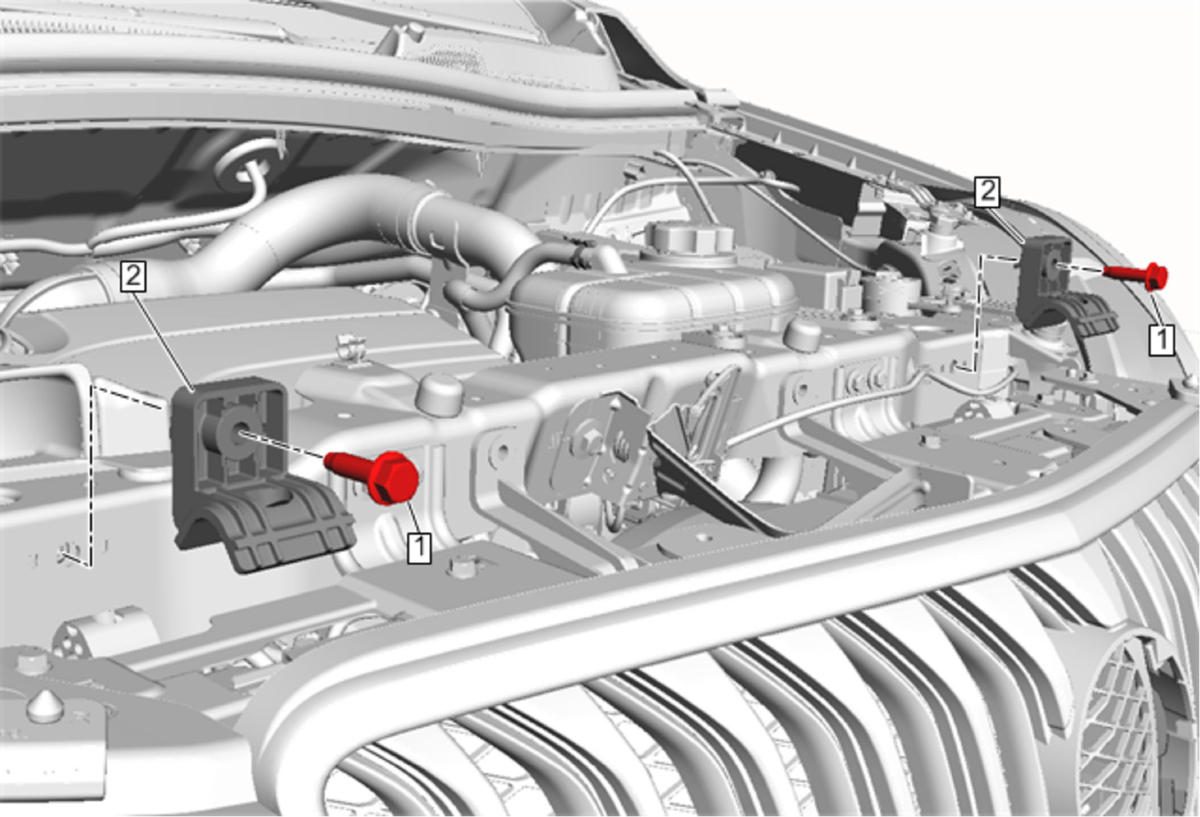

  11. GM4124108Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket (2) - Install - Radiator Upper Bracket Replacement  [2x]

  12. Connect the engine coolant fan connector.
  13. Connect the engine coolant temperature sensor electrical connector.

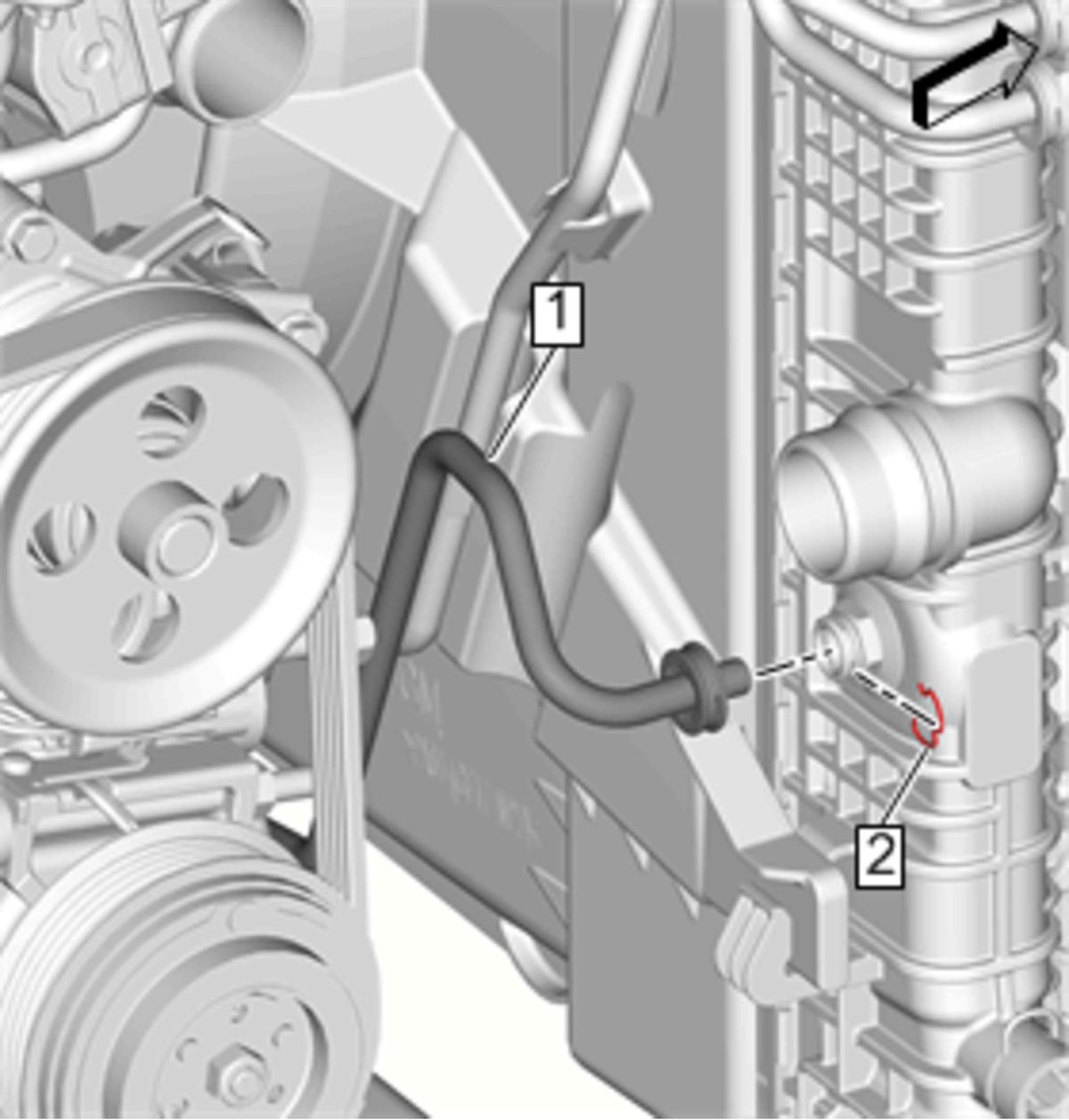

  14. GM4138065Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Inlet Pipe (1) @ Radiator Assembly - Install - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement

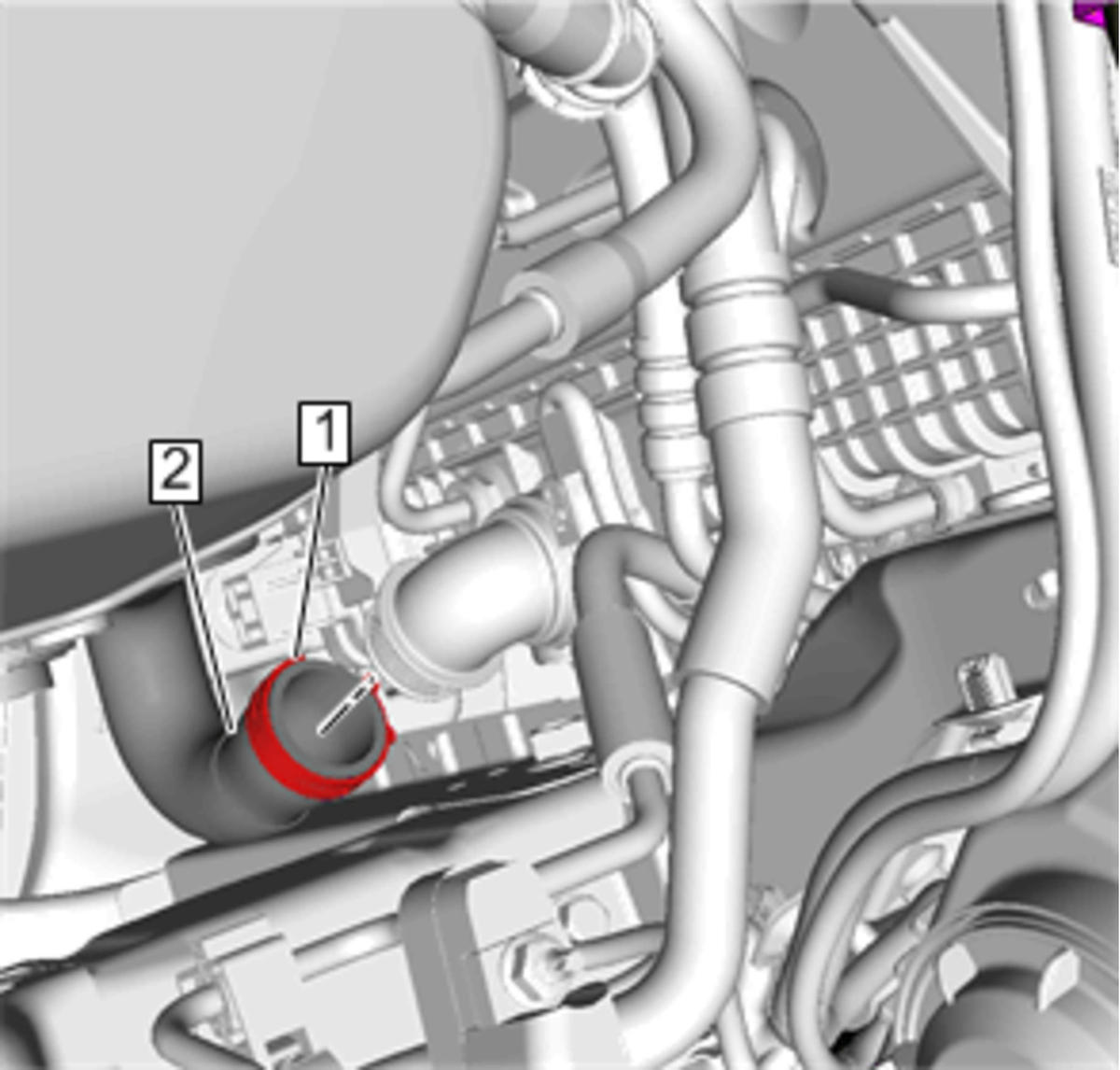

  15. GM4116829Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Radiator Assembly - Install - Radiator Outlet Hose Replacement

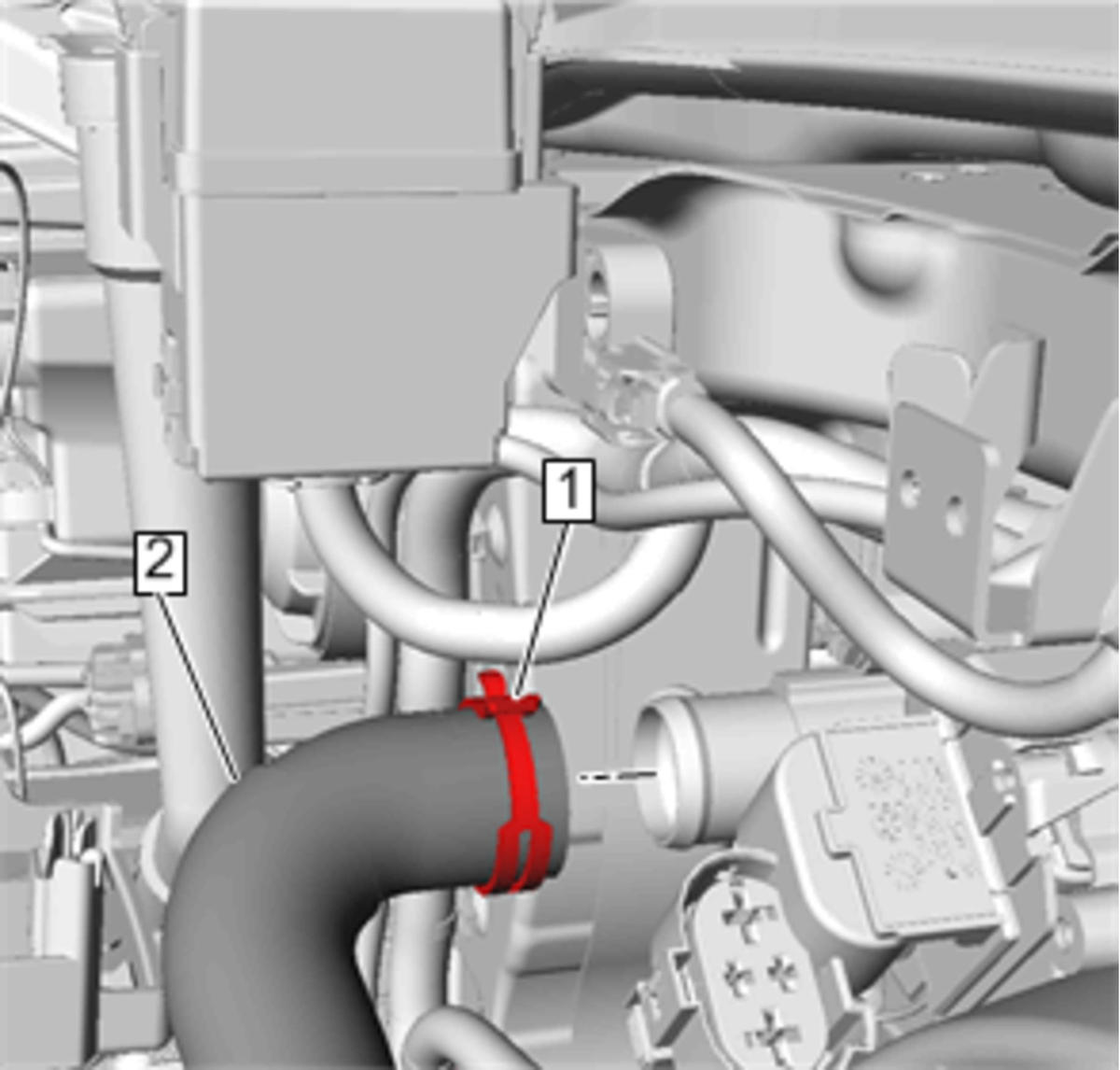

  16. GM4122123Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) @ Radiator Assembly - Install - Radiator Inlet Hose Replacement

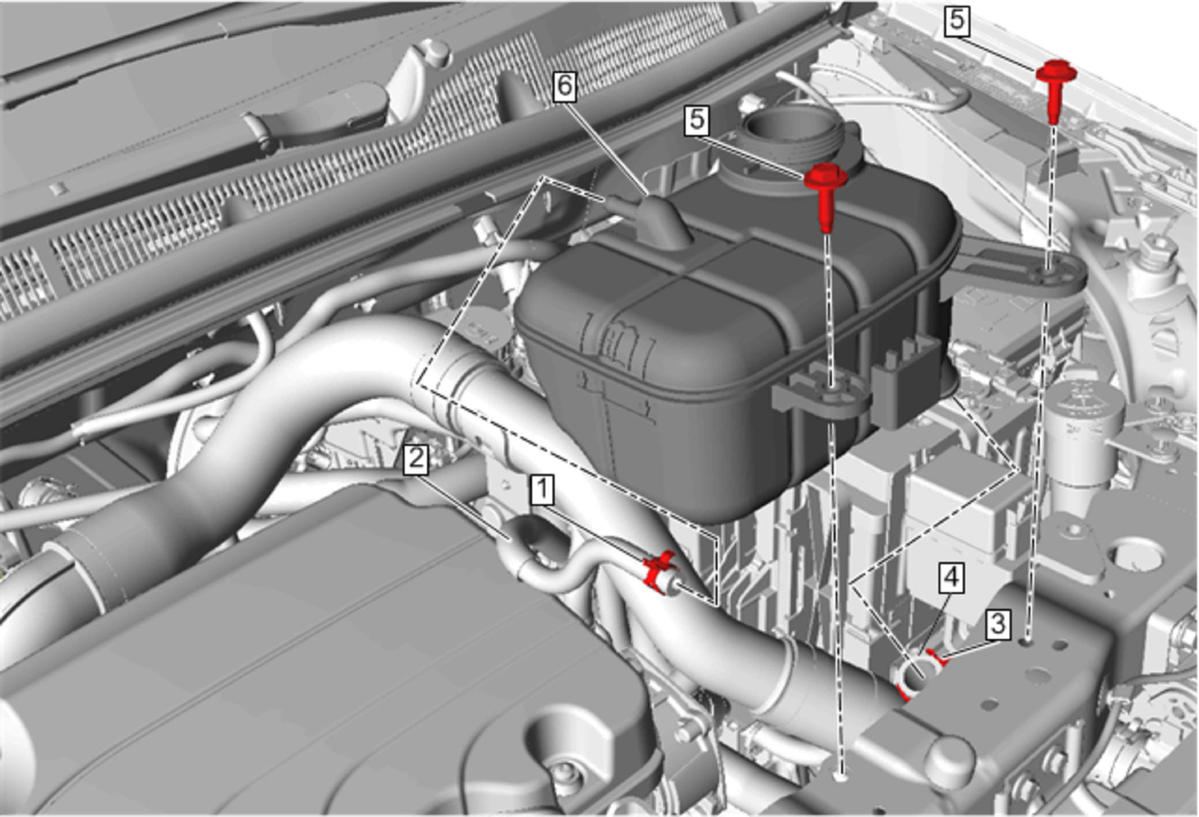

  17. Fig 2: Identifying Radiator Surge Tank Components
    GM4115680Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank (6) - Install - Radiator Surge Tank Replacement

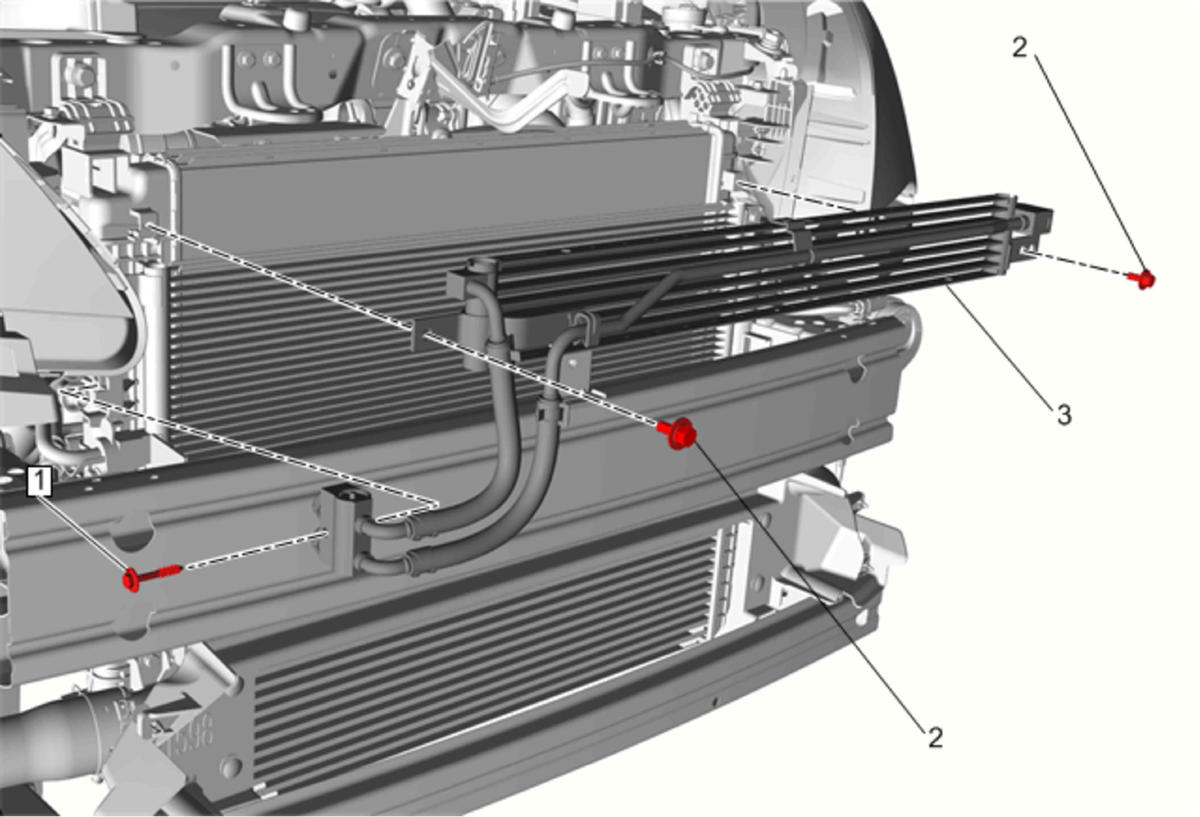

  18. GM4117034Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler (3) - Install - Transmission Fluid Auxiliary Cooler Replacement

  19. GM2851444Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler (2) - Install - Charge Air Cooler Replacement

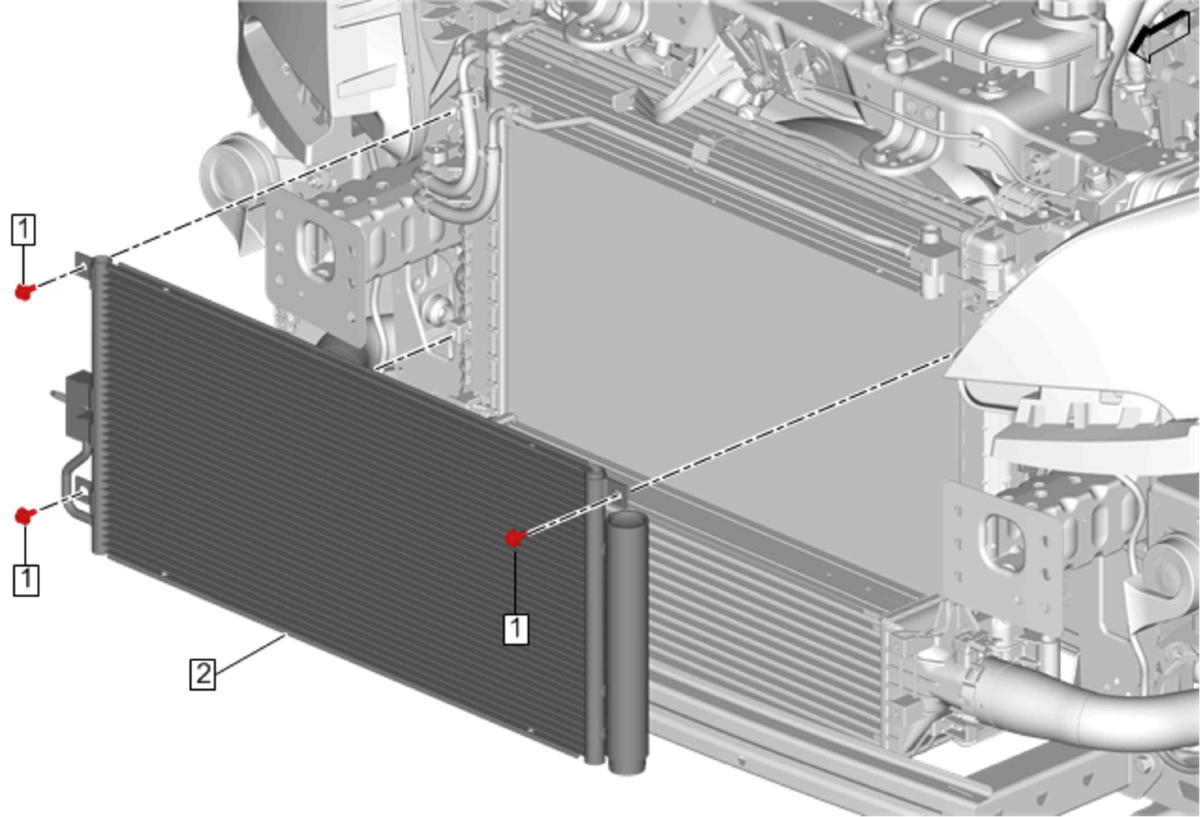

  20. GM4117082Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (2) - Install - Air Conditioning Condenser Replacement

  21. Hood Primary and Secondary Latch - Install - Hood Primary and Secondary Latch Replacement (Chevrolet) , or Hood Primary and Secondary Latch Replacement (Buick)
  22. Fill and inspect the transmission fluid level. Transmission Fluid Level and Condition Check
  23. Recharge the refrigerant. Refrigerant Recovery and Recharging
  24. Fill the cooling system. Cooling System Draining and Filling (BUPYEONG Plant, KOREA) , or Cooling System Draining and Filling (SAN LUIS POTOSI Plant, MEXICO)
  25. Start the engine and check for coolant leaks.
  26. Inspect for refrigerant leaks.
  27. Inspect for transmission fluid leaks.
