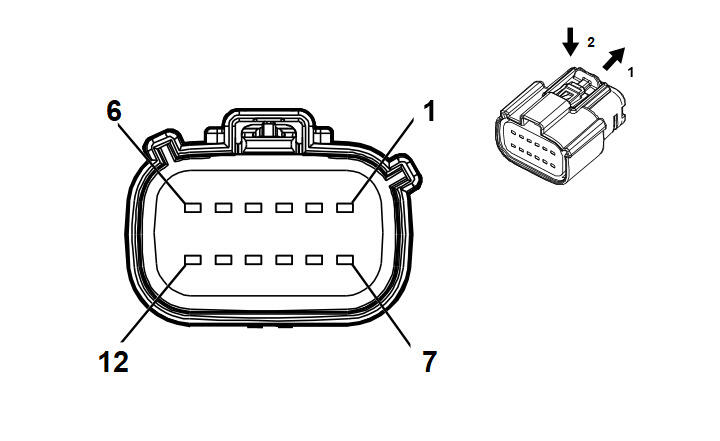

K190 Power Line Communication Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 13586052
- Service Connector: 19333239
- Description: 12-Way F 1.5 MX Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
85528055 |
J-35616-2A (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/BN |
3787 |
High Voltage Energy Management Communication Bus Enable Signal |
I |
- |
| 2 |
0.5 |
WH |
3832 |
High Speed GMLAN Serial Data [-] 6 |
I |
- |
| 3 |
0.5 |
WH |
3832 |
High Speed GMLAN Serial Data [-] 6 |
I |
- |
| 4 |
0.5 |
YE |
3831 |
High Speed GMLAN Serial Data [+] 6 |
I |
- |
| 5 |
0.5 |
YE |
3831 |
High Speed GMLAN Serial Data [+] 6 |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.75 |
GY/GN |
3954 |
Control Pilot Signal 1 |
I |
- |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
