Installation Procedure

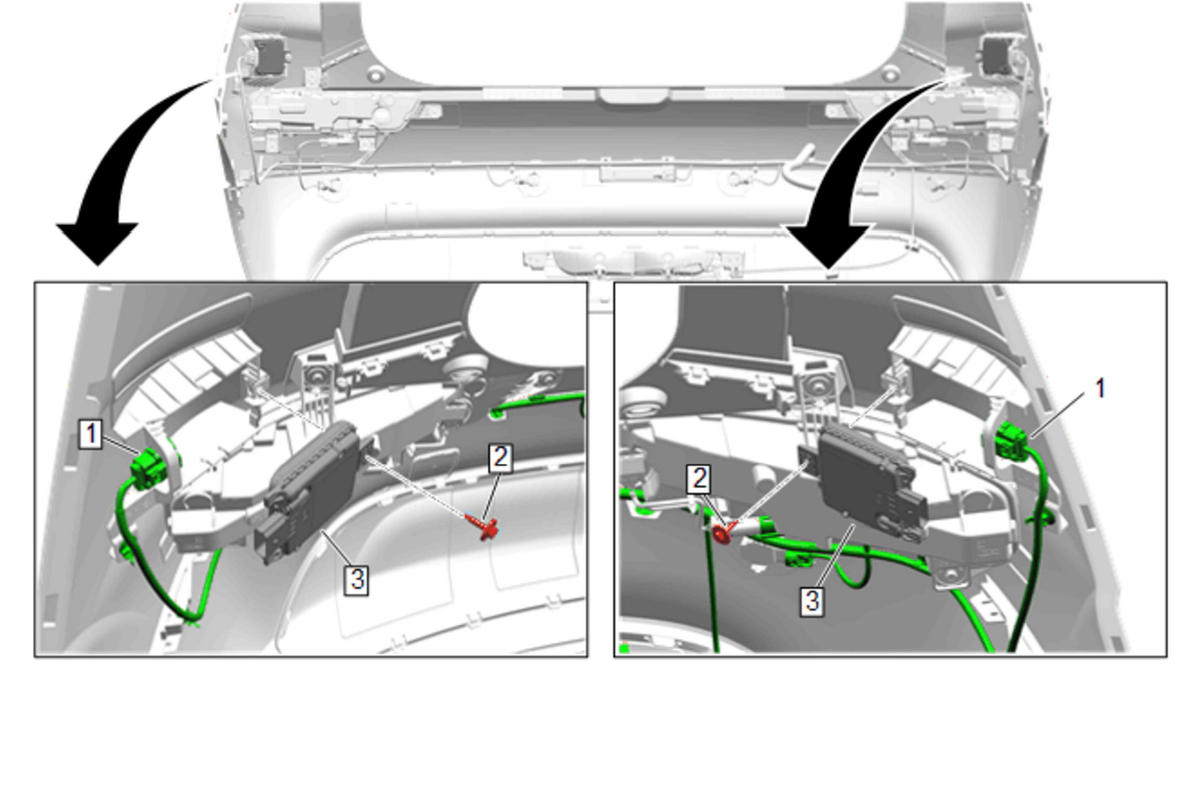

  1. GM5677668Courtesy of GENERAL MOTORS COMPANY

    Side Object Sensing Alert Module (3) - Install

    2. CAUTION:

    Fastener Caution

  2. Side Object Sensing Alert Module Bolt (2) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector. (1)

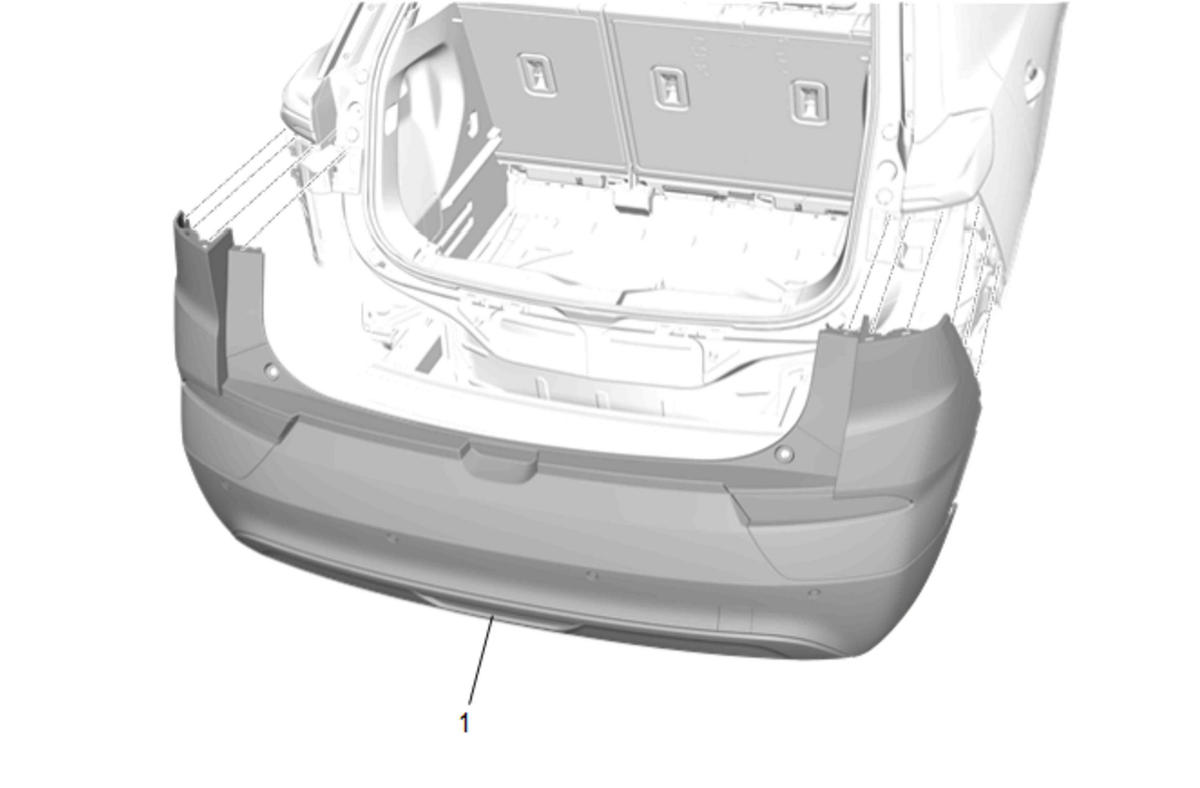

  4. GM5675560Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation

  5. Perform the necessary programming and setup procedure:
    1. - Left Side B218L Side Object Sensor Module - Left: Programming and Setup
    2. - Right Side B218R Side Object Sensor Module - Right: Programming and Setup
