Installation Procedure

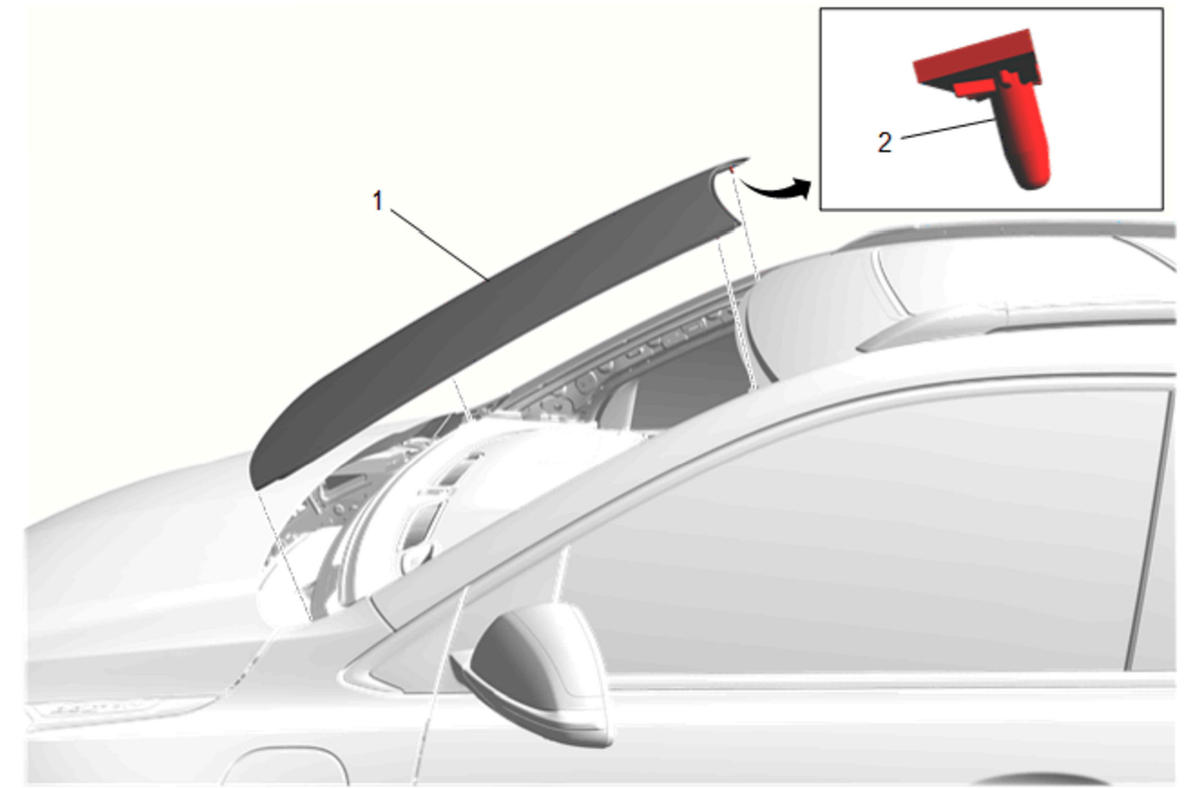

  1. GM5700804Courtesy of GENERAL MOTORS COMPANY

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. With the aid of an assistant, install the windshield (1) and locating pin (2) to the vehicle.
  3. {If equipped} Inside Air Moisture and Windshield Temperature Sensor - Install

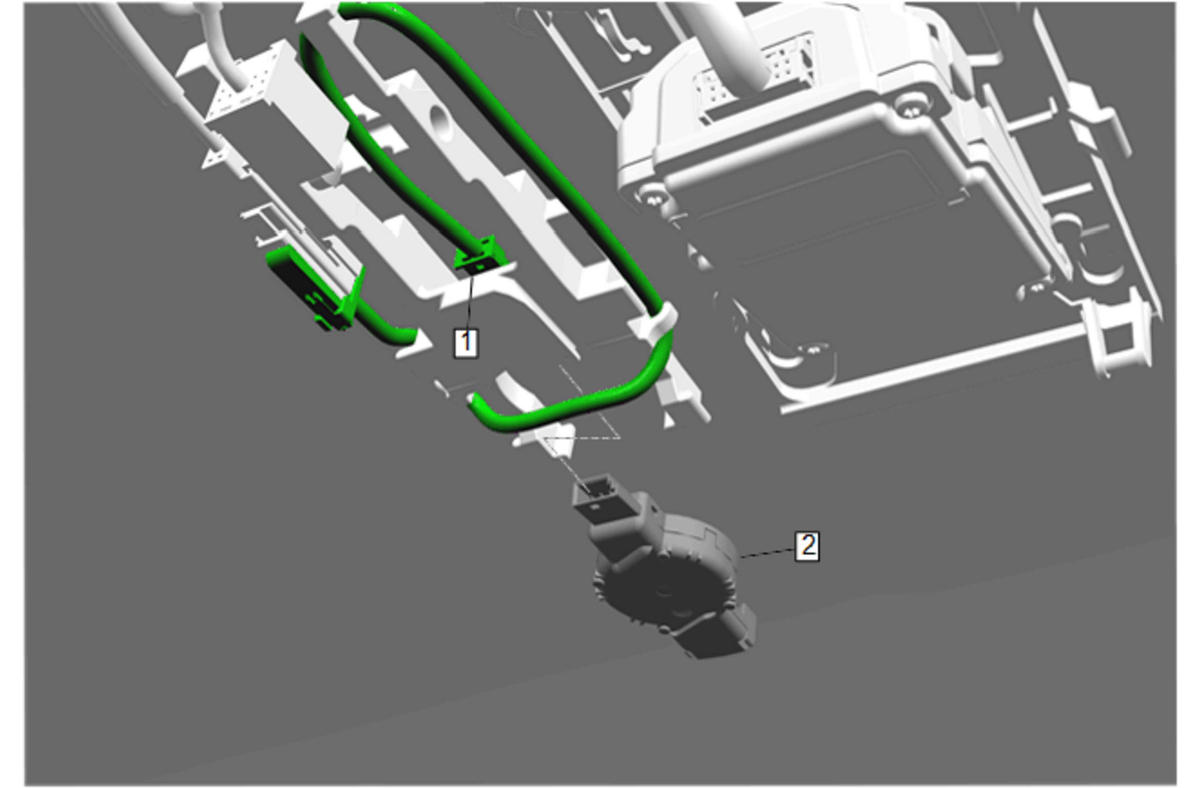

    1. GM5681006Courtesy of GENERAL MOTORS COMPANY

      Inside Air Moisture and Windshield Temperature Sensor (2) - Install

    2. Electrical Connector (1) - Connect

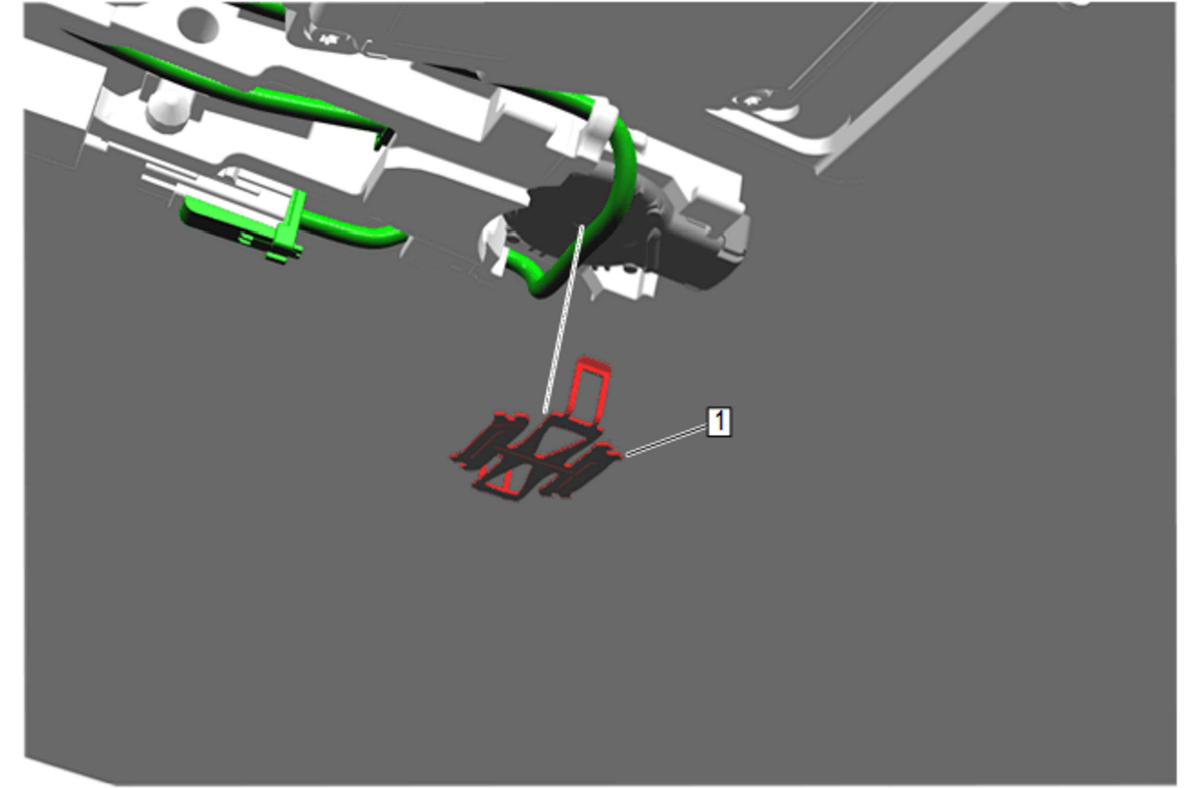

    3. GM5681005Courtesy of GENERAL MOTORS COMPANY

      Install the Inside Air Moisture and Windshield Temperature Sensor Retainer (1)

  4. {If equipped} Windshield Outside Moisture/Ambient Light and Humidity Sensor - Install
    1. GM5681006Courtesy of GENERAL MOTORS COMPANY

      Windshield Outside Moisture/Ambient Light and Humidity Sensor (2) - Install

    2. Electrical Connector (1) - Connect
    3. GM5681005Courtesy of GENERAL MOTORS COMPANY

      Install the Windshield Outside Moisture/Ambient Light and Humidity Sensor Retainer (1)

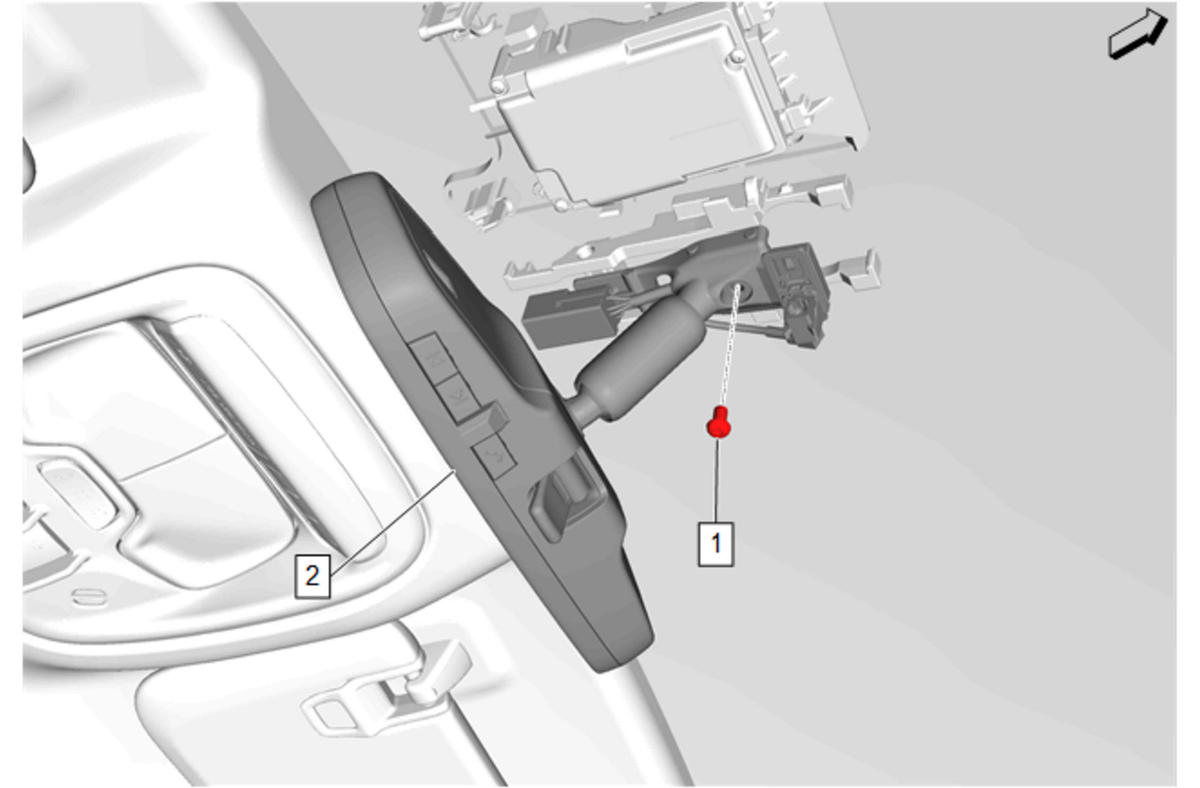

  5. GM5493715Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install

    6. CAUTION:

    Fastener Caution

  6. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  7. Connect the electrical connector.

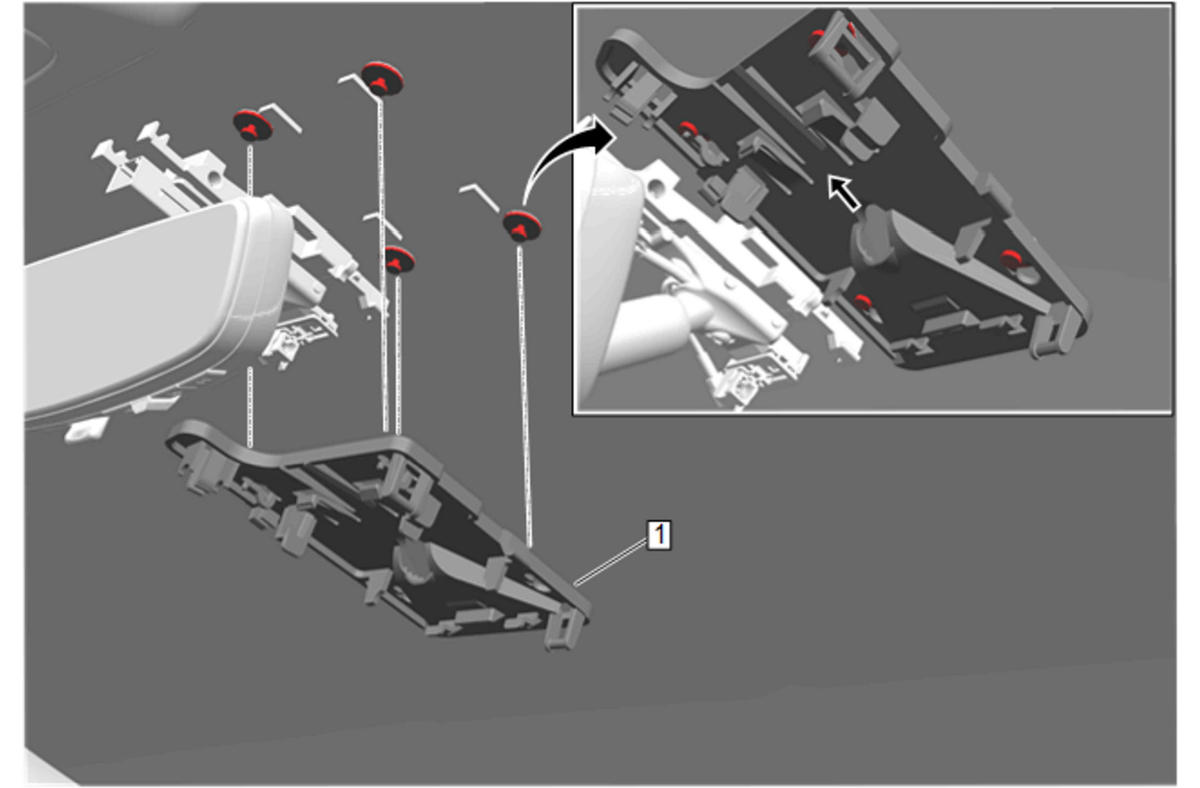

  8. GM5710742Courtesy of GENERAL MOTORS COMPANY

    Multifunction Relay Module Bracket (1) - Install

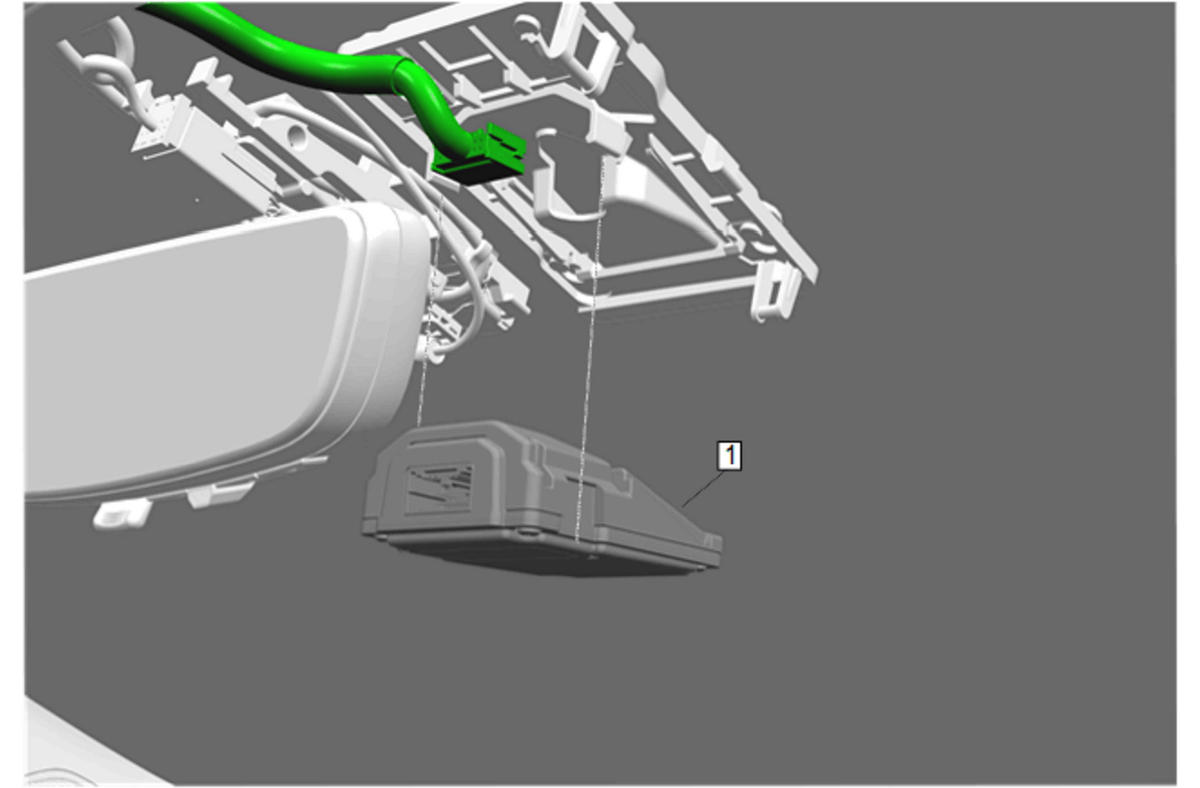

  9. GM5699367Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

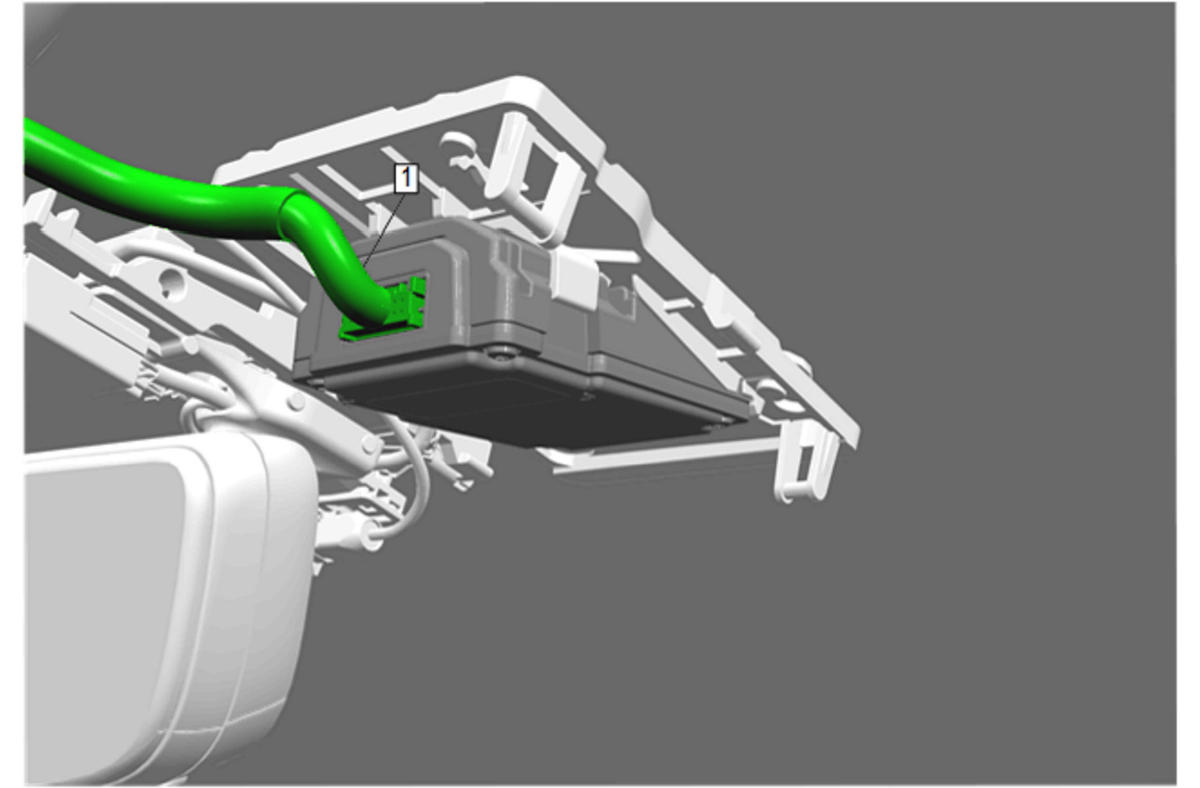

  10. GM5699366Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

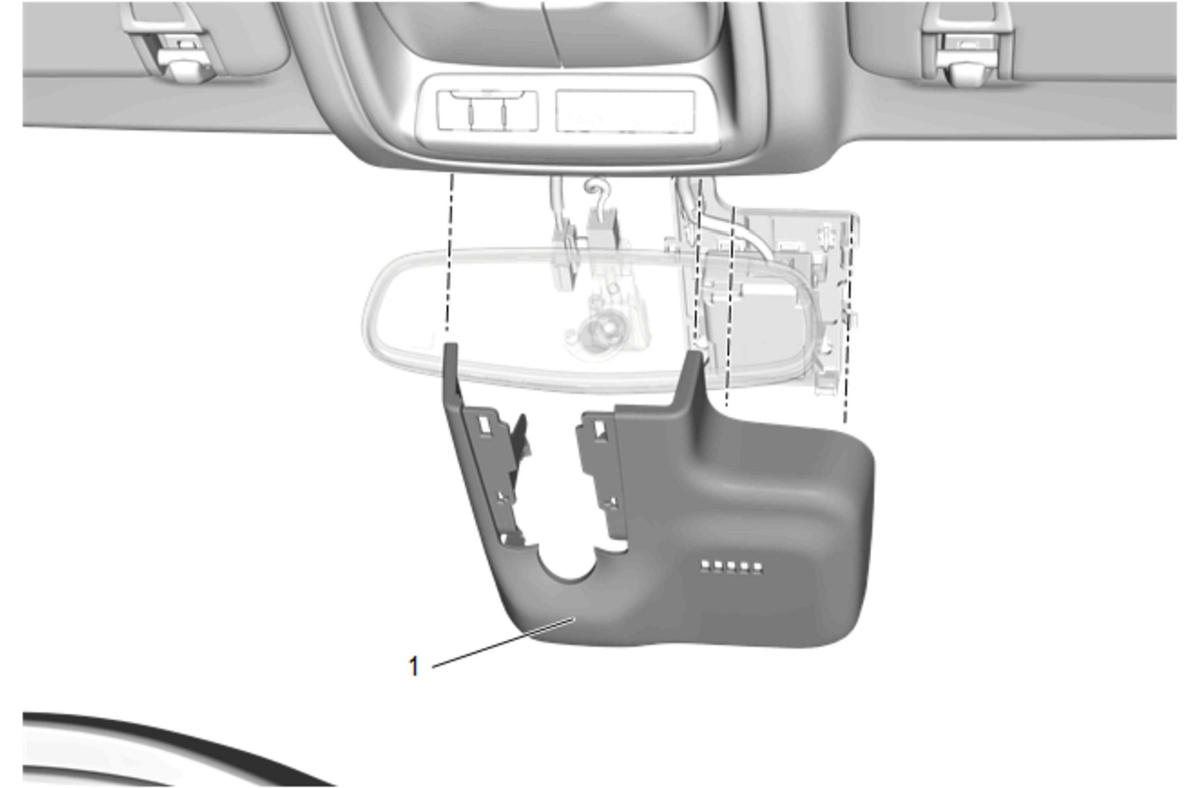

  11. GM5482044Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

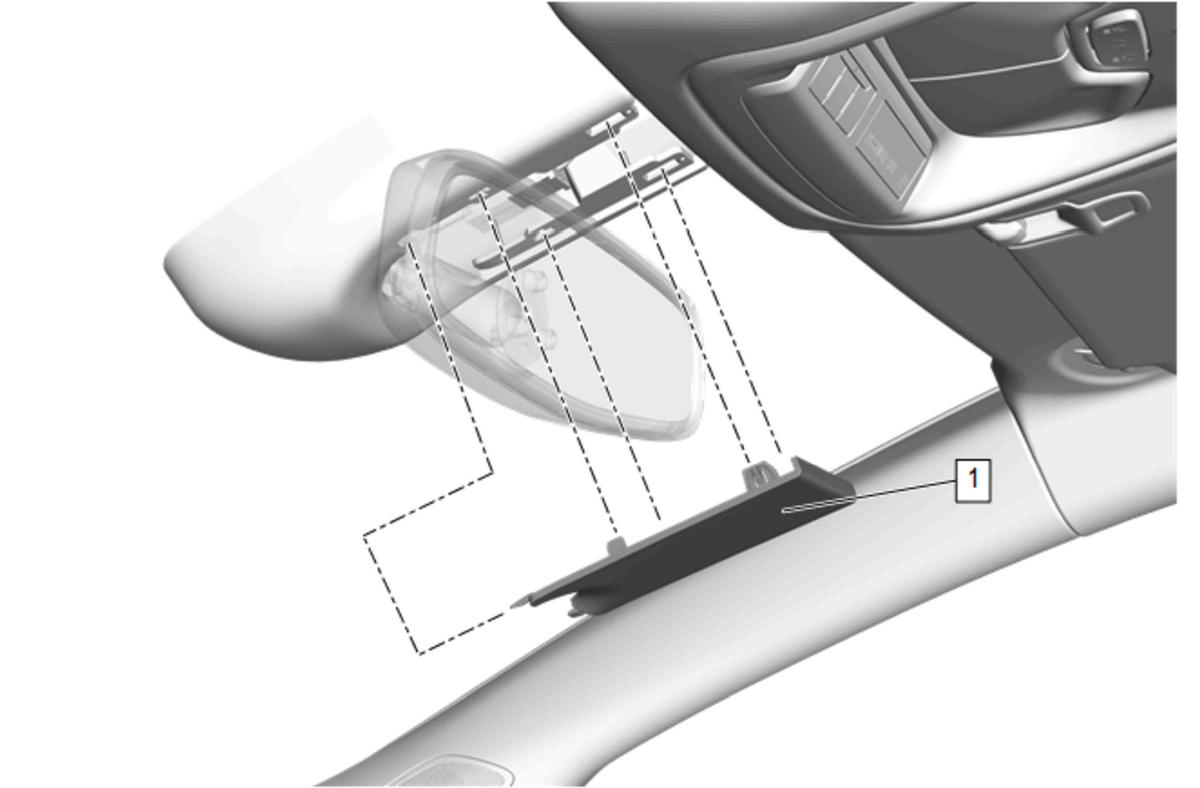

  12. GM5482042Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

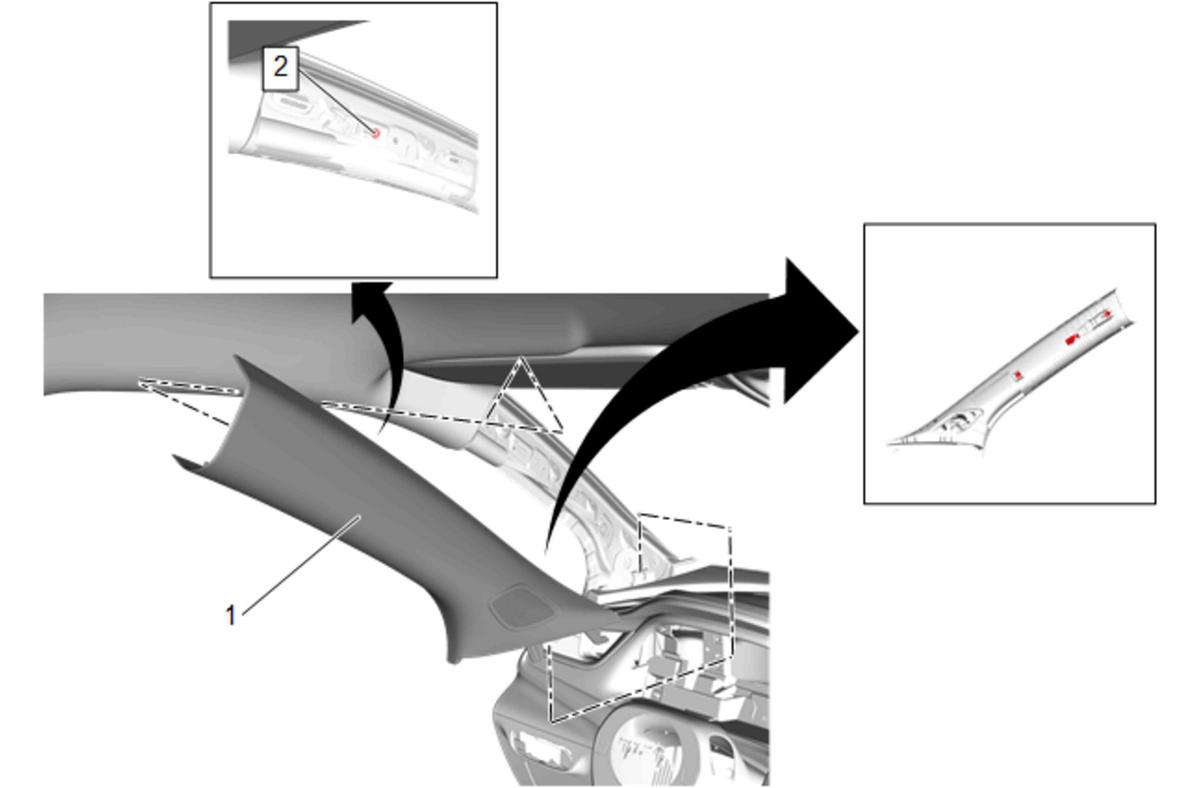

  13. GM5480371Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. [2x]

  14. Windshield Garnish Molding Bolt - Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  15. Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
  16. Windshield Garnish Molding- Left Side and Right Side (1) - Install [2x]
  17. Reposition the weatherstrip as necessary.

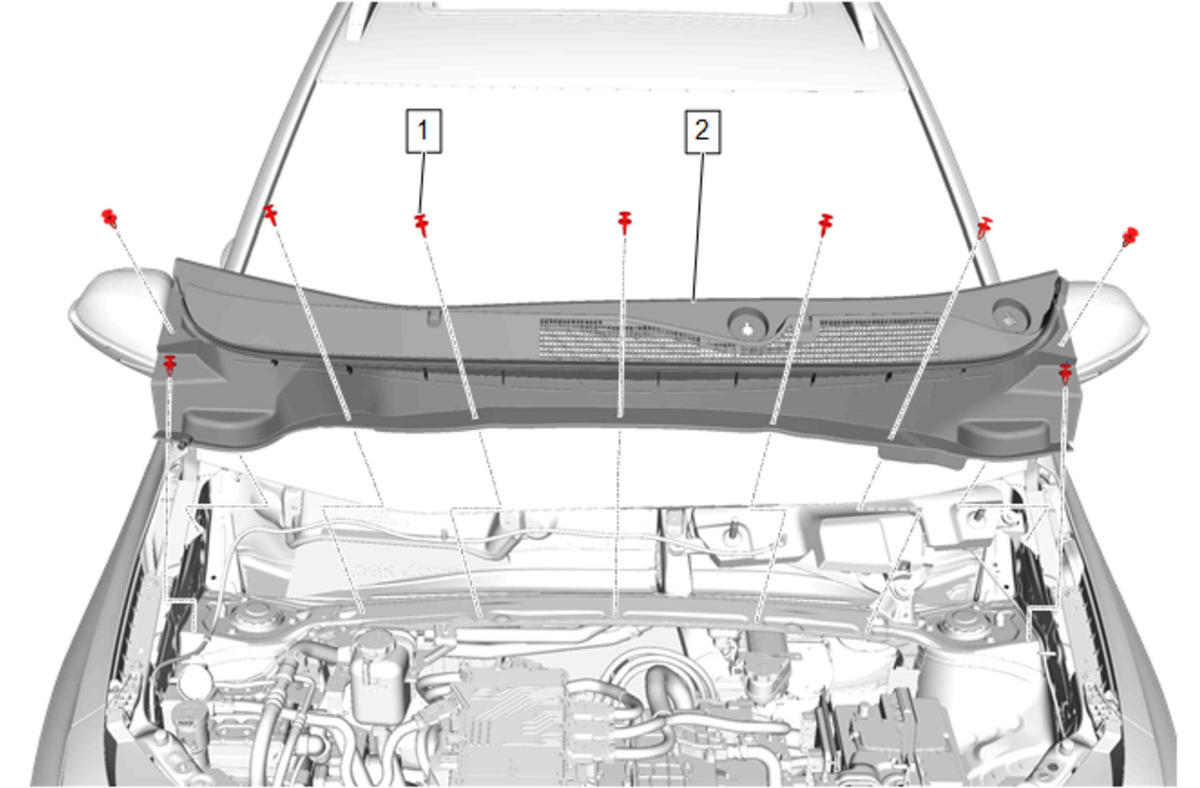

  18. GM5491629Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  19. Windshield Washer Nozzle Hose@Windshield Washer Pump Hose - Connect
  20. Air Inlet Grille Panel Retainer (1) - Install [9x]

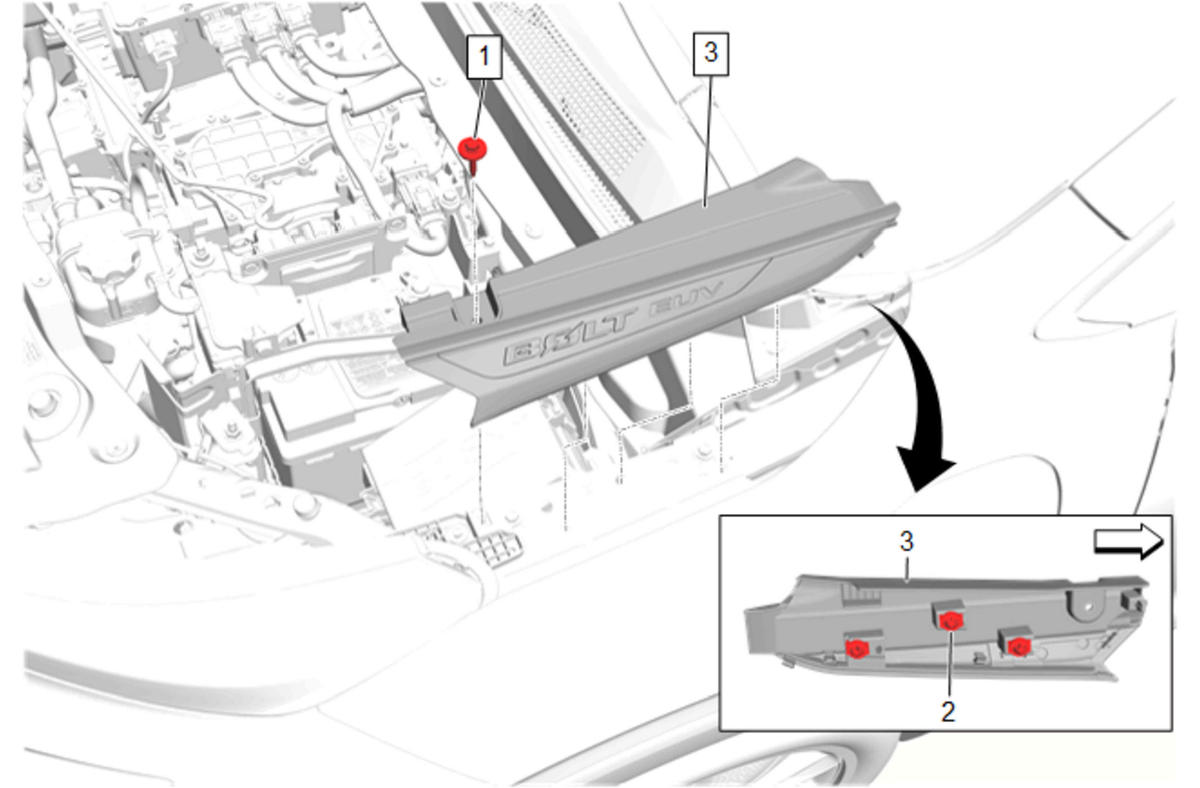

  21. GM5666188Courtesy of GENERAL MOTORS COMPANY

    Body Side Upper Front Applique (3) - Install

  22. Body Side Upper Front Applique Bolt (1) - Install and tighten - Fastener Specifications

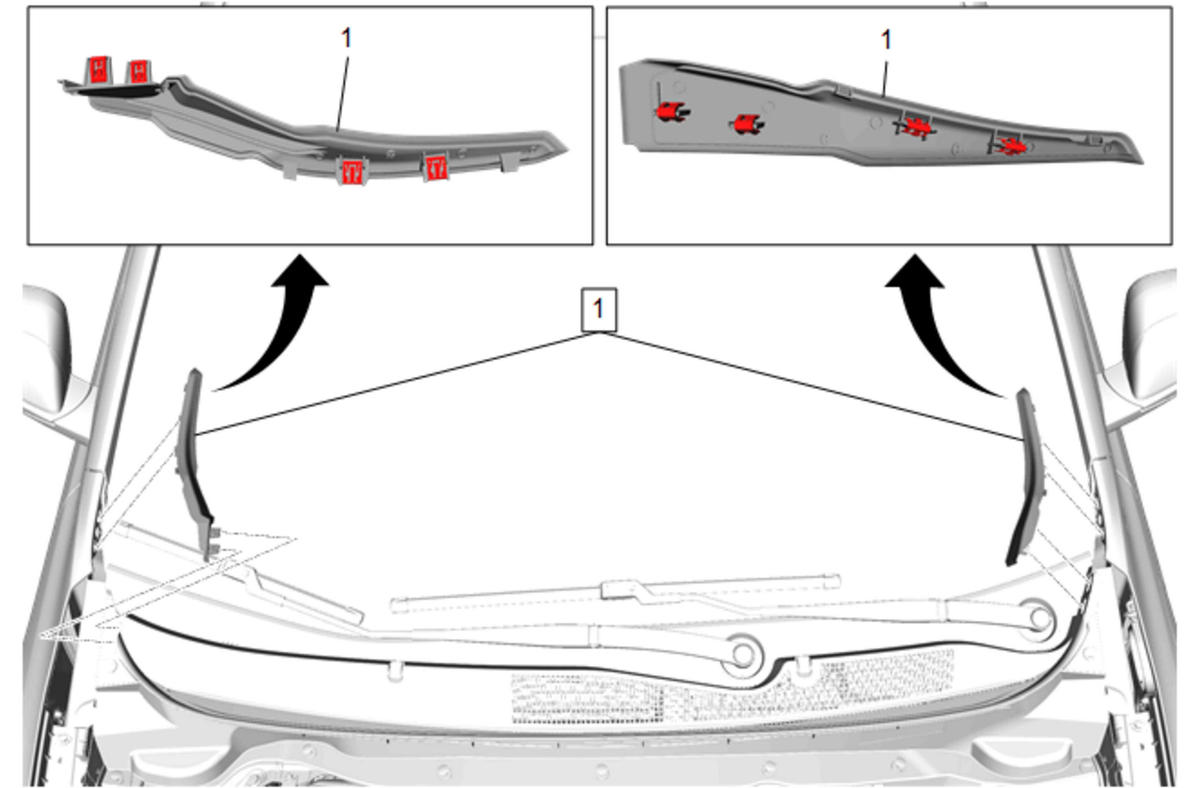

  23. GM5491617Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension (1) - Install

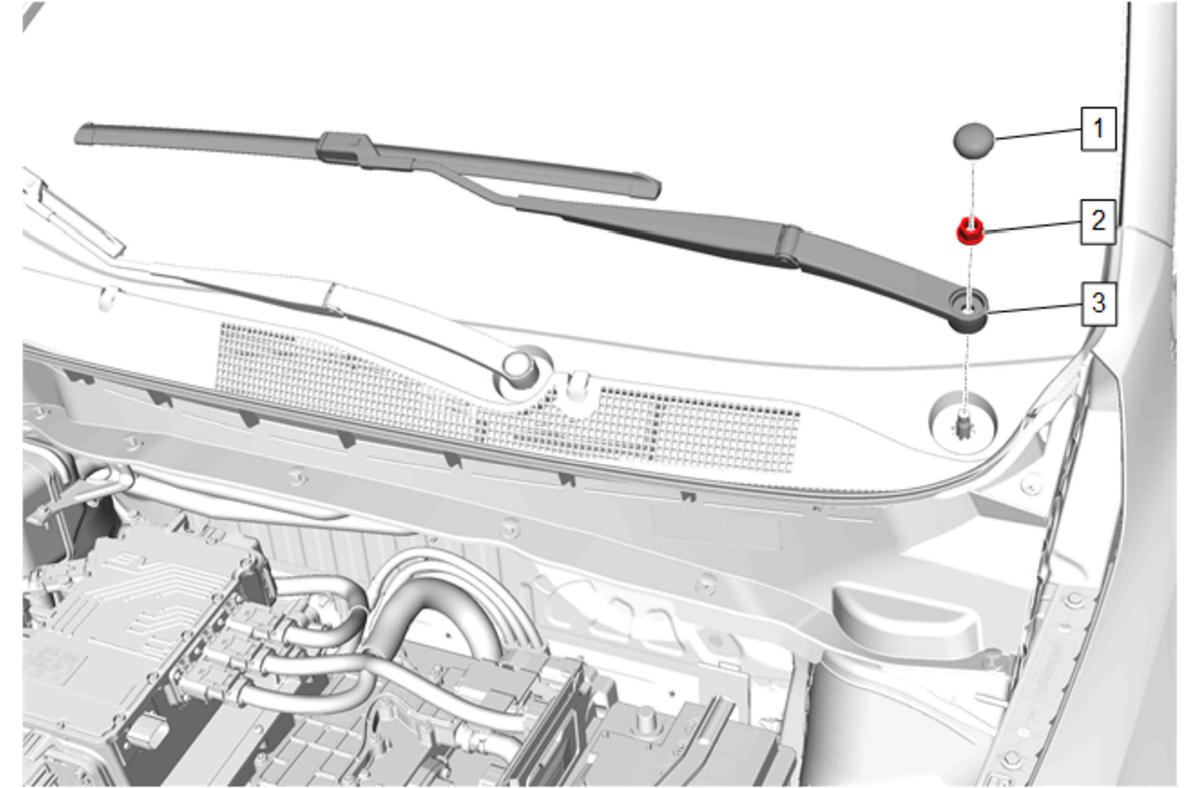

  24. GM5493737Courtesy of GENERAL MOTORS COMPANY

    Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).

  25. Position the windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
  26. Windshield Wiper Arm Nut (2) - Install and tighten - Fastener Specifications
  27. Windshield Wiper Arm Finish Cap (1) - Install
  28. Perform the necessary programming and setup procedure: B174W Frontview Camera - Windshield: Programming and Setup
  29. Enable the SIR System. SIR Disabling and Enabling
  30. GM5532162Courtesy of GENERAL MOTORS COMPANY

    If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.

  31. Lubricate the windshield with clean washer fluid.
  32. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  33. Ensure the windshield wipers are in the full park position.
