Fastener Specifications

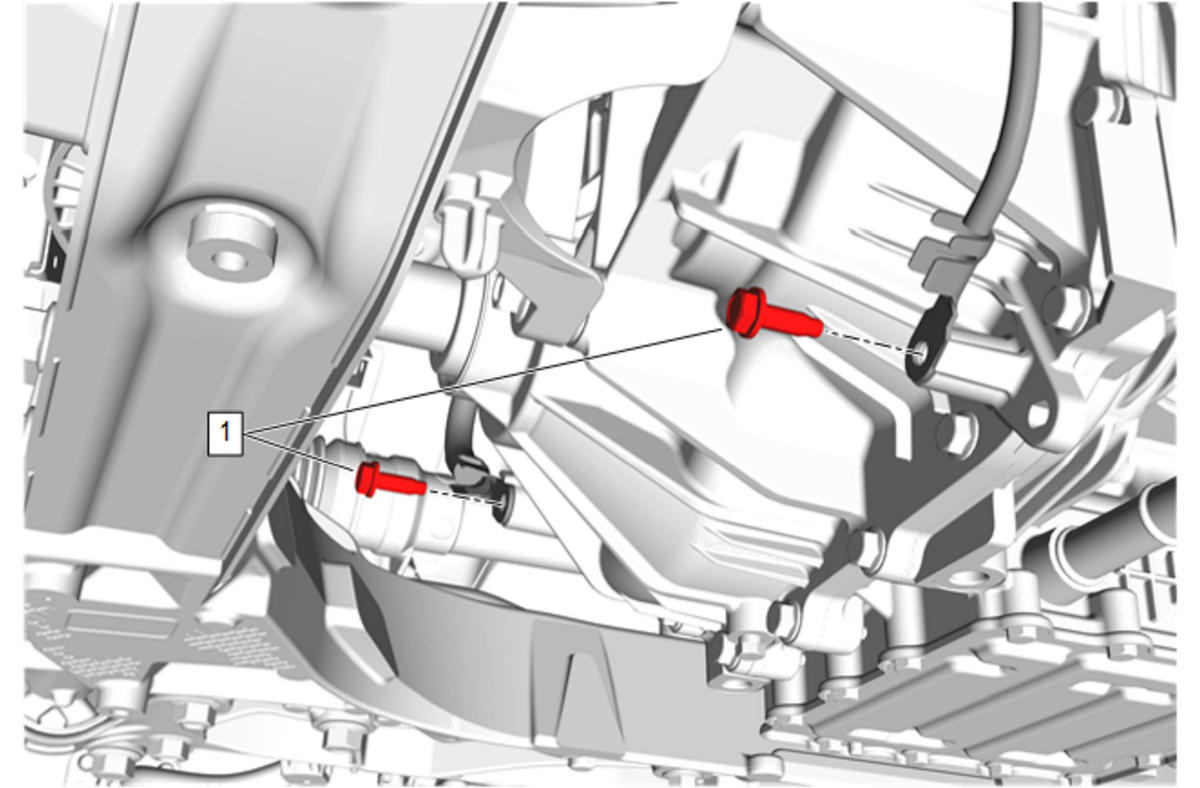

GM5775111Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Battery Negative Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Drivetrain and Front Suspension Frame Removal and Installation

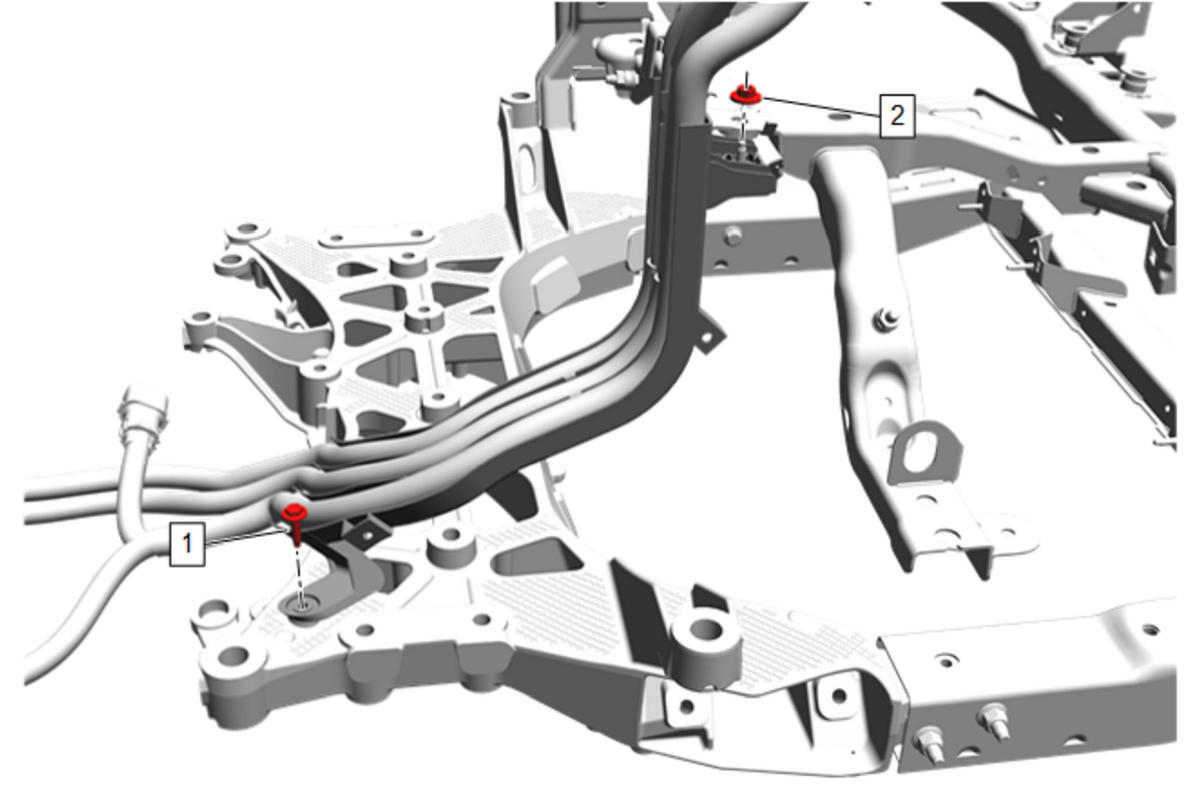

GM5775121Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Battery Positive and Negative Cable Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Battery Positive and Negative Cable Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Frame Removal and Installation
2 Battery Positive and Negative Cable Bracket Nut - - 9 N.m (80 lb in) Drivetrain and Front Suspension Frame Removal and Installation

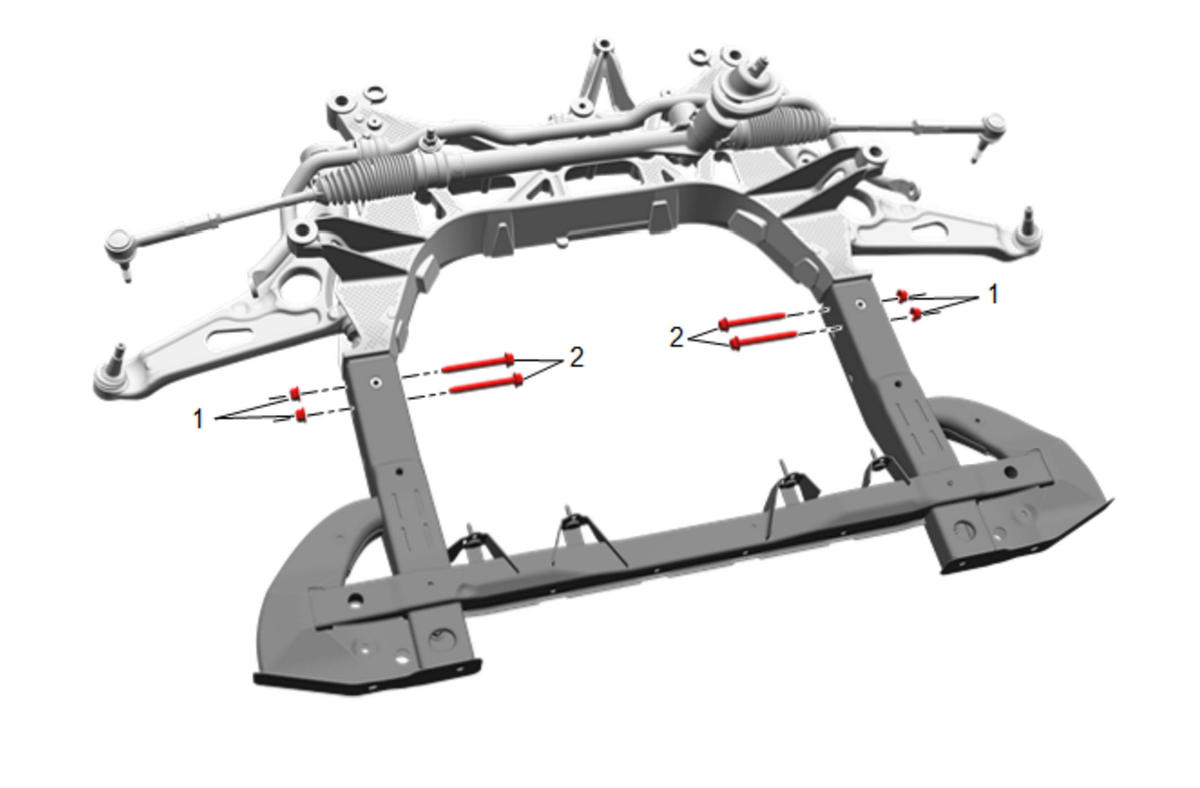

GM5775112Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Drivetrain and Front Suspension Crossmember Extension

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Nut [4x] - - 58 N.m (43 lb ft) Drivetrain and Front Suspension Crossmember Extension Replacement
2 Drivetrain and Front Suspension Crossmember Extension Rear Bolt [4x] - - - Drivetrain and Front Suspension Crossmember Extension Replacement

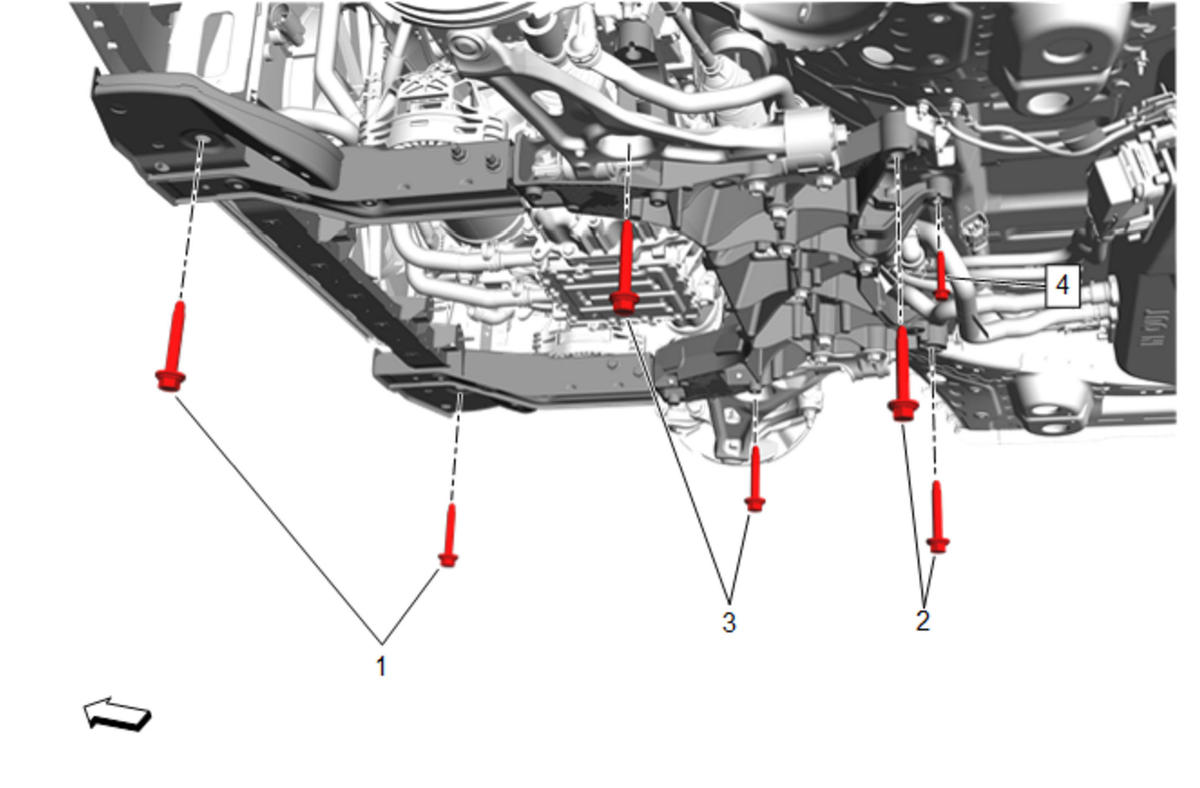

GM5775113Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Drivetrain and Front Suspension Cradle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Front Bolt [2x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Drivetrain and Front Suspension Frame Removal and Installation
2 Drivetrain and Front Suspension Cradle Rear Bolt [2x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Drivetrain and Front Suspension Frame Removal and Installation
3 Drivetrain and Front Suspension Cradle Intermediate Bolt [2x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 60 - 75 degrees		 Drivetrain and Front Suspension Frame Removal and Installation
4 Drivetrain and Front Suspension Crossmember Center Bolt - - 58 N.m (43 lb ft) Drivetrain and Front Suspension Frame Removal and Installation

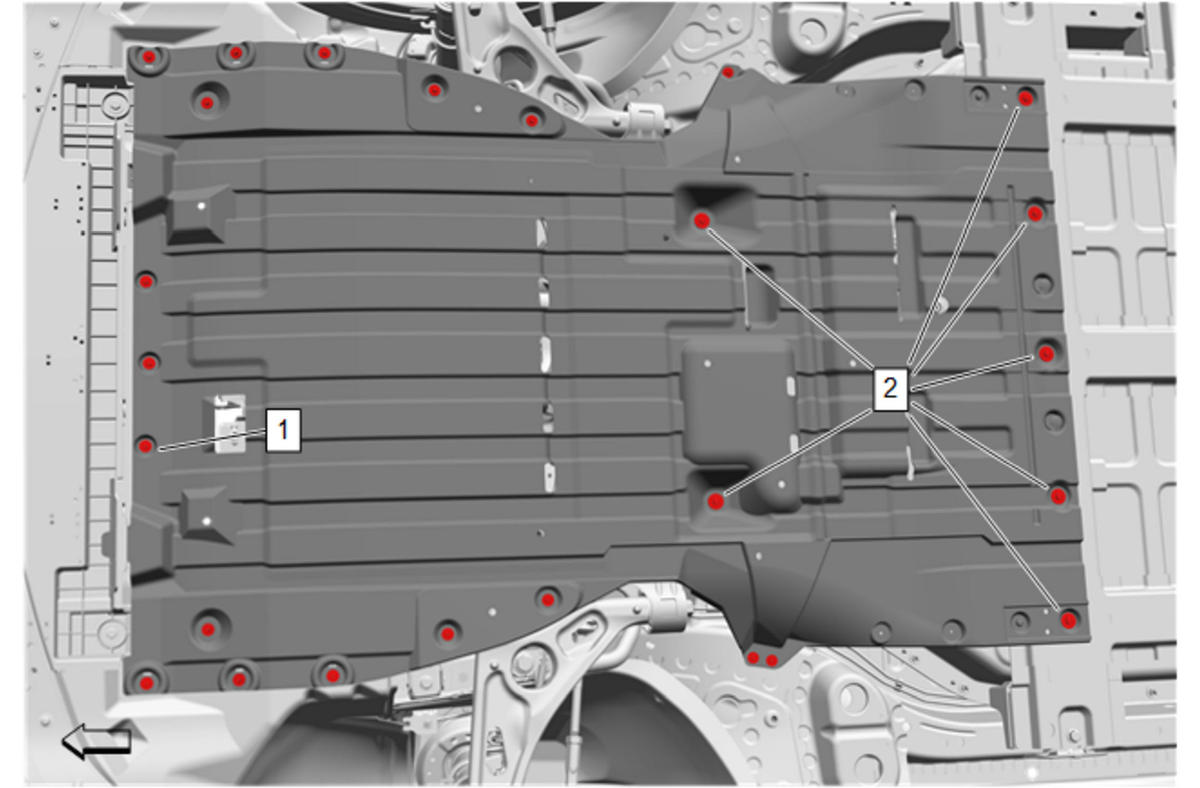

GM5775120Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Compartment Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Insulator Bolt [18x] - - 2.5 N.m (22 lb in) Front Compartment Air Deflector Replacement
2 Front Compartment Insulator Bolt [7x] - - 9 N.m (80 lb in) Front Compartment Air Deflector Replacement

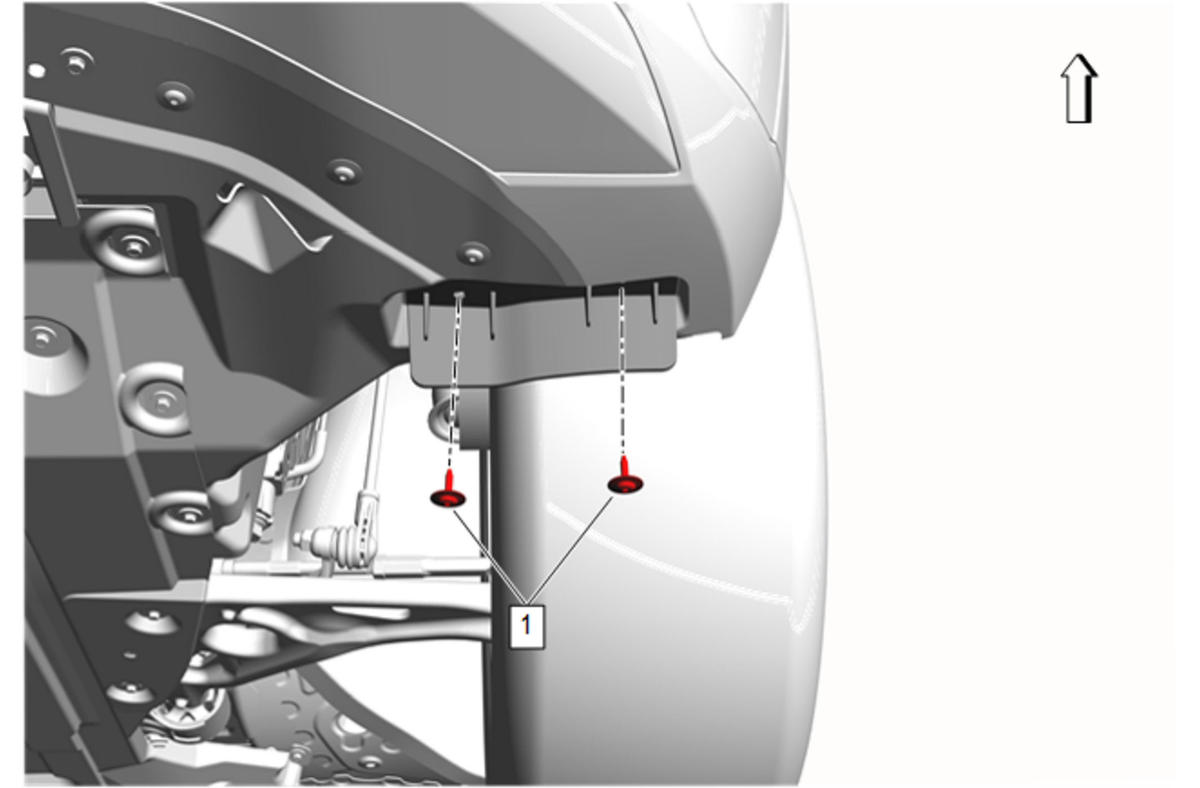

GM5775114Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Tire Front Air Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Tire Front Air Deflector Bolt [2x] - - 2.5 N.m (22 lb in) Front Tire Front Air Deflector Replacement
GM5661891Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Front Wheelhouse Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [13x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement

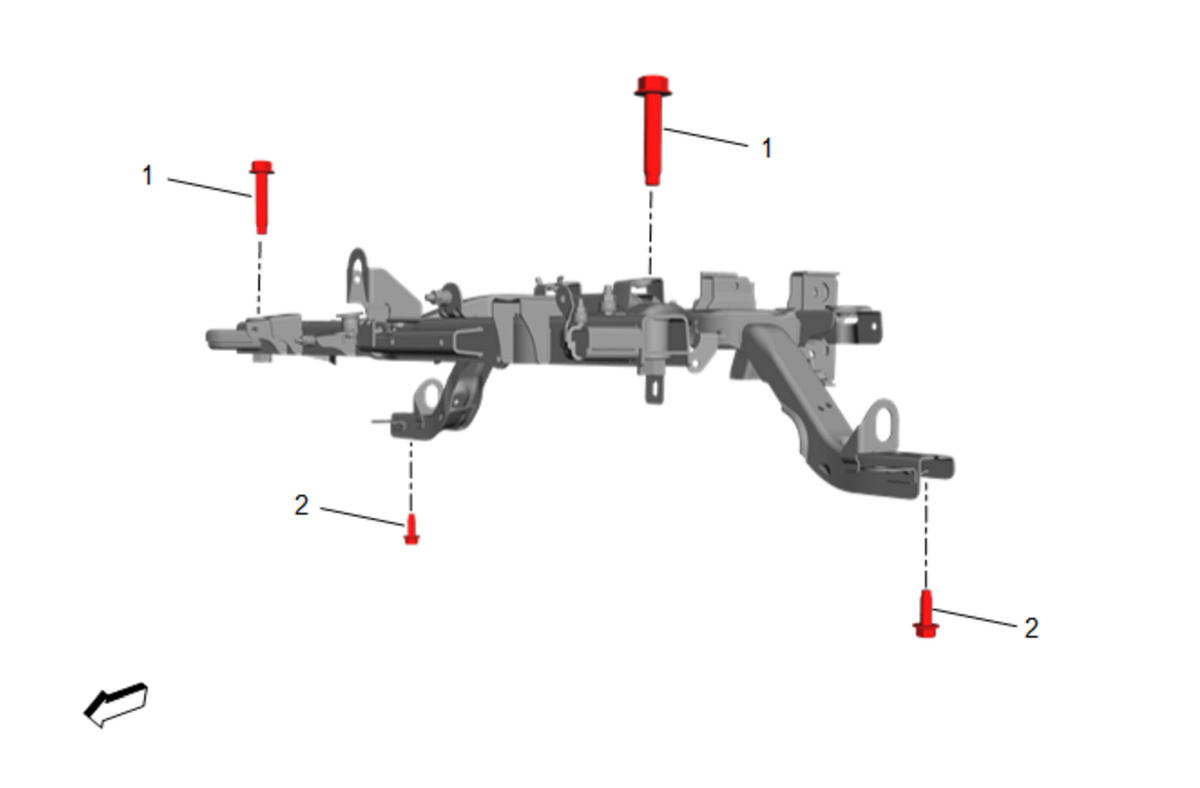

GM5775115Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Power Electric Carrier Frame

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Electric Carrier Frame Bolt [2x] - - 160 N.m (118 lb ft) Power Electric Carrier Frame Replacement
2 Power Electric Carrier Frame Bolt [2x] - - 58 N.m (43 lb ft) Power Electric Carrier Frame Replacement

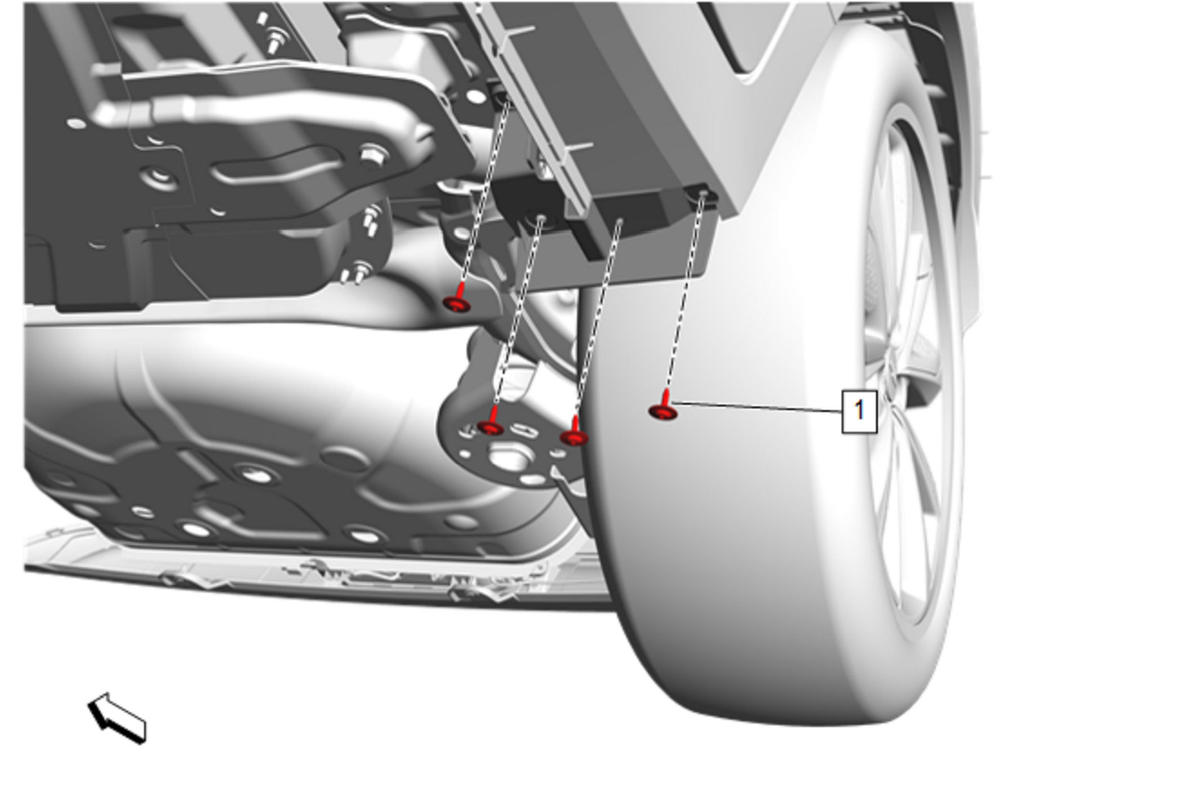

GM5775116Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Tire Front Air Deflector (Left Side)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement - Left Side

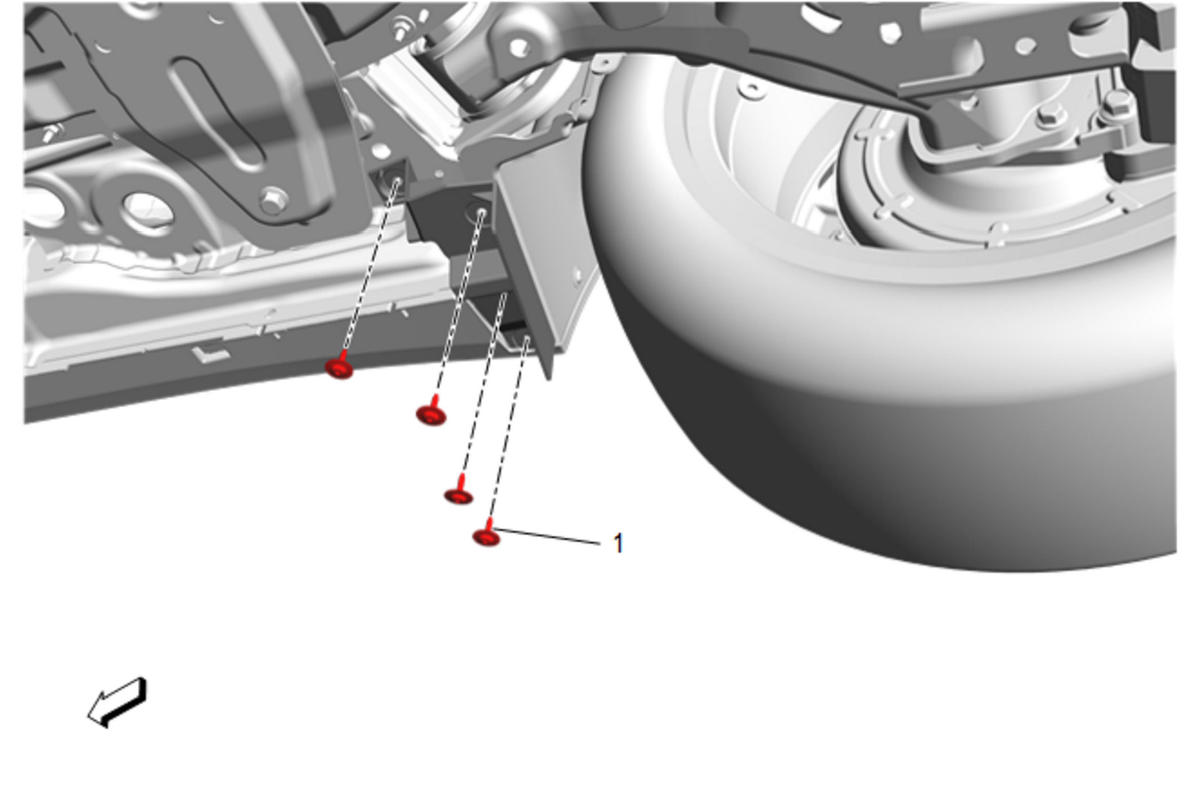

GM5775117Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Tire Front Air Deflector (Right Side)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement - Right Side

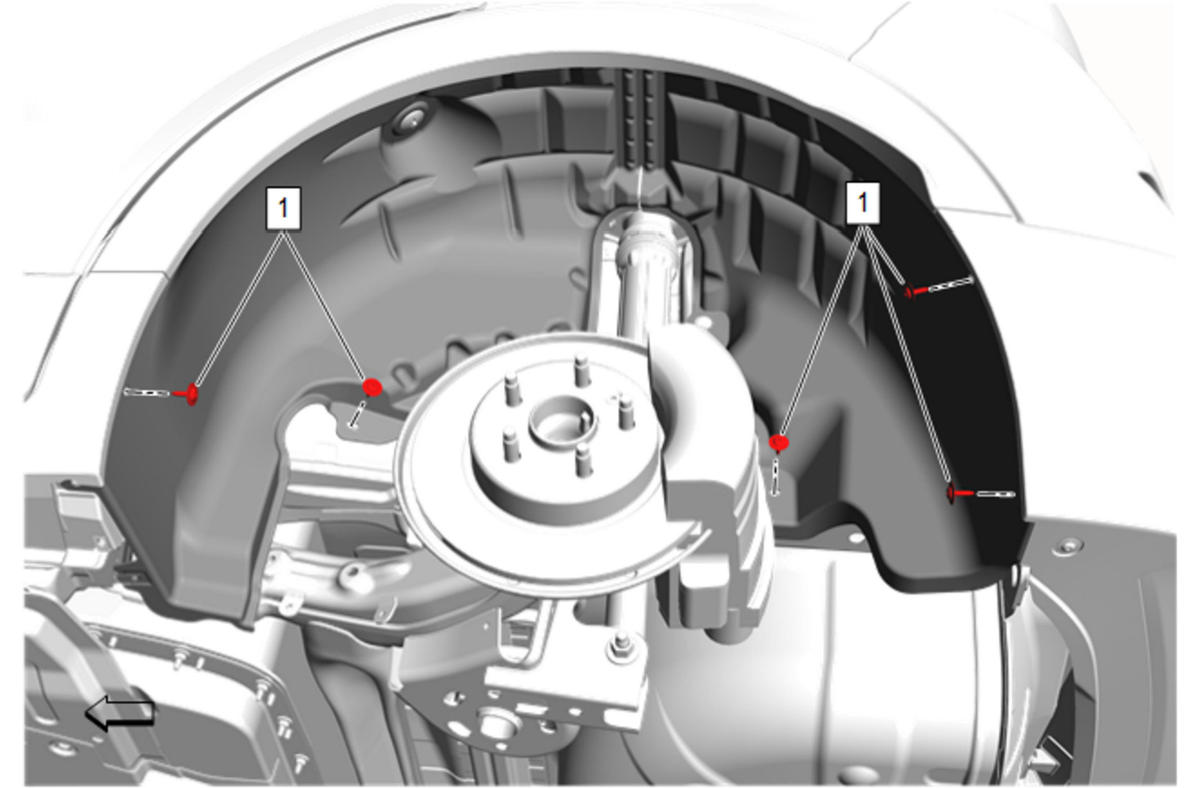

GM5775118Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Wheelhouse Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [5x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Replacement

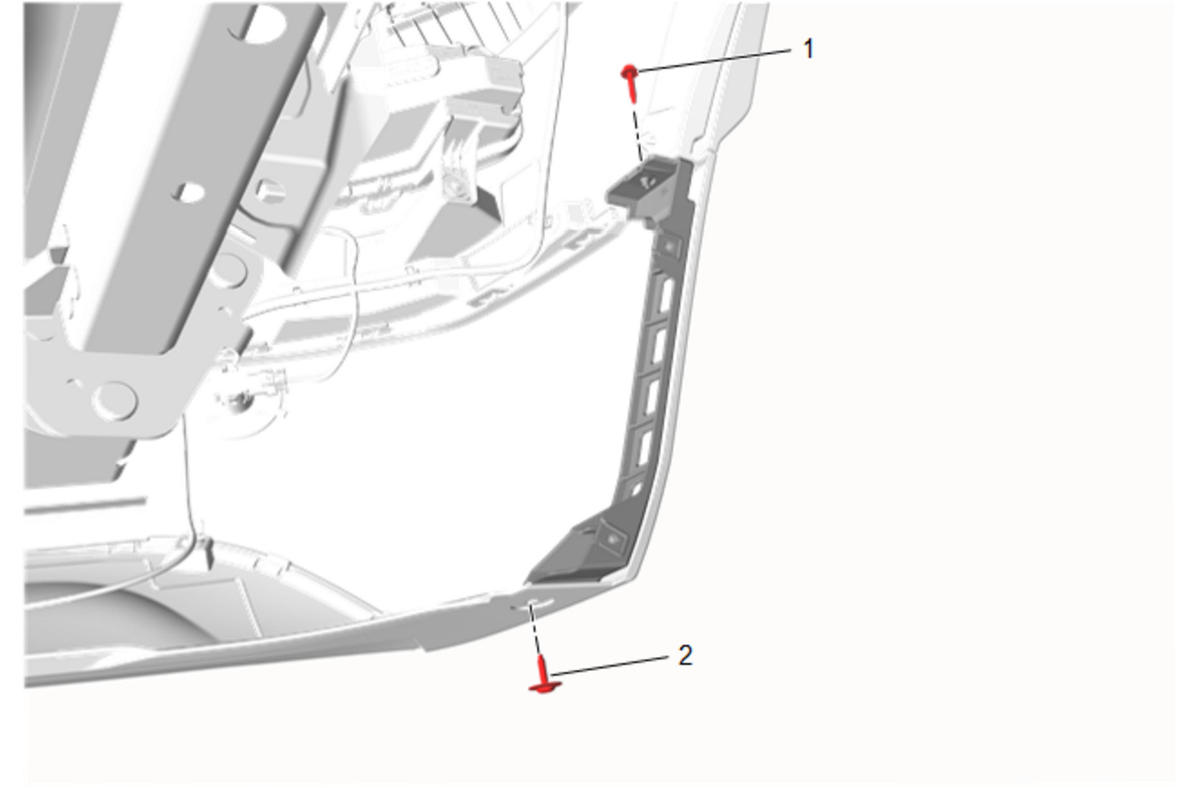

GM5775119Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Rear Wheelhouse Liner Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Bracket Replacement
2 Rear Bumper Fascia Bolt - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Bracket Replacement
