Installation Procedure

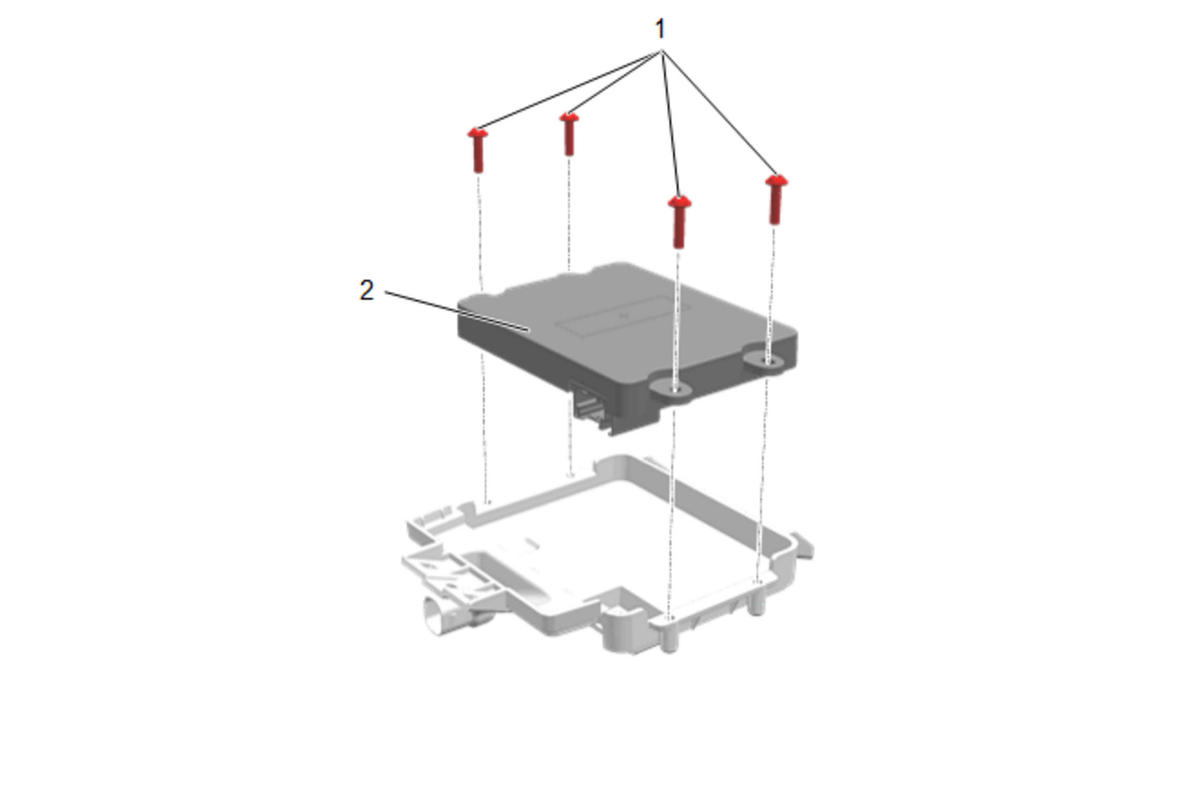

  1. GM5666168Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module (2) @ Wireless Charging System Module Bracket - Install

    2. CAUTION:

    Fastener Caution

  2. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications

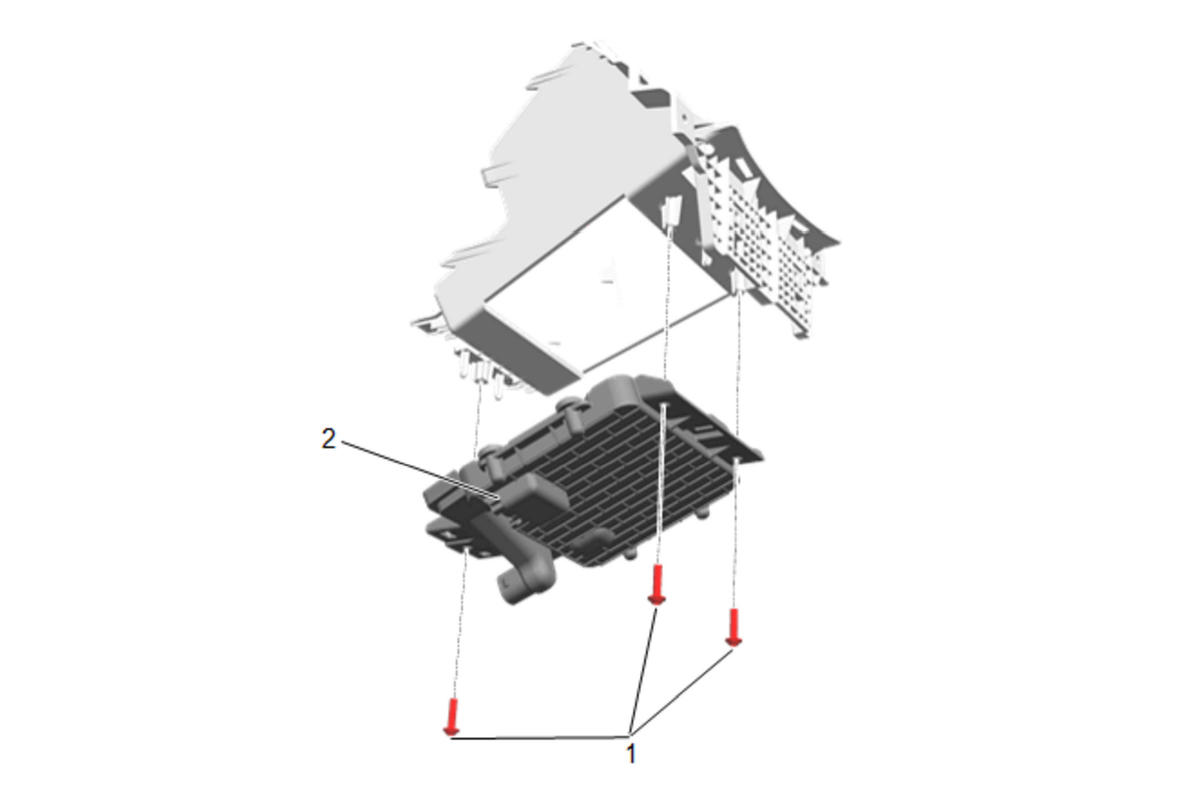

  3. GM5666166Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket (2) - Install

  4. Wireless Charging System Module Bolt (1) - Install and tighten [3x] - Fastener Specifications

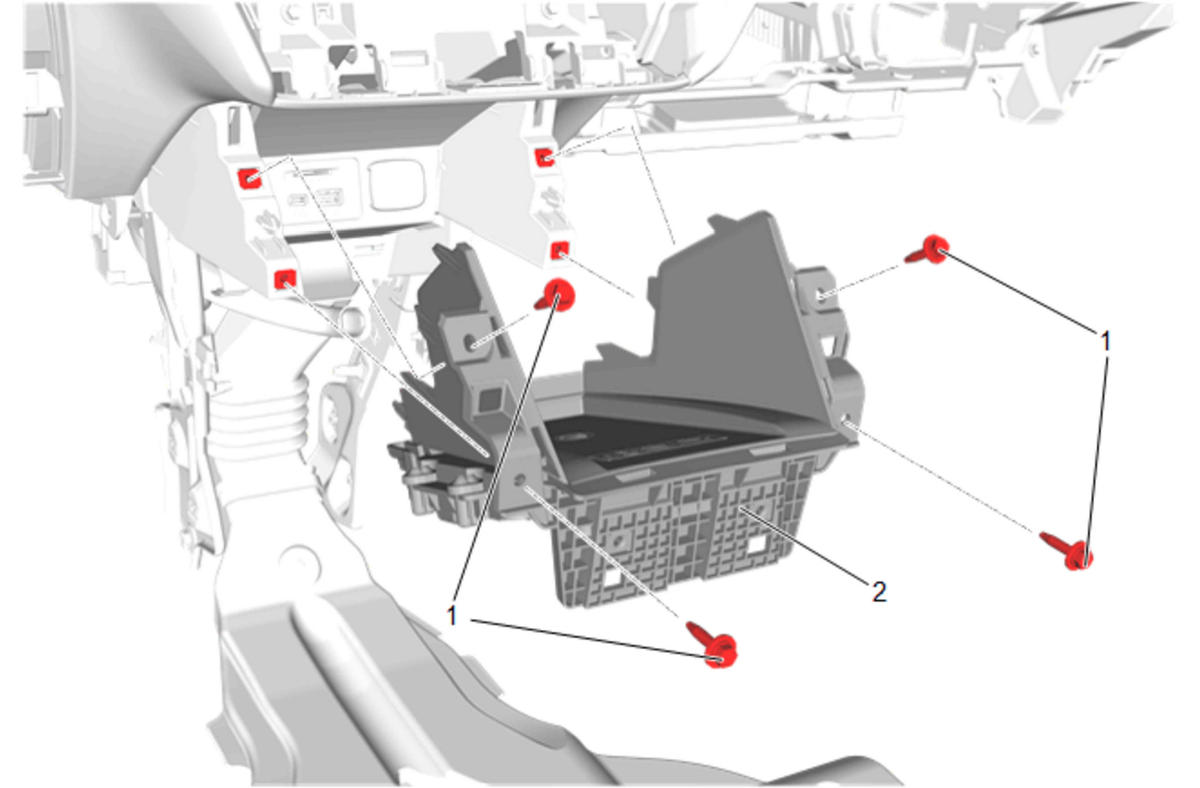

  5. GM5665905Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Stowage Tray (2) - Install

  6. Connect the electrical connectors.
  7. Instrument Panel Stowage Tray Bolt (1) - Install and tighten [4x] - Fastener Specifications
  8. GM5436032Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Removal and Installation
