Installation Procedure
WARNING: This page is about a different car, the 2022 Chevrolet Bolt EUV. However, it is still accessible from the selected car via links, so may be relevant.

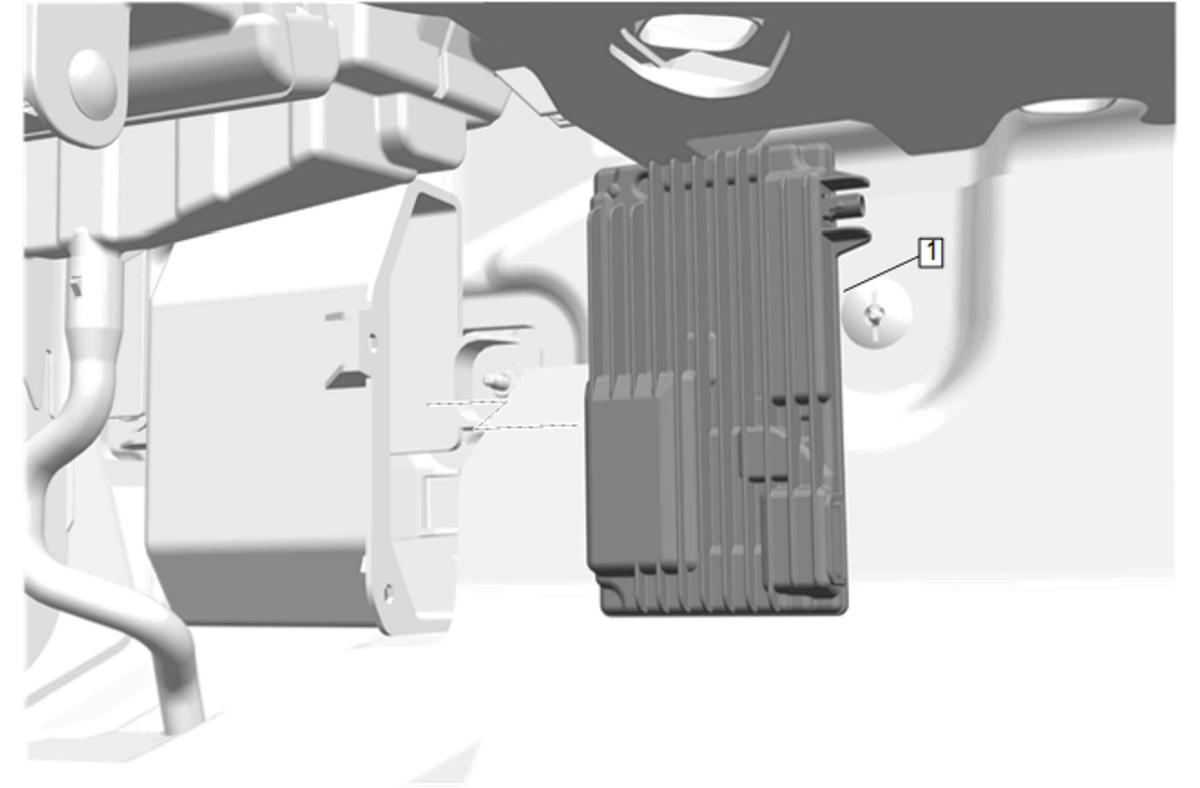

Driver Monitoring System Module (1) - Install

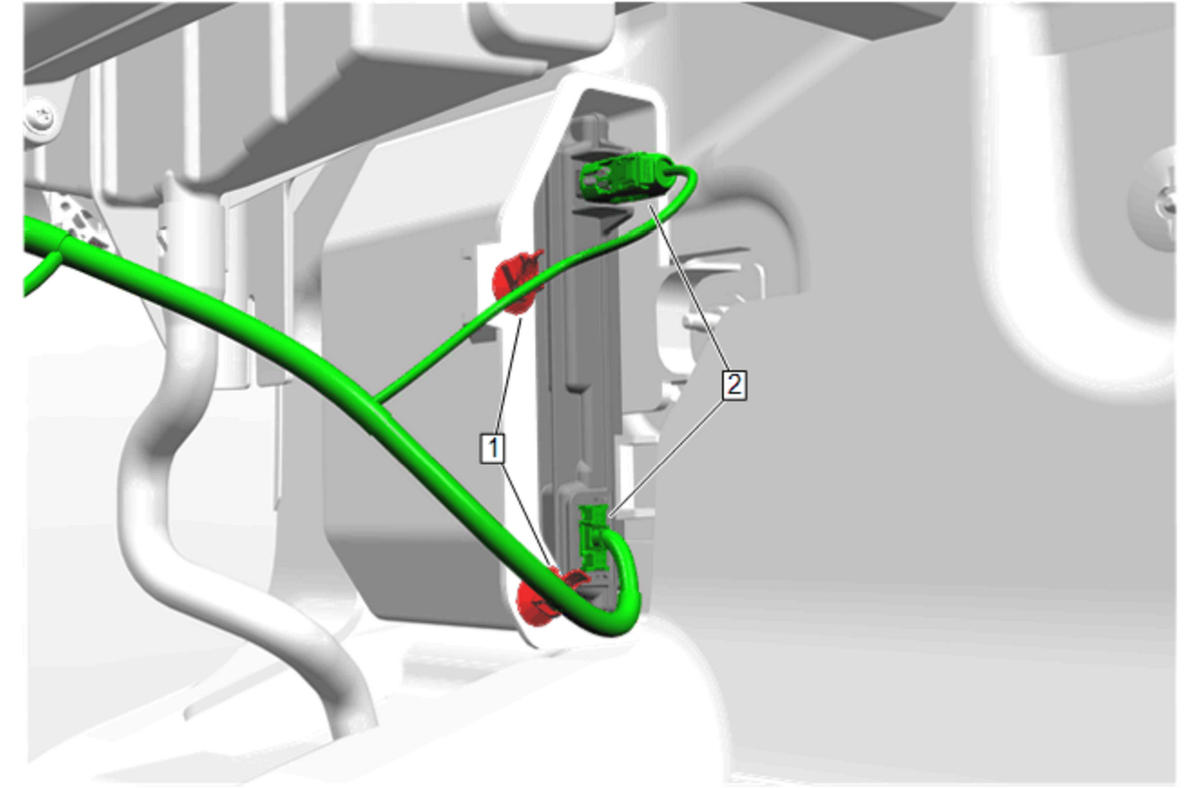

Electrical Connector (2) - Connect [2x]
- Retainer (1) - Install [2x]

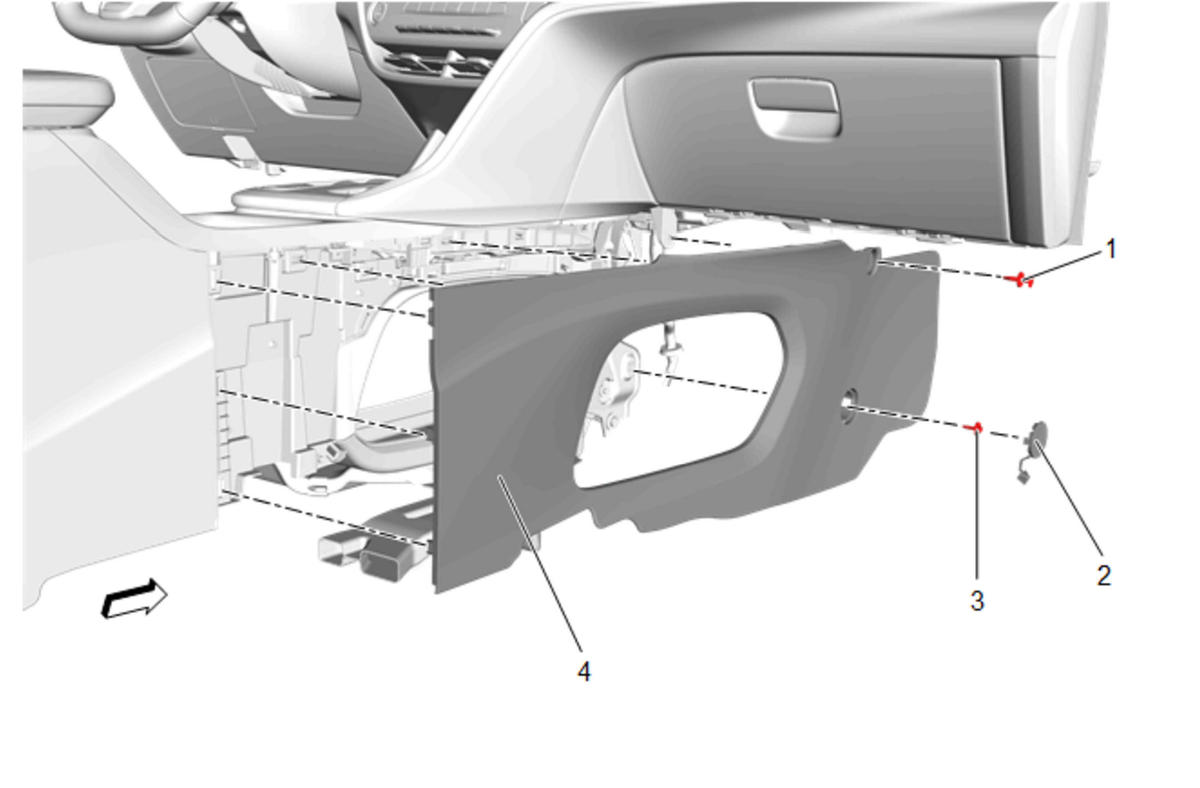

Front Floor Console Extension Panel - Right Side (4) - Install
- Front Floor Console Extension Panel Bolt (3) - Install and tighten - Fastener Specifications
- Front Floor Console Extension Panel Bolt Access Hole Cover (2) - Install
- Front Floor Console Extension Panel Retainer (1) - Install
- Return the seat to its original position.
- Perform the necessary programming and setup procedure: K180 Driver Monitoring System Control Module: Programming and Setup
CAUTION:
Refer to Fastener Caution .
