Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

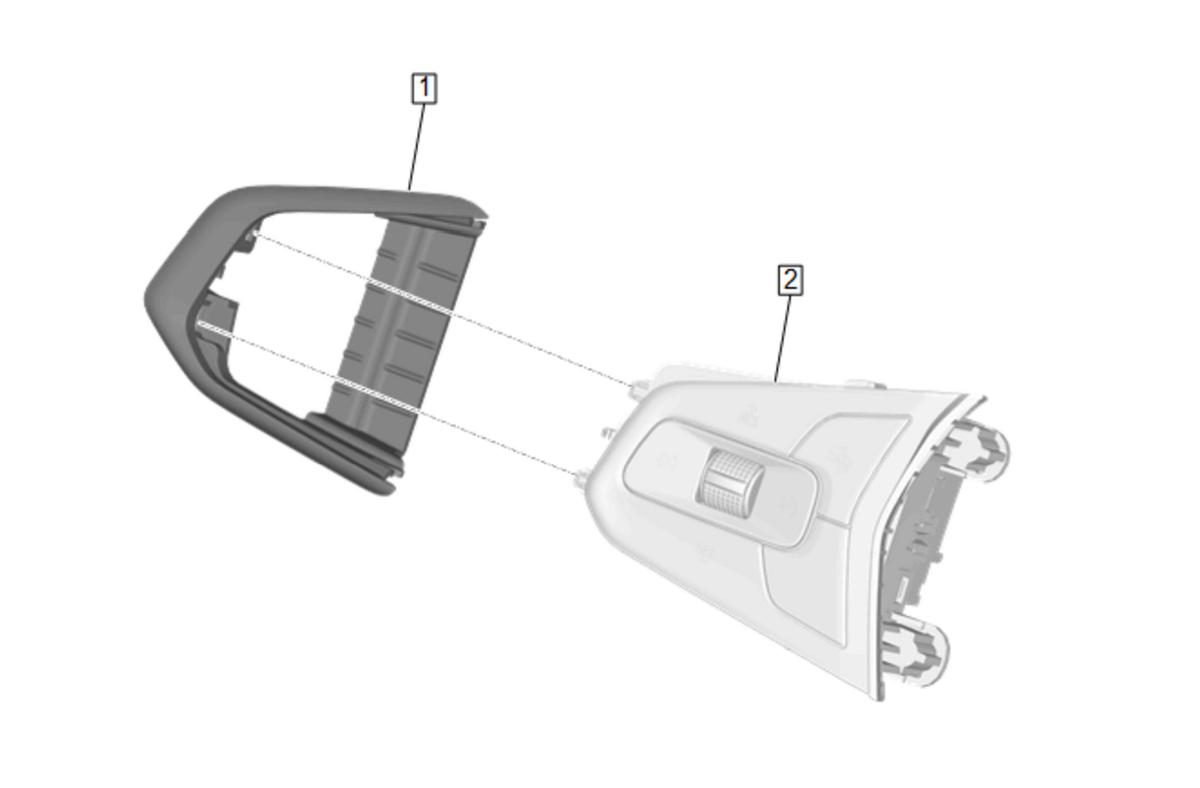

Steering Wheel Trim Spoke Cover Applique (1) @Cruise Control Switch (2) - Install
Courtesy of GENERAL MOTORS COMPANY

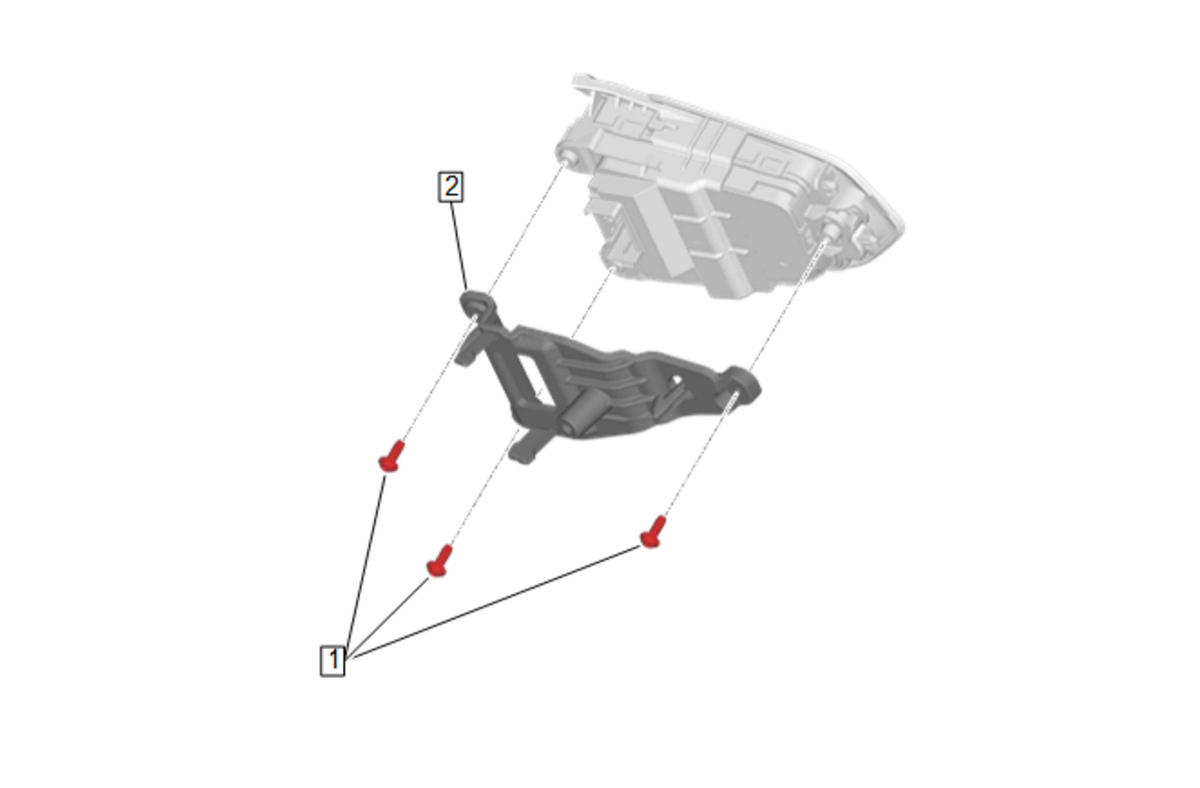

Radio Bracket (2) - Install

CAUTION:

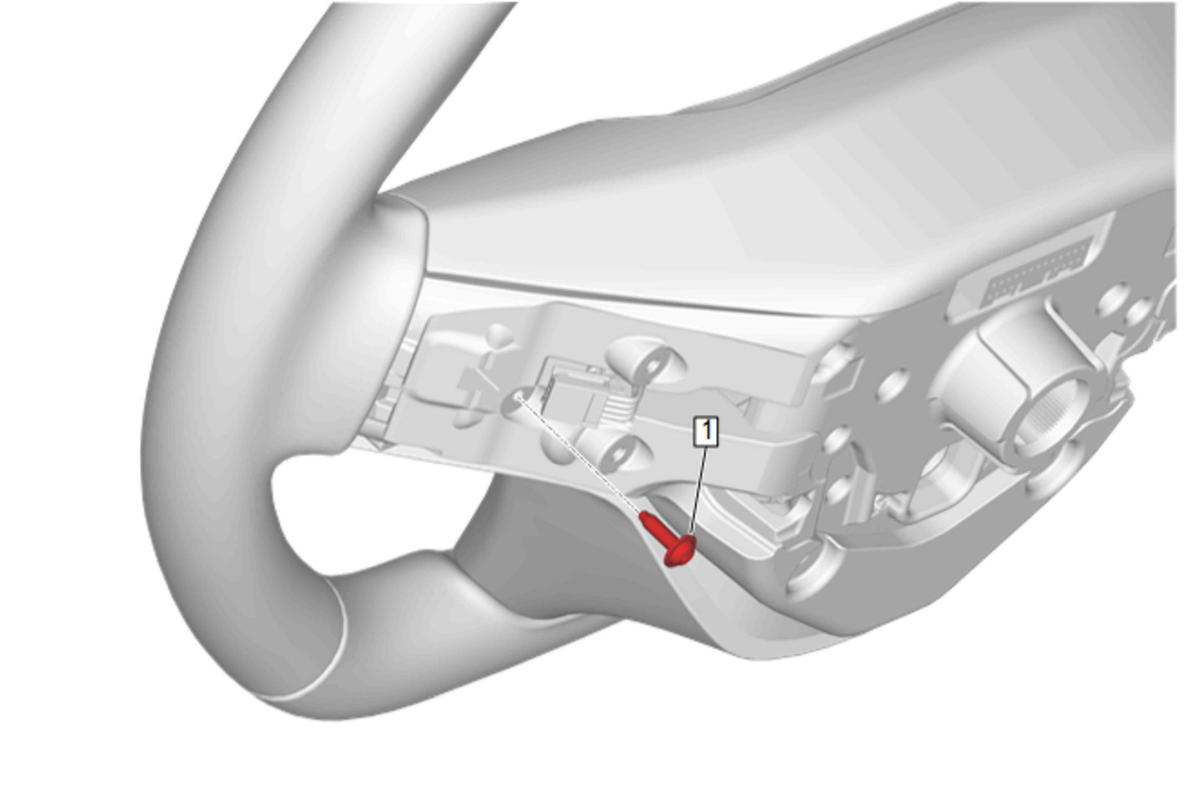

Steering Wheel Bolt (1) - Install and tighten [3x] 0.8 N.m (7 lb in)
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector (2).

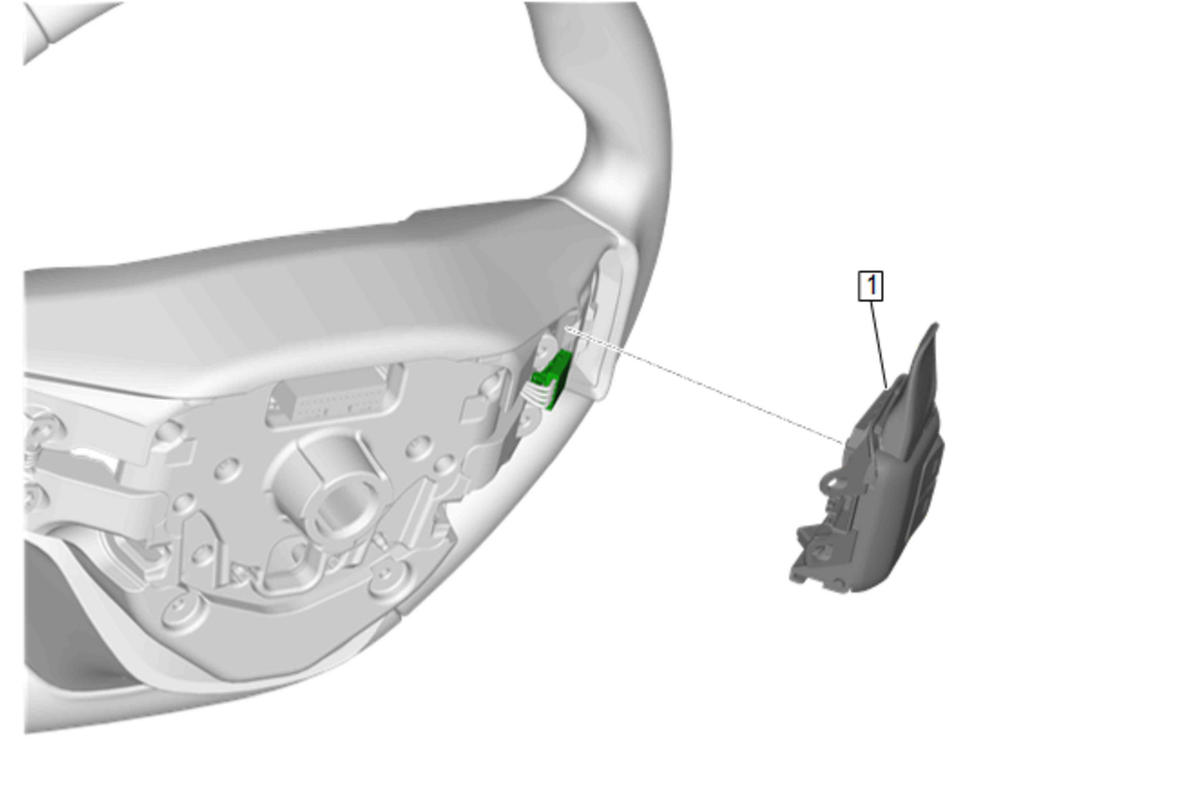

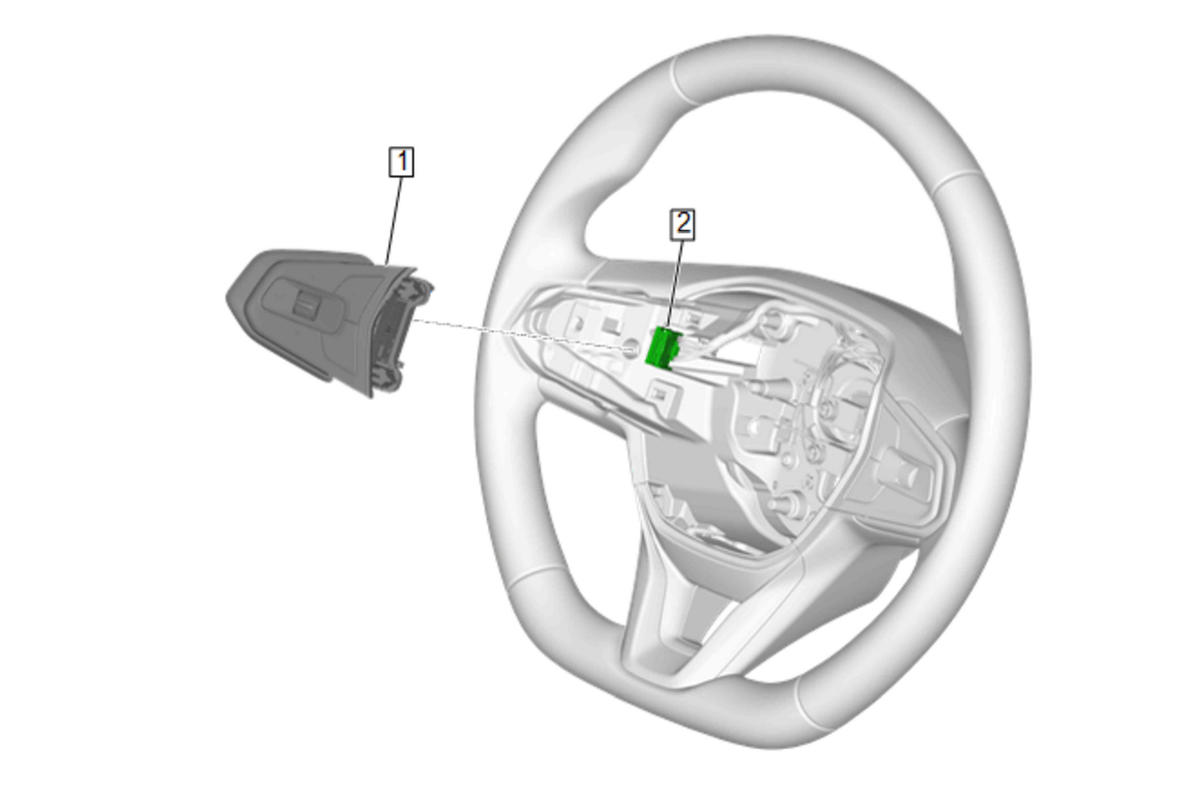

Cruise Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Bolt (1) - Install and tighten3.5 N.m (31 lb in)
Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Manual Shift Auxiliary Position Switch (1) - Install - Automatic Transmission Manual Shift Auxiliary Position Switch Replacement
