Removal Procedure

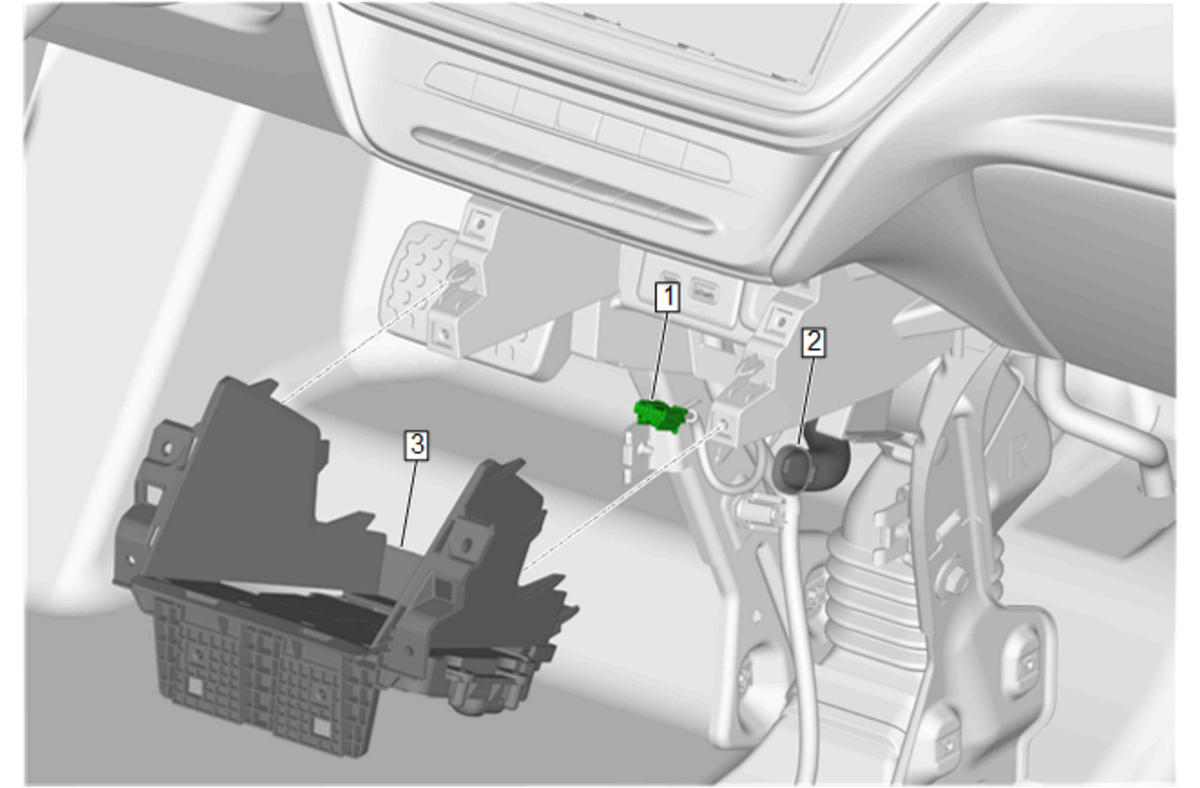

  1. GM5682365Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Stowage Tray (3) - Remove - Instrument Panel Stowage Tray Replacement

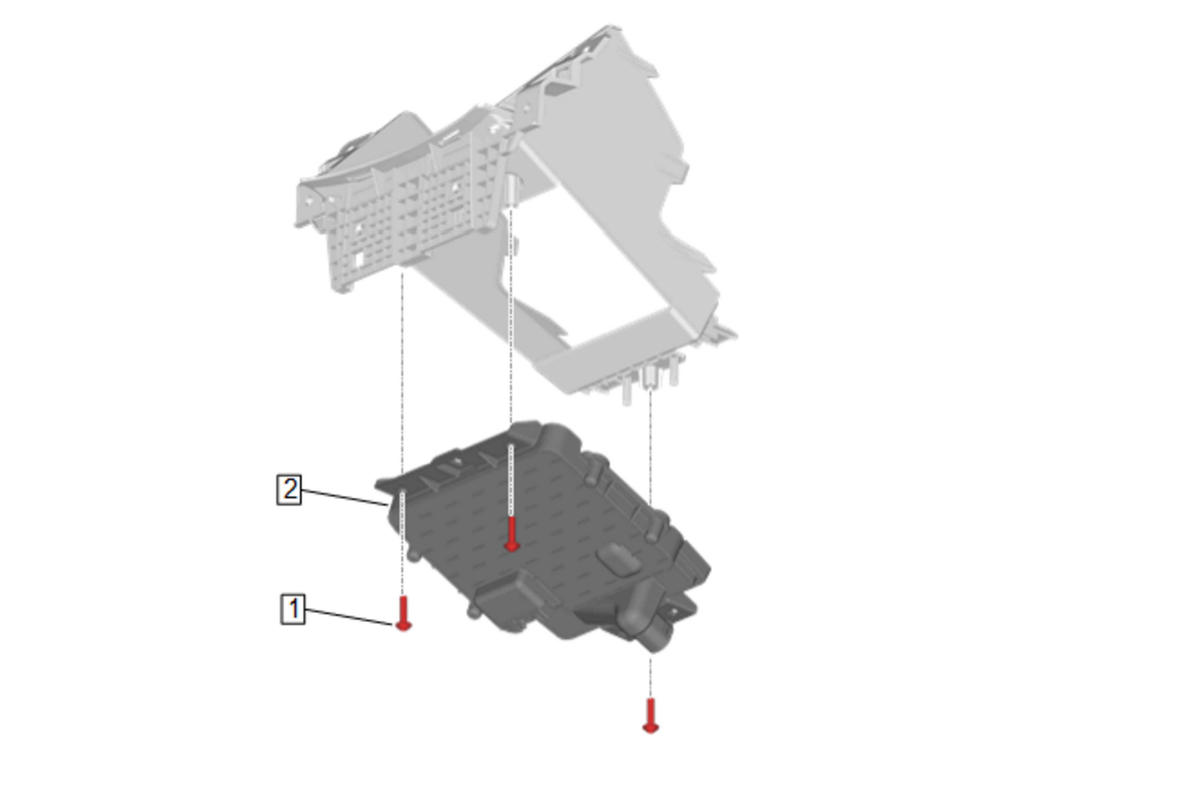

  2. GM5680360Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Bolt (1) - Remove [3x]

  3. Wireless Charging System Module Bracket (2) - Remove

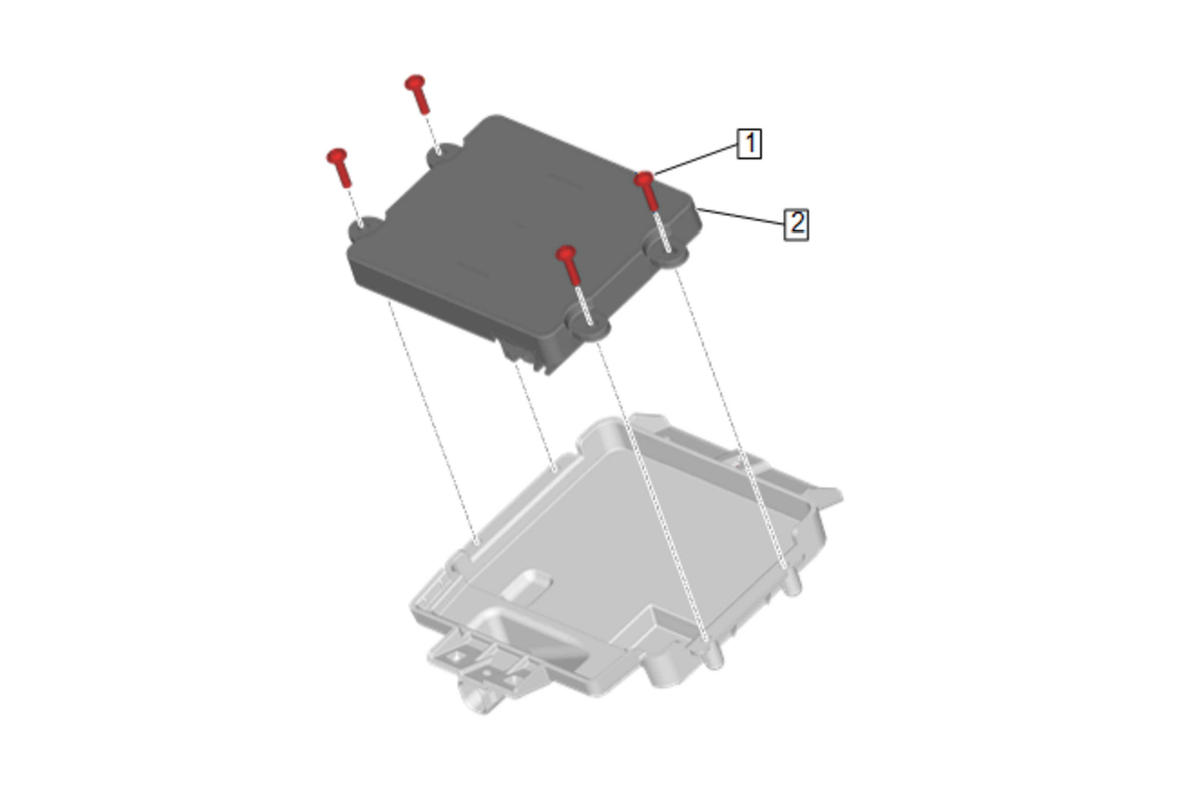

  4. GM5680365Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [4x]

  5. Wireless Charging System Module (2) - Remove
