Installation Procedure

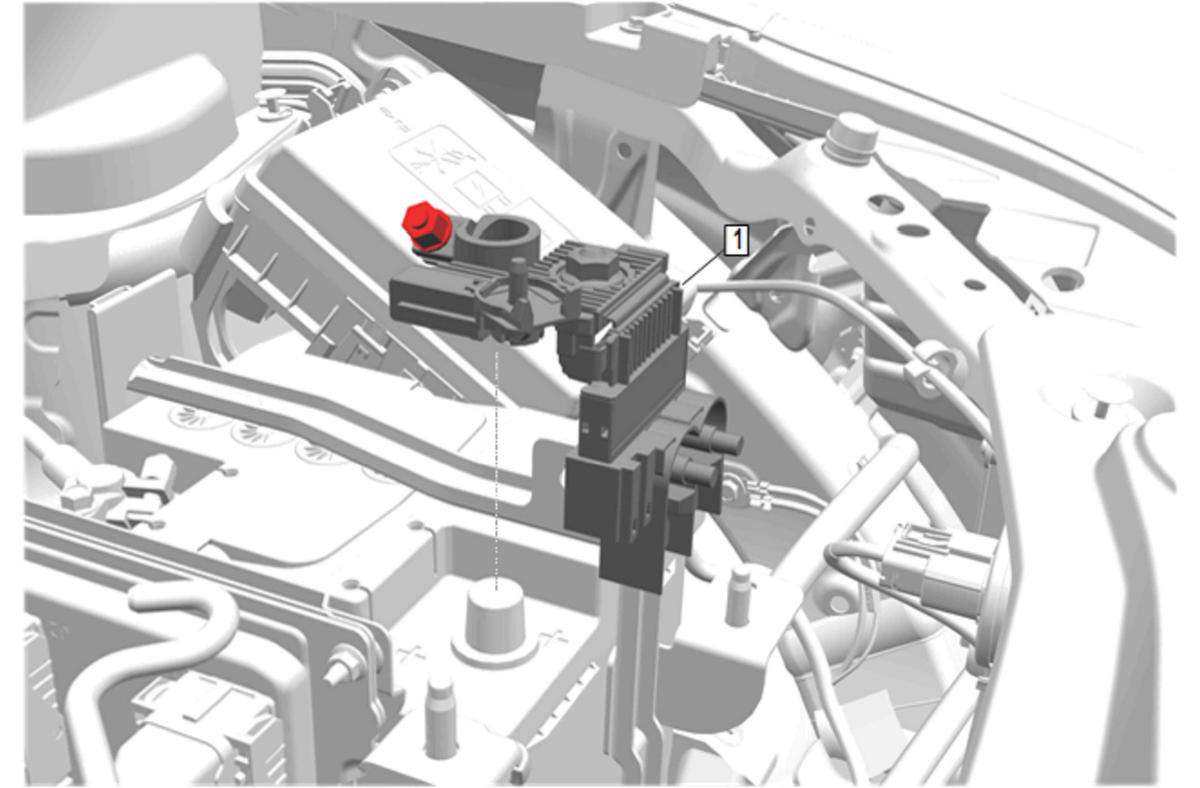

  1. GM5682622Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Fuse Block (1) - Install

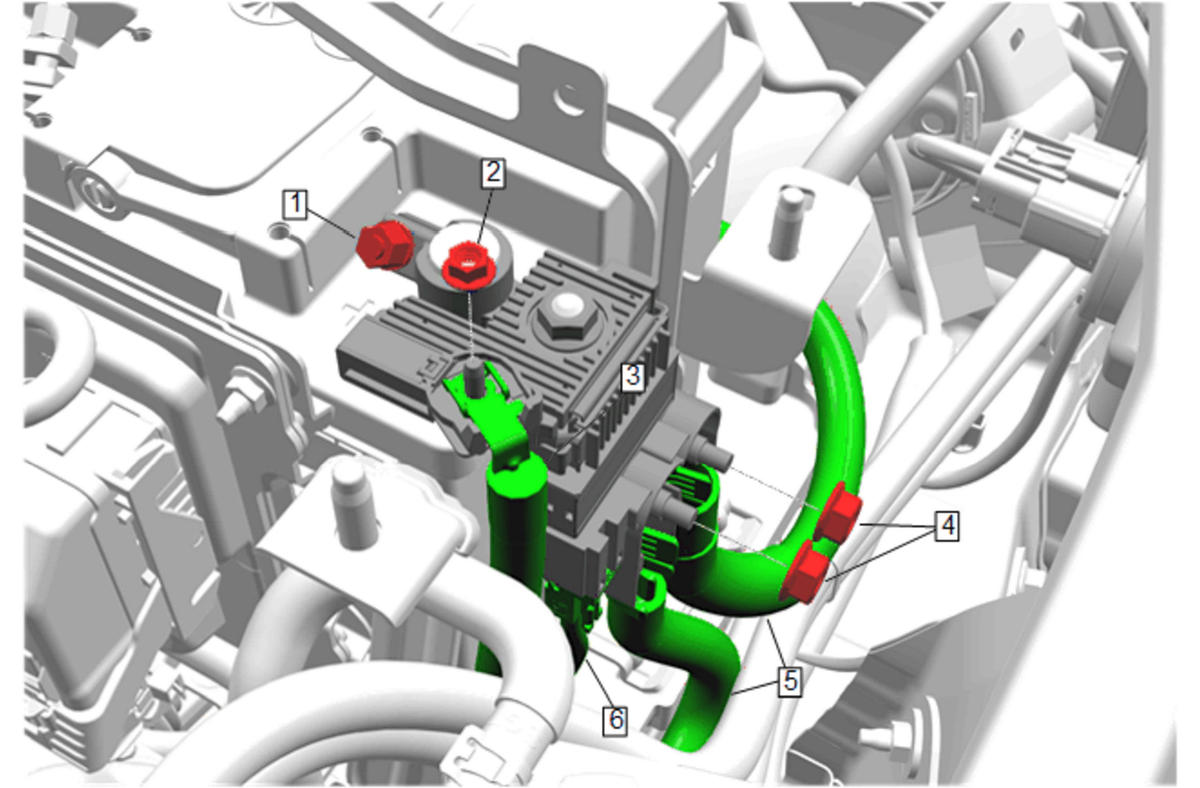

  2. GM5682621Courtesy of GENERAL MOTORS COMPANY

    Body Wiring Harness Connector (6) - Connect

  3. Battery Positive Cable (5) - Install [2x]
    4. CAUTION:

    Refer to Fastener Caution .

  4. Battery Distribution Fuse Block Nut (4) - Install and tighten [2x] 5 N.m (44 lb in)
  5. Body Wiring Harness (3) - Install
  6. Body Wiring Harness Nut (2) - Install and tighten 5 N.m (44 lb in)
  7. Battery Positive Cable Clamp Fastener (1) - Install and tighten - Battery Replacement

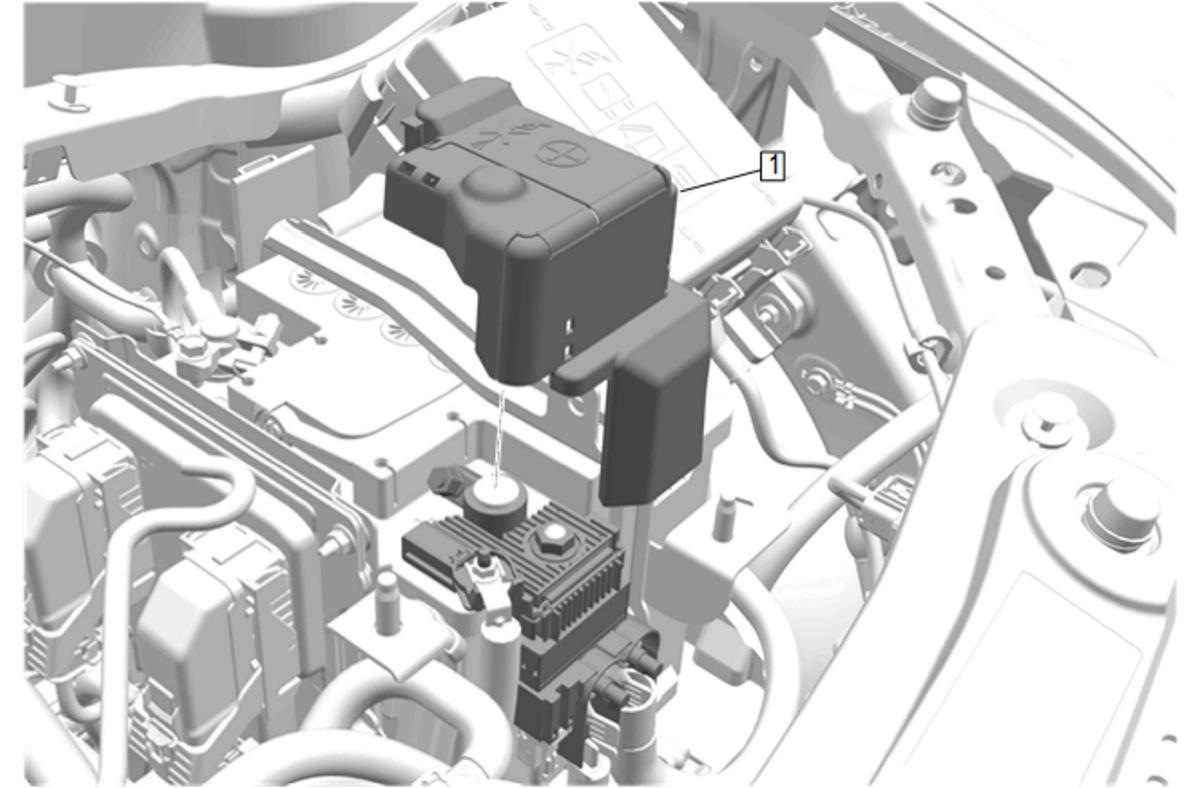

  8. GM5682620Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Terminal Cover (1) - Install

  9. GM5512499Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Support (2) - Install

  10. Battery Tray Support Nut (1) - Install and tighten - Battery Replacement
  11. GM5512497Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Reinforcement (3) - Install

  12. Battery Tray Reinforcement Bolt (2) - Install and tighten - Battery Replacement
  13. Battery Tray Reinforcement Nut (1) - Install and tighten - Battery Replacement
  14. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
