Instrument Panel Center Accessory Function Switch Replacement

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

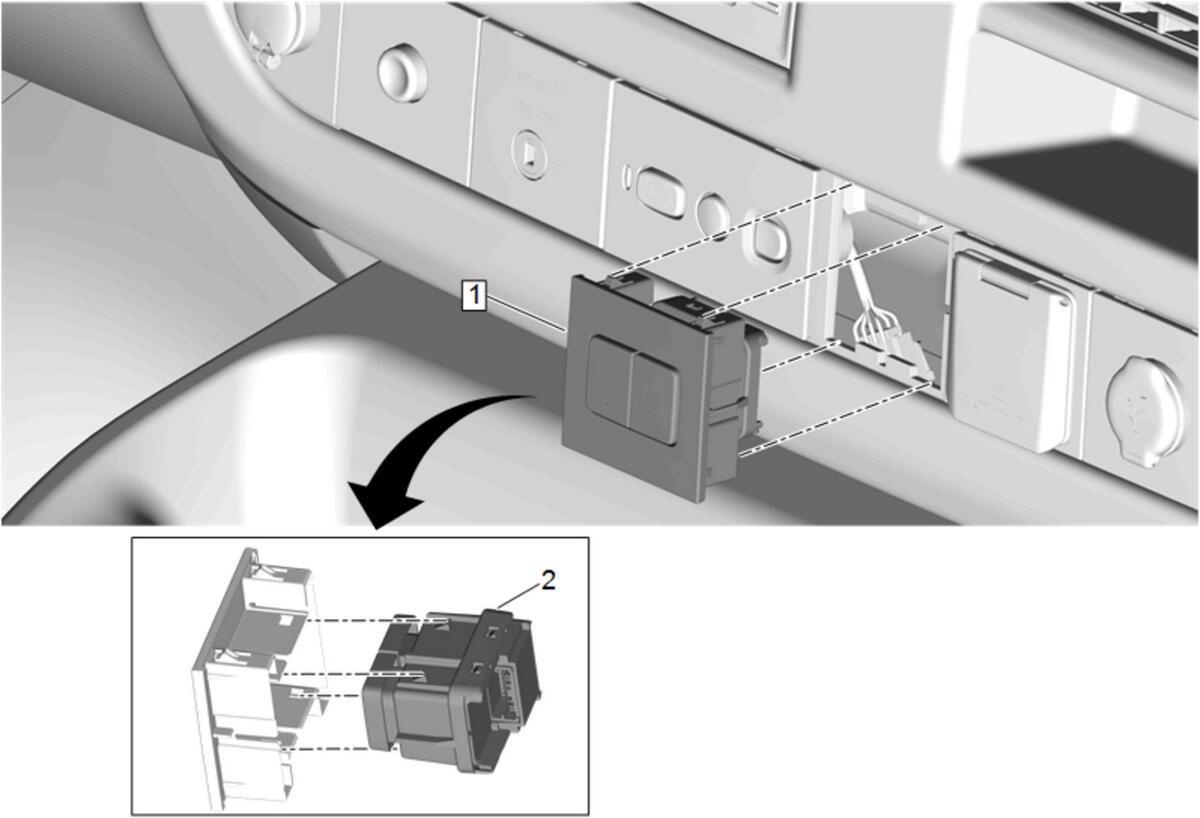

Callout	Component Name
1	Instrument Panel Outer Trim Cover
2	Instrument Panel Center Accessory Function Switch Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Instrument Panel Outer Trim Cover

Instrument Panel Center Accessory Function Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
