Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

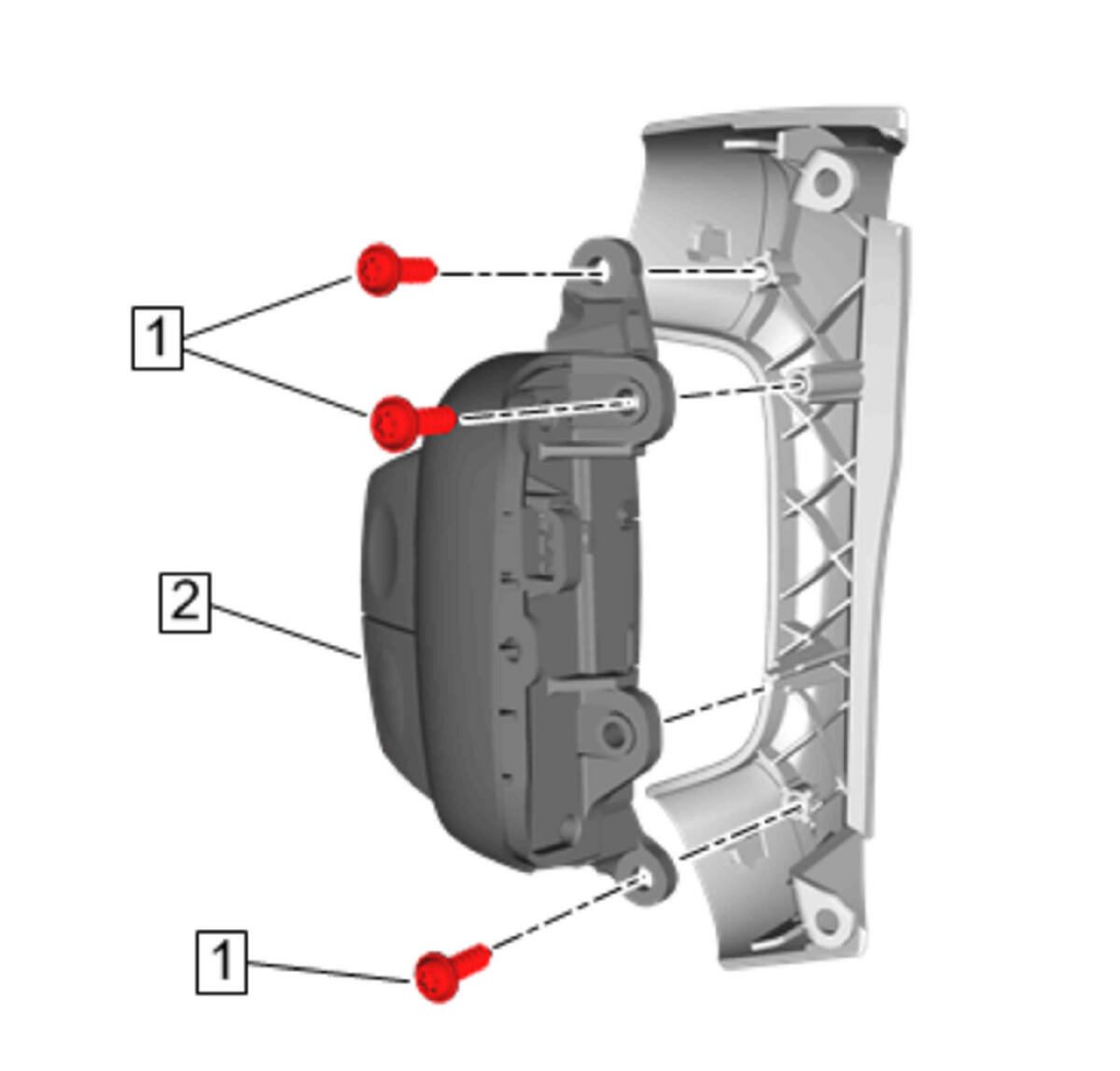

Radio Control Switch (2) - Install
- Radio Control Switch Bolt (1) - Install and tighten [3x] 1.0 N.m (9.0 lb in)

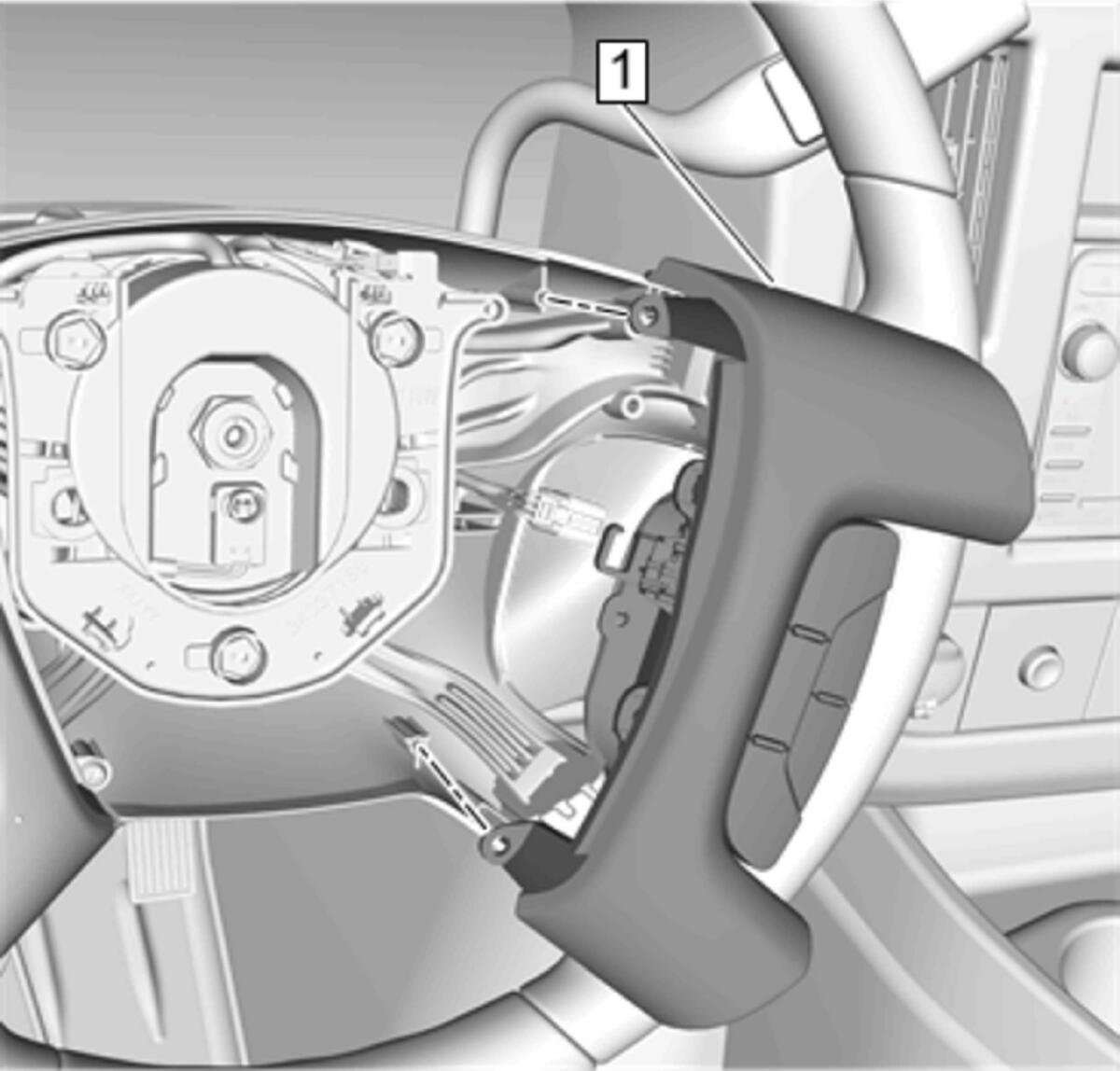

Steering Wheel Spoke Lower Cover- Right Side (1) - Install - Steering Wheel Spoke Lower Cover Replacement - Right Side
- Airbag Steering Wheel Module - Install - Airbag Steering Wheel Module Replacement
CAUTION:
Refer to Fastener Caution .
