Windshield Wiper System Module Replacement

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

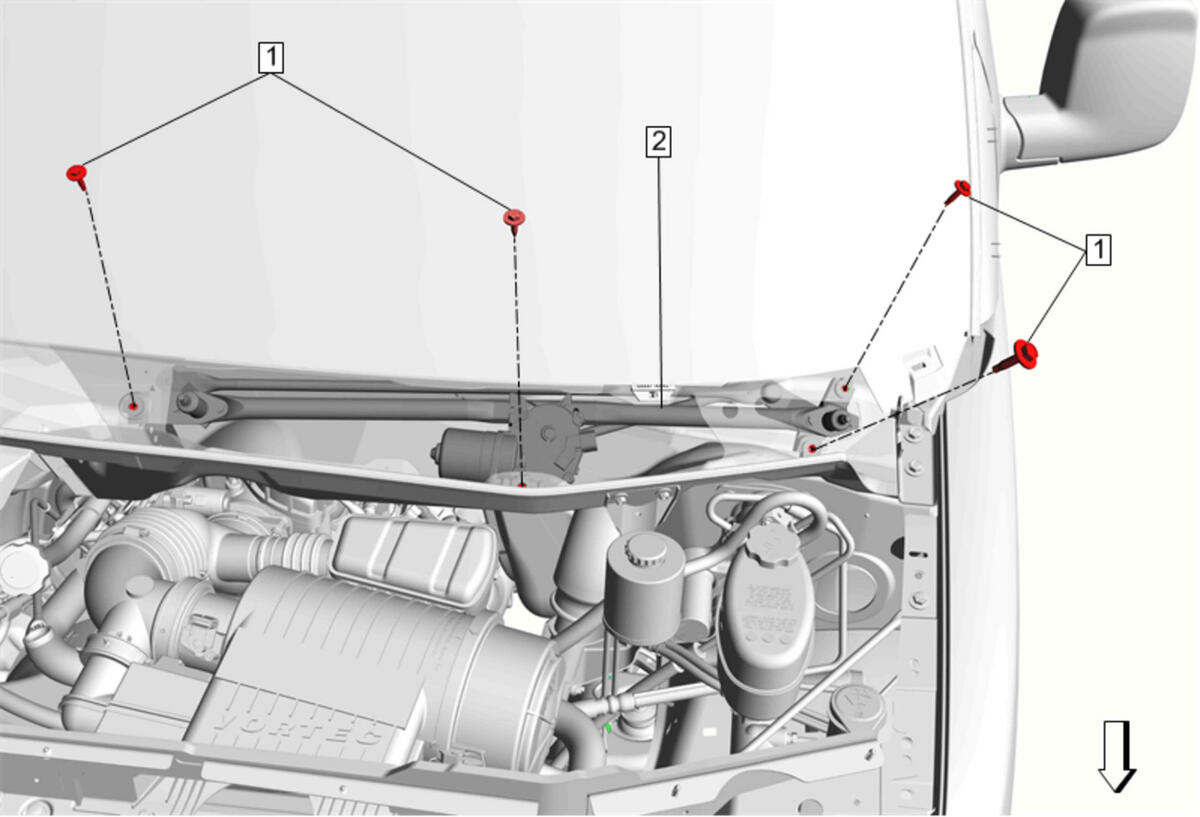

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel- Left Side - Remove - Air Inlet Grille Panel Replacement (Left Side)
1	Windshield Wiper System Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper System Module Procedure Disconnect the electrical connector. Remove the windshield wiper system module from the plenum brackets. NOTE: The windshield wiper transmission and motor are serviced as an assembly.

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel- Left Side - Remove - Air Inlet Grille Panel Replacement (Left Side)

Windshield Wiper System Module Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Windshield Wiper System Module

Procedure

Disconnect the electrical connector.
Remove the windshield wiper system module from the plenum brackets.

NOTE:

The windshield wiper transmission and motor are serviced as an assembly.
