Air Cleaner Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

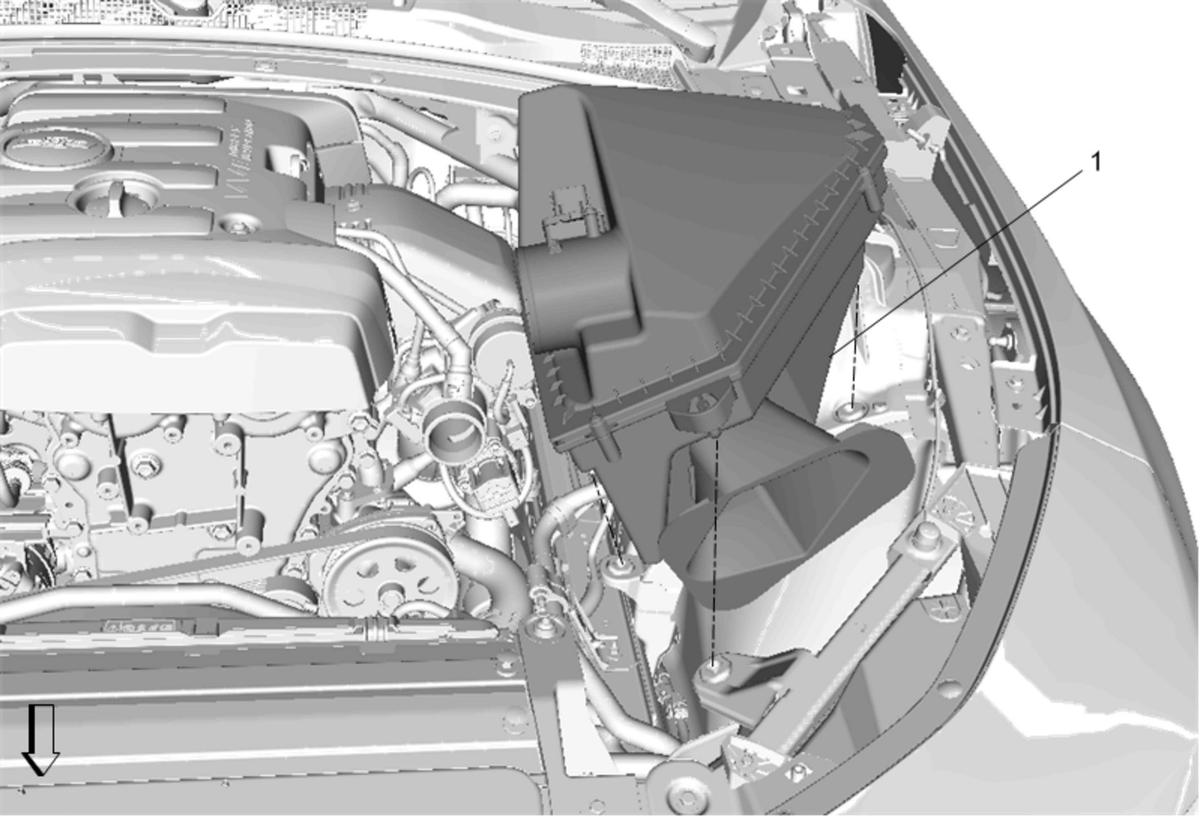

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement (Non-Tamperproof) , or Air Cleaner Outlet Duct Replacement (Tamperproof) Disconnect the electrical connector.
1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Air Cleaner Assembly

Procedure
