Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

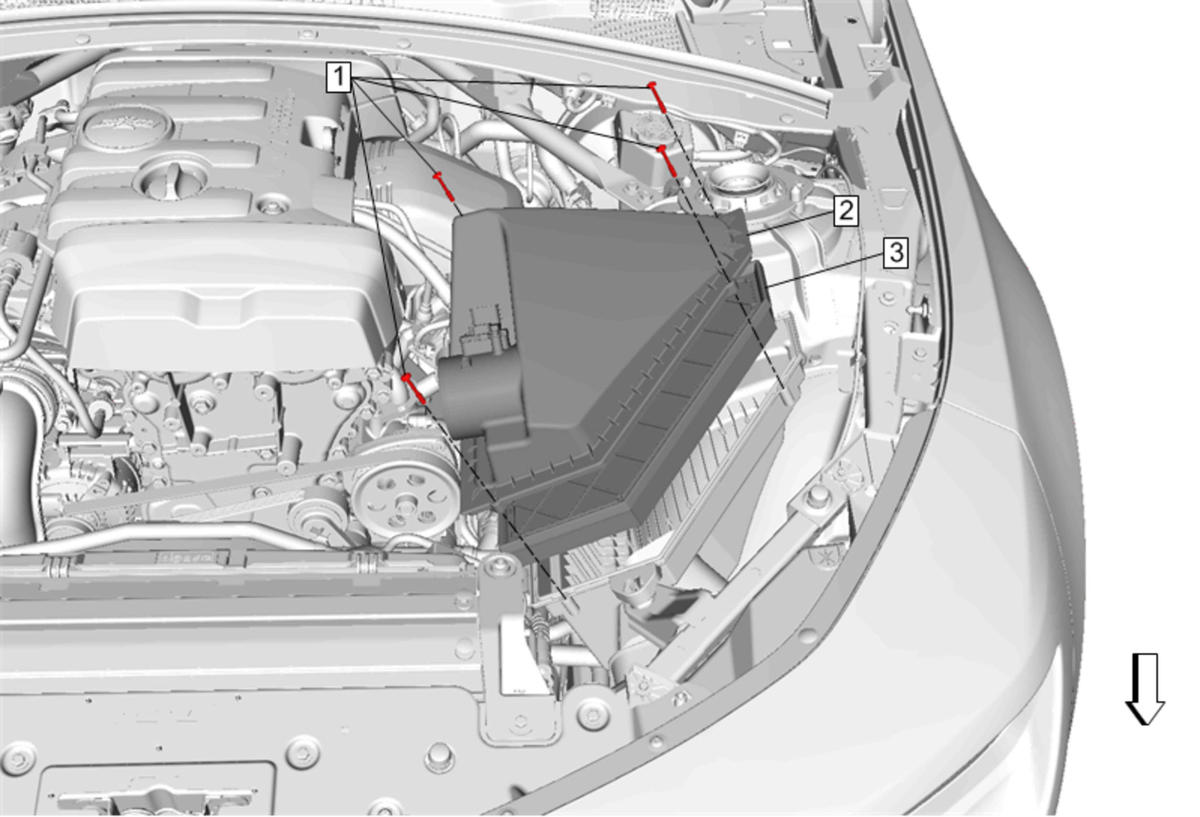

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement (Non-Tamperproof) , or Air Cleaner Outlet Duct Replacement (Tamperproof) Disconnect the electrical connector.
1	Air Cleaner Upper Housing Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element Procedure Reset the air filter life system. GM Air Filter Life System Resetting (Without Scan Tool) , or GM Air Filter Life System Resetting (With Scan Tool)
