Fuel Level Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

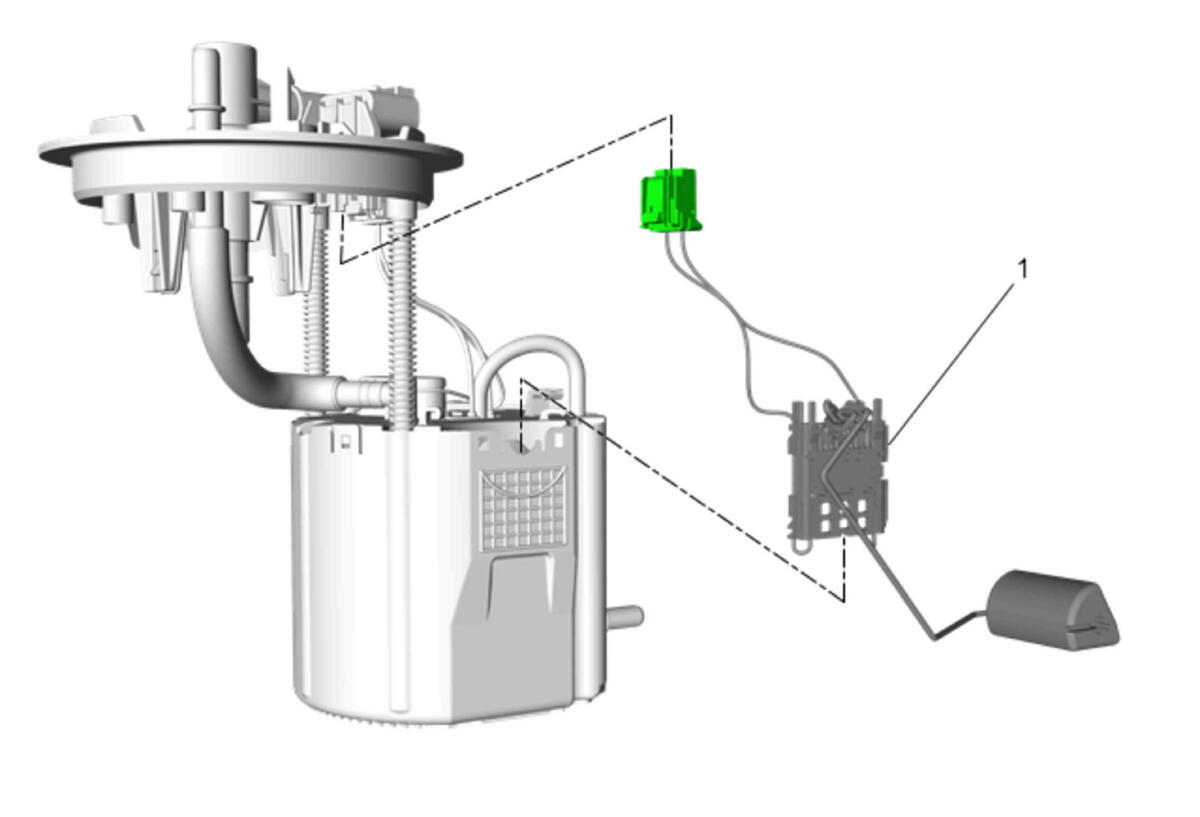

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Fuel Pump Module Replacement .
1	Fuel Level Sensor Procedure  Release the fuel level sensor tabs and disconnect the electrical connector.
