Fuel Pump Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

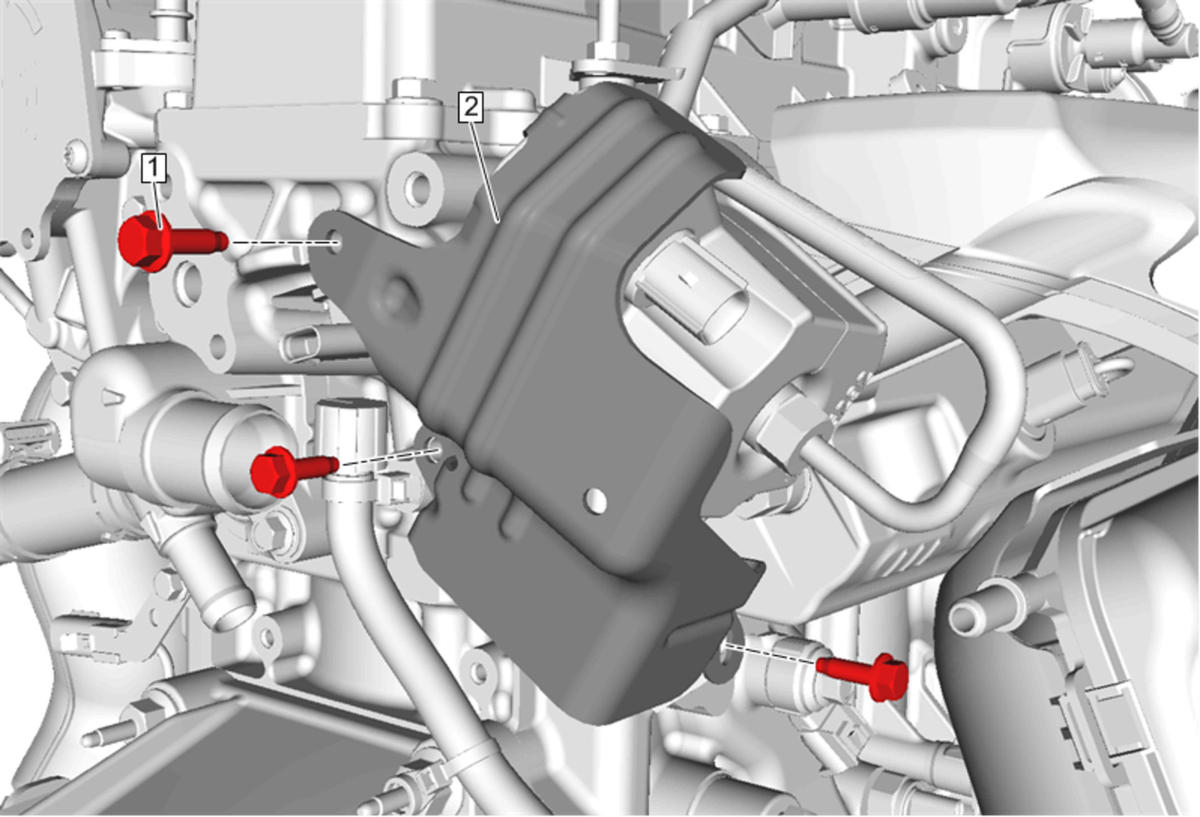

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Fuel Pump Insulator - Outer - Remove - Fuel Pump Insulator Replacement (Outer) (if equipped) Disconnect the radiator inlet pipe from the water outlet. Radiator Inlet Pipe Replacement (LTG)
1	Fuel Pump Cover Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pump Cover Procedure Disconnect the electrical wiring harness connector from the fuel pump.

Callout

Component Name

Preliminary Procedures

Fuel Pump Insulator - Outer - Remove - Fuel Pump Insulator Replacement (Outer) (if equipped)
Disconnect the radiator inlet pipe from the water outlet. Radiator Inlet Pipe Replacement (LTG)

Fuel Pump Cover Fastener [3x]

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Pump Cover
Procedure
Disconnect the electrical wiring harness connector from the fuel pump.
