Installation Procedure

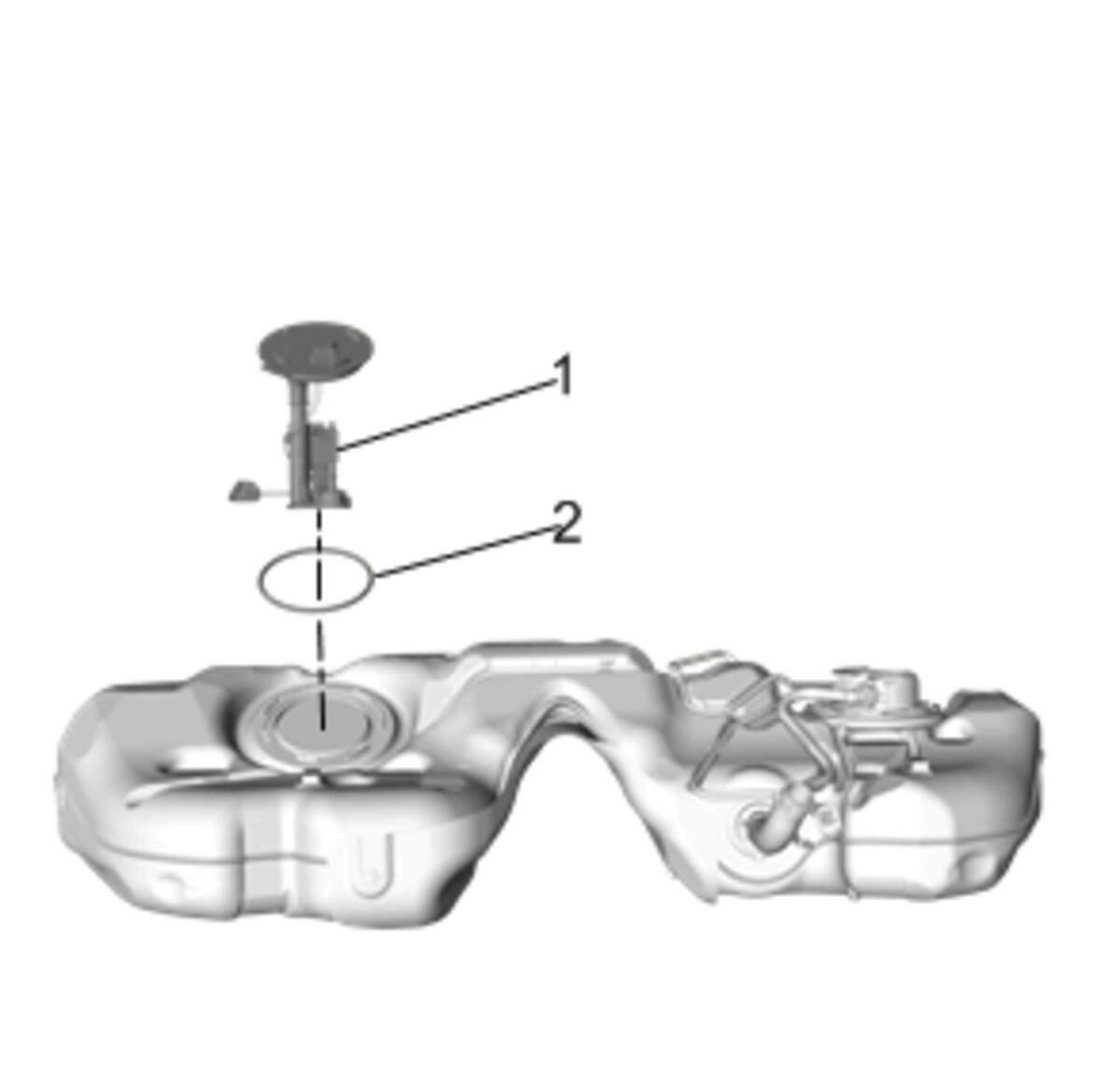

  1. GM4179470Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install a NEW seal.

  2. Fuel Sender (1) - Install

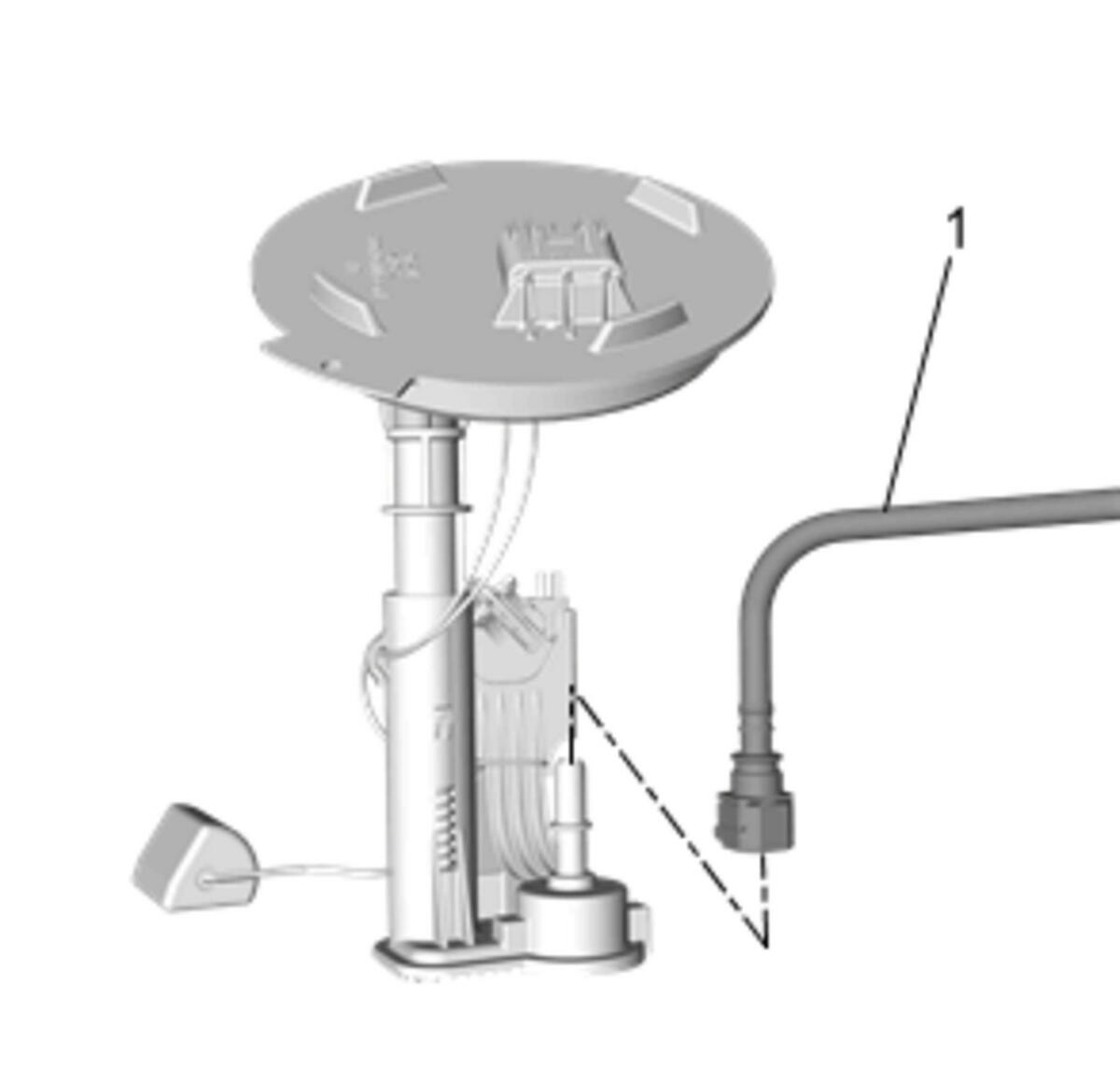

  3. GM4179469Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

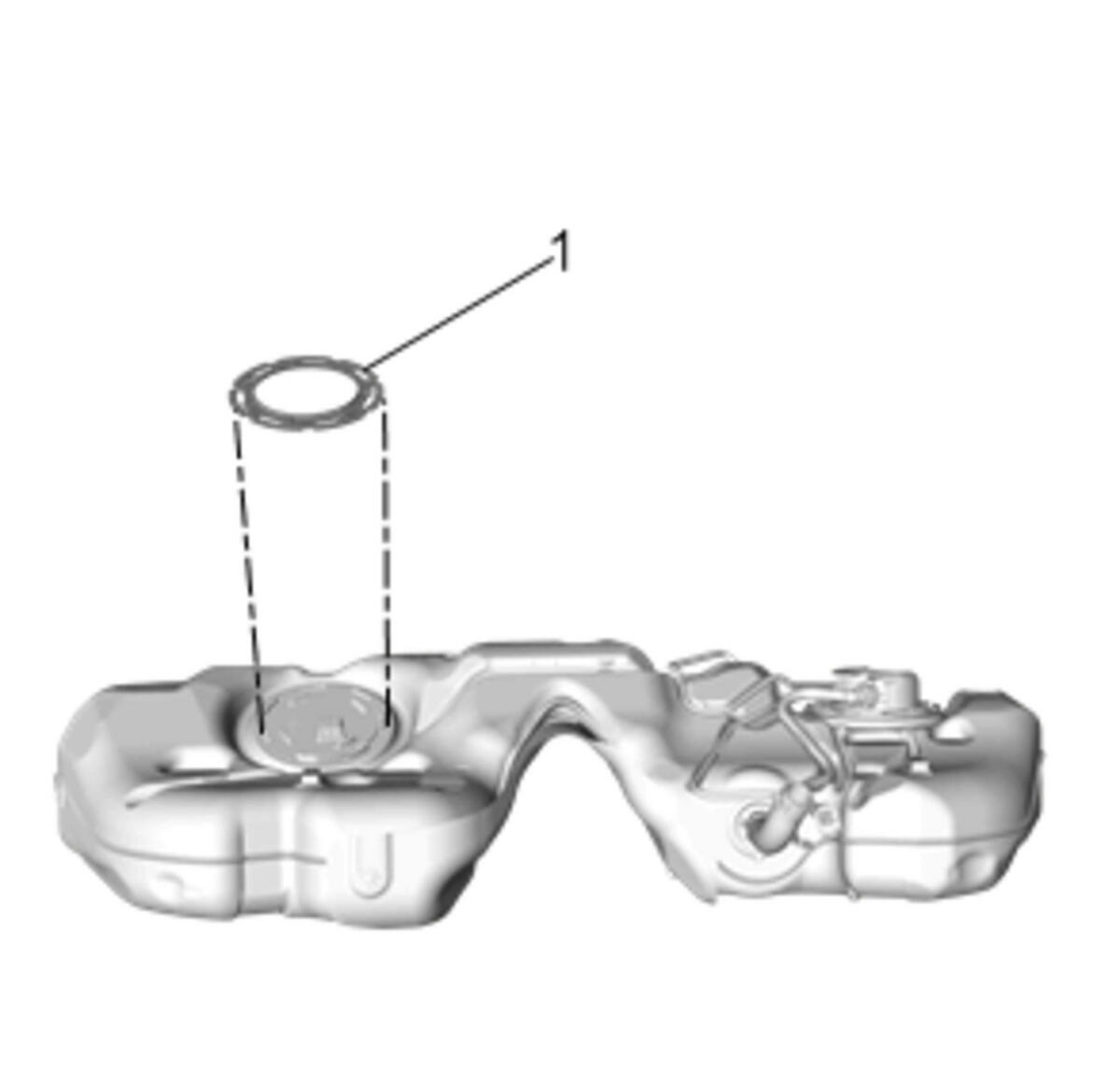

  4. GM4179466Courtesy of GENERAL MOTORS COMPANY

    Use the CH 45722  wrench by turning clockwise and install the lock ring (1).

  5. Connect the electrical connector.
  6. Fuel Tank Replacement  - Install
