Single Use Fasteners and Components

• Catalytic Converter Gasket@Exhaust Muffler Assembly
• Rear Suspension Cradle Front Bolt

Courtesy of GENERAL MOTORS COMPANY

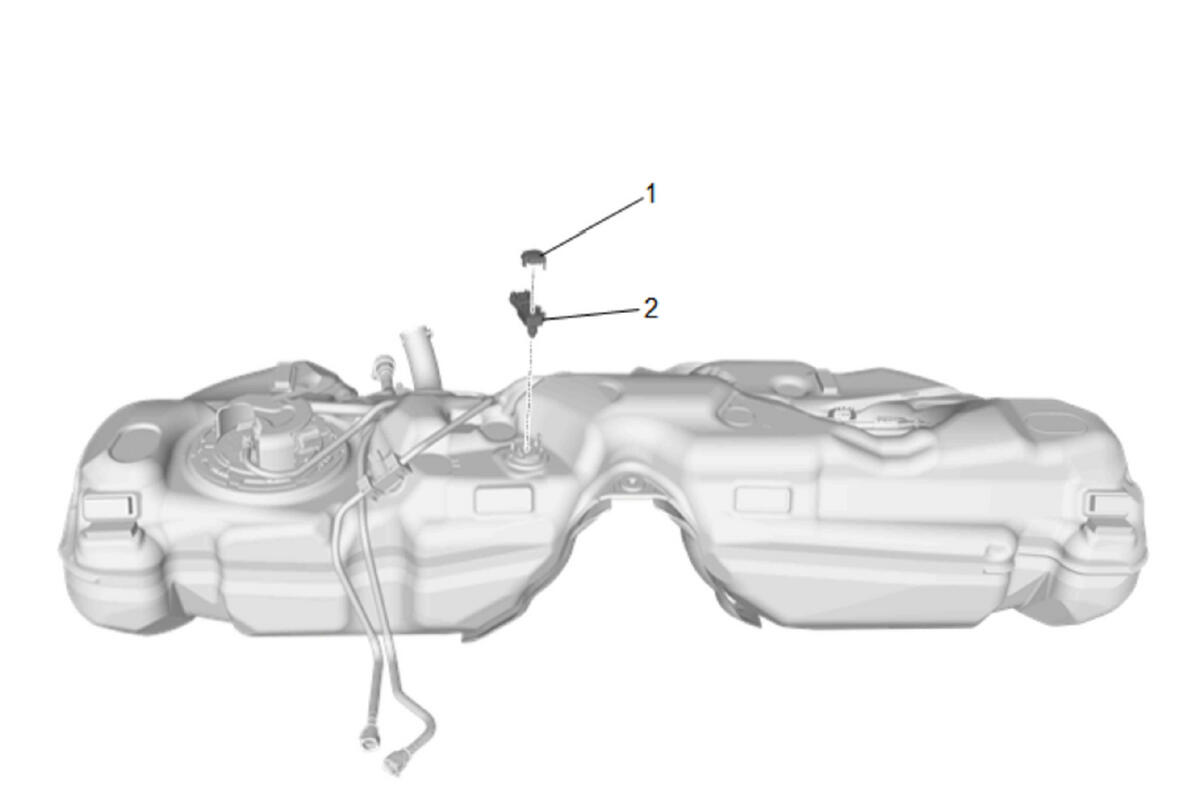

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement
1	Fuel Tank Pressure Sensor Cover
2	Fuel Tank Pressure Sensor Procedure  Disconnect the electrical connector.
