Fuel Tank Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

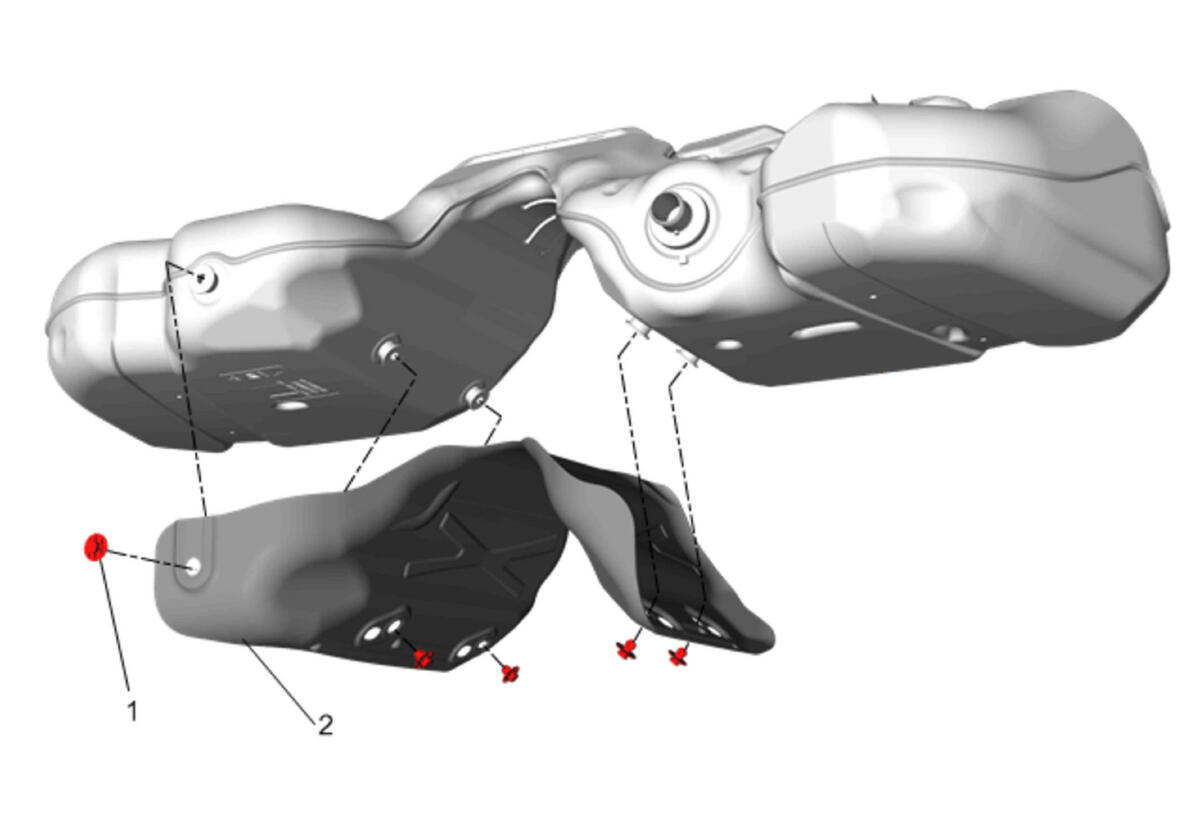

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Two-Piece Propeller Shaft Replacement (Coupe with LTG and M13) , or Two-Piece Propeller Shaft Replacement (Convertible with LTG and M13) , or Two-Piece Propeller Shaft Replacement (Coupe with LTG and M5T) , or Two-Piece Propeller Shaft Replacement (Convertible with LTG and M5T) .
1	Fuel Tank Shield Retainer [5x] CAUTION: Refer to Fastener Caution .
2	Fuel Tank Shield
