Intake Air Baffle Replacement

Courtesy of GENERAL MOTORS COMPANY

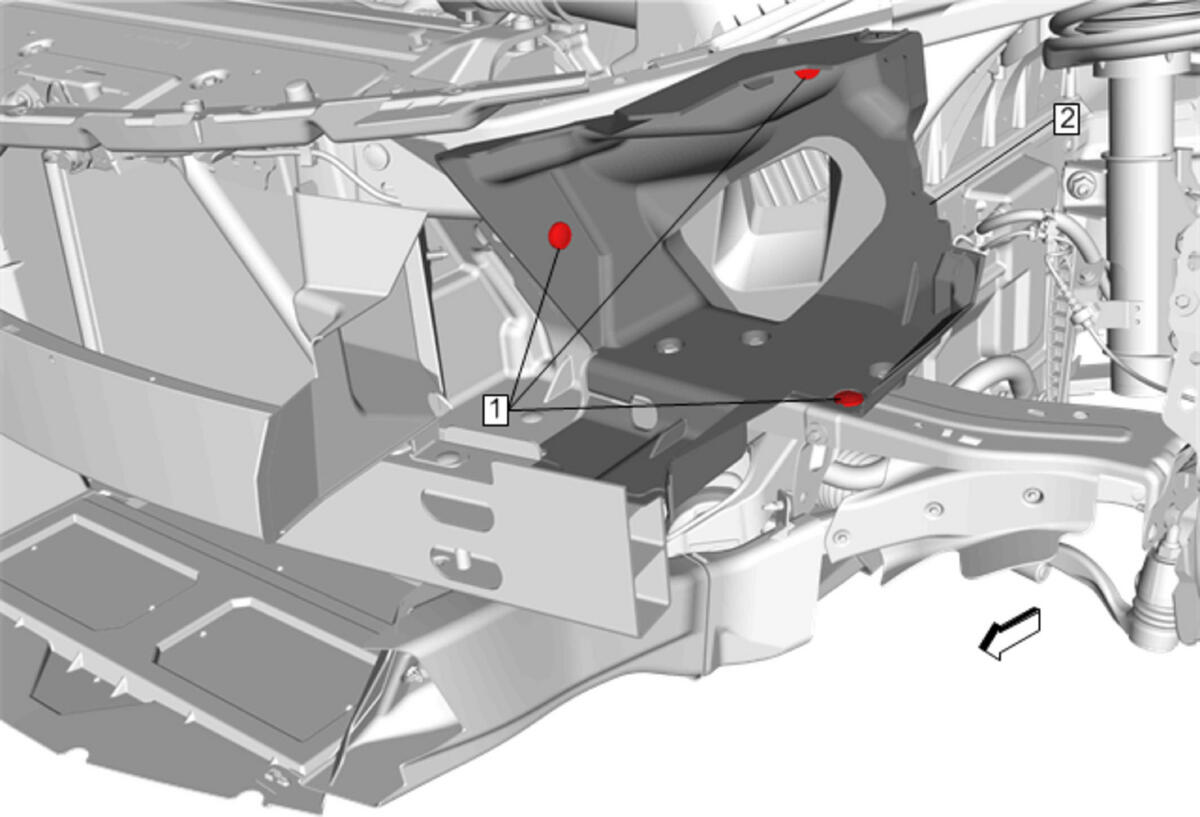

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Headlamp Replacement (HID, ZL1) , or Front Headlamp Replacement (LED, Uplevel) , or Front Headlamp Replacement (LED, Base)
1	Intake Air Baffle Retainer [3x] CAUTION: Refer to Fastener Caution .
2	Intake Air Baffle Procedure  Remove the wiring harness retainer from the intake air baffle.
