Intake Air Splash Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

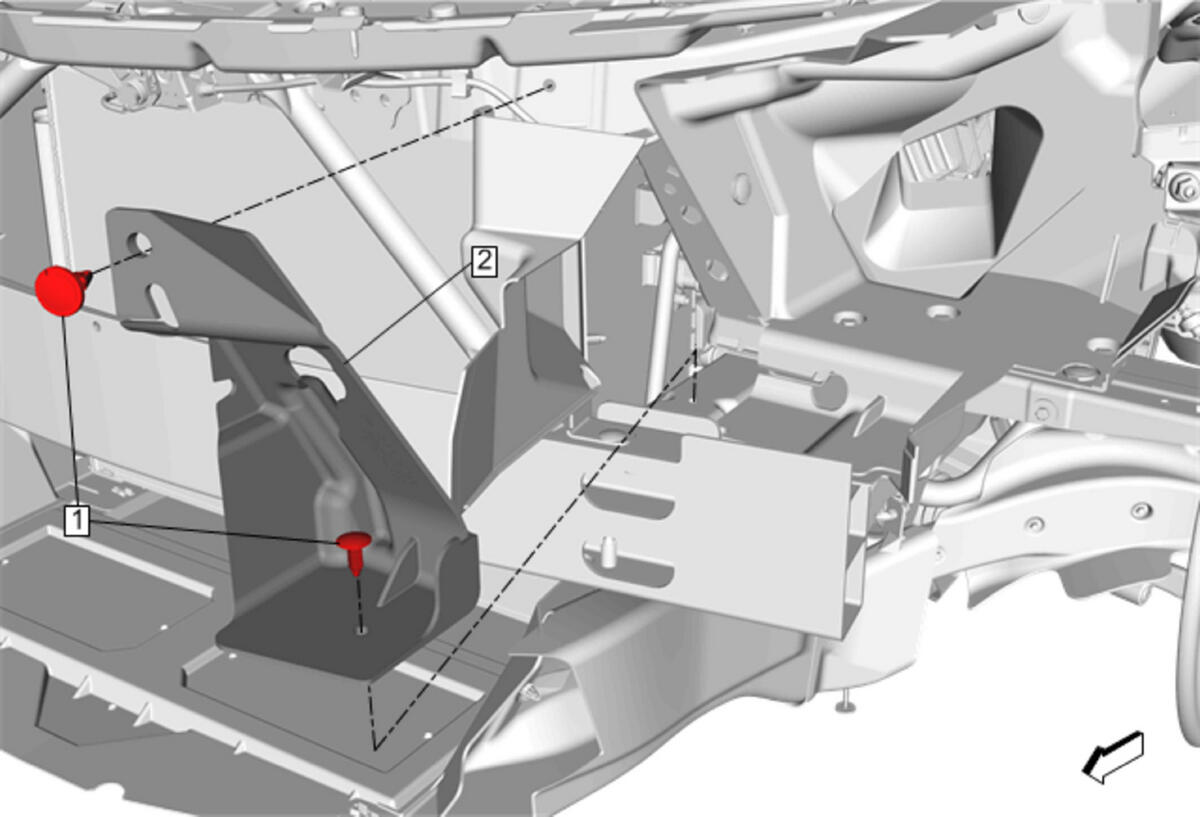

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Headlamp Replacement (HID, ZL1) , or Front Headlamp Replacement (LED, Uplevel) , or Front Headlamp Replacement (LED, Base) Remove ground wire bolt and reposition ground wire and harness.
1	Intake Air Splash Shield Retainer [2x] CAUTION: Refer to Fastener Caution .
2	Intake Air Splash Shield

Callout

Component Name

Preliminary Procedures

Intake Air Splash Shield Retainer [2x]

CAUTION:

Intake Air Splash Shield
