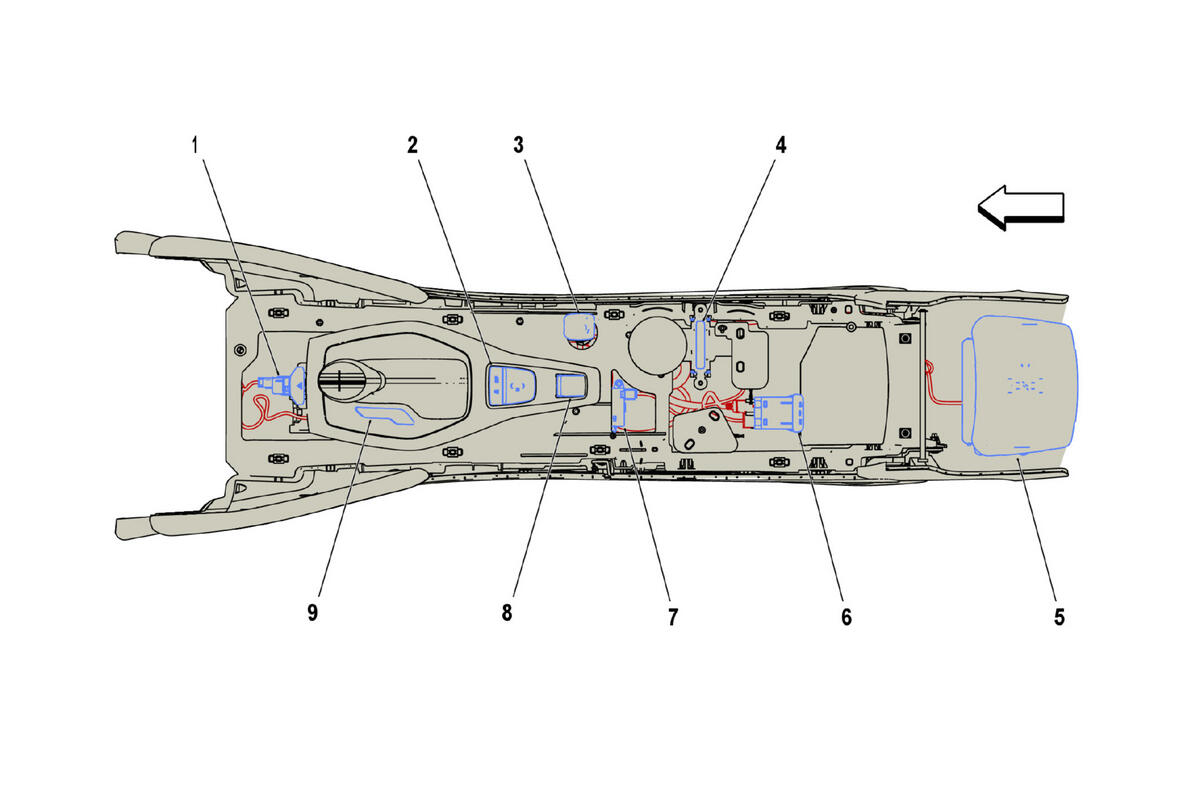

Center Console Components
NOTE:
Callout Items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 2. S86 Vehicle Stability Control Switch S86 Vehicle Stability Control Switch |
| 3. X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console |
| 4. E1AC Accent Lamp - Center Console Cupholder (C70) E1AC Accent Lamp - Center Console Cupholder |
| 5. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module |
| 6. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 , or X83 Auxiliary Audio Input X2 |
| 7. K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 8. S91 Park Brake Control Switch S91 Park Brake Control Switch |
| 9. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator |
