Fuel Feed Front Hose Replacement

Courtesy of GENERAL MOTORS COMPANY

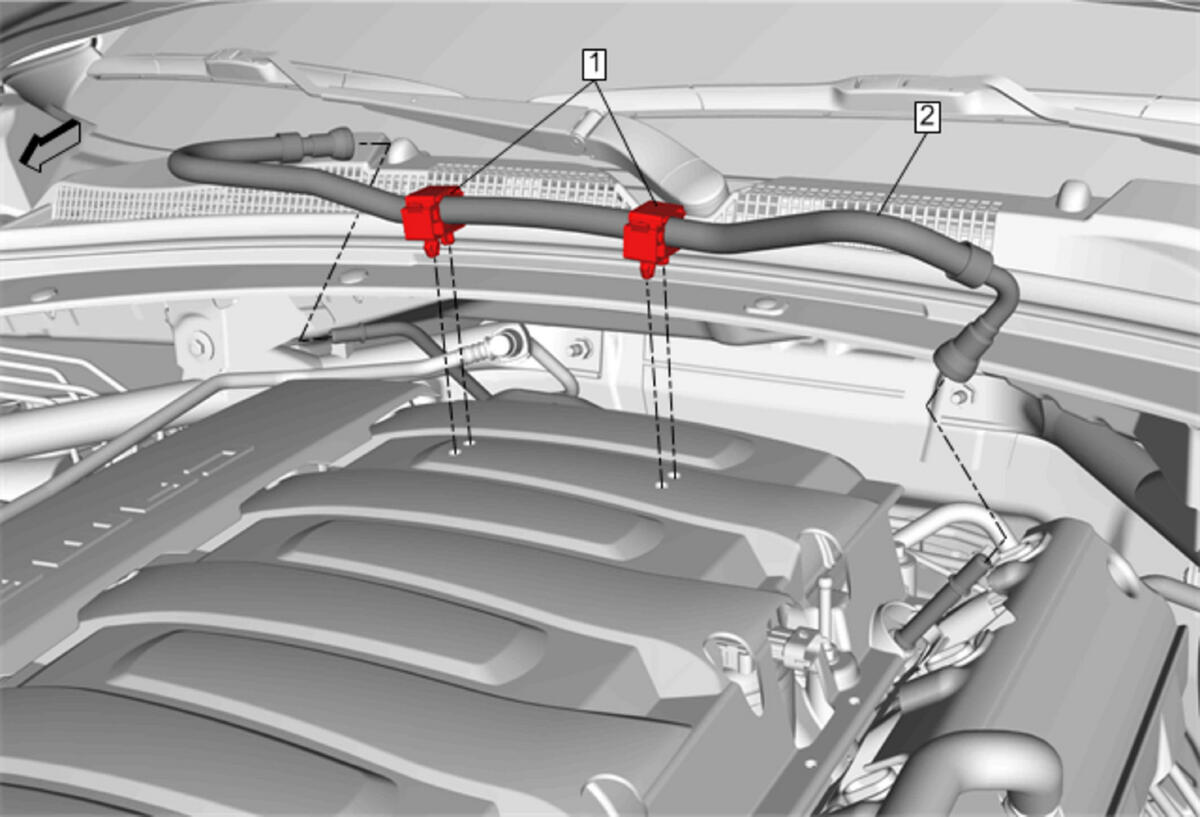

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Relieve the fuel system pressure. Fuel Pressure Relief Remove the left intake manifold cover. Intake Manifold Cover Replacement (Left) , or Intake Manifold Cover Replacement (Right)
1	Fuel Feed Hose Clip [2x] Procedure Remove the fuel feed hose clips from the upper intake manifold cover.
2	Fuel Feed Front Hose Procedure Fuel Feed Front Hose @ Fuel Feed Pipe - Disconnect - Metal Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Feed Hose Clip [2x]
Procedure
Remove the fuel feed hose clips from the upper intake manifold cover.

Fuel Feed Front Hose
Procedure
Fuel Feed Front Hose @ Fuel Feed Pipe - Disconnect - Metal Collar Quick Connect Fitting Service
